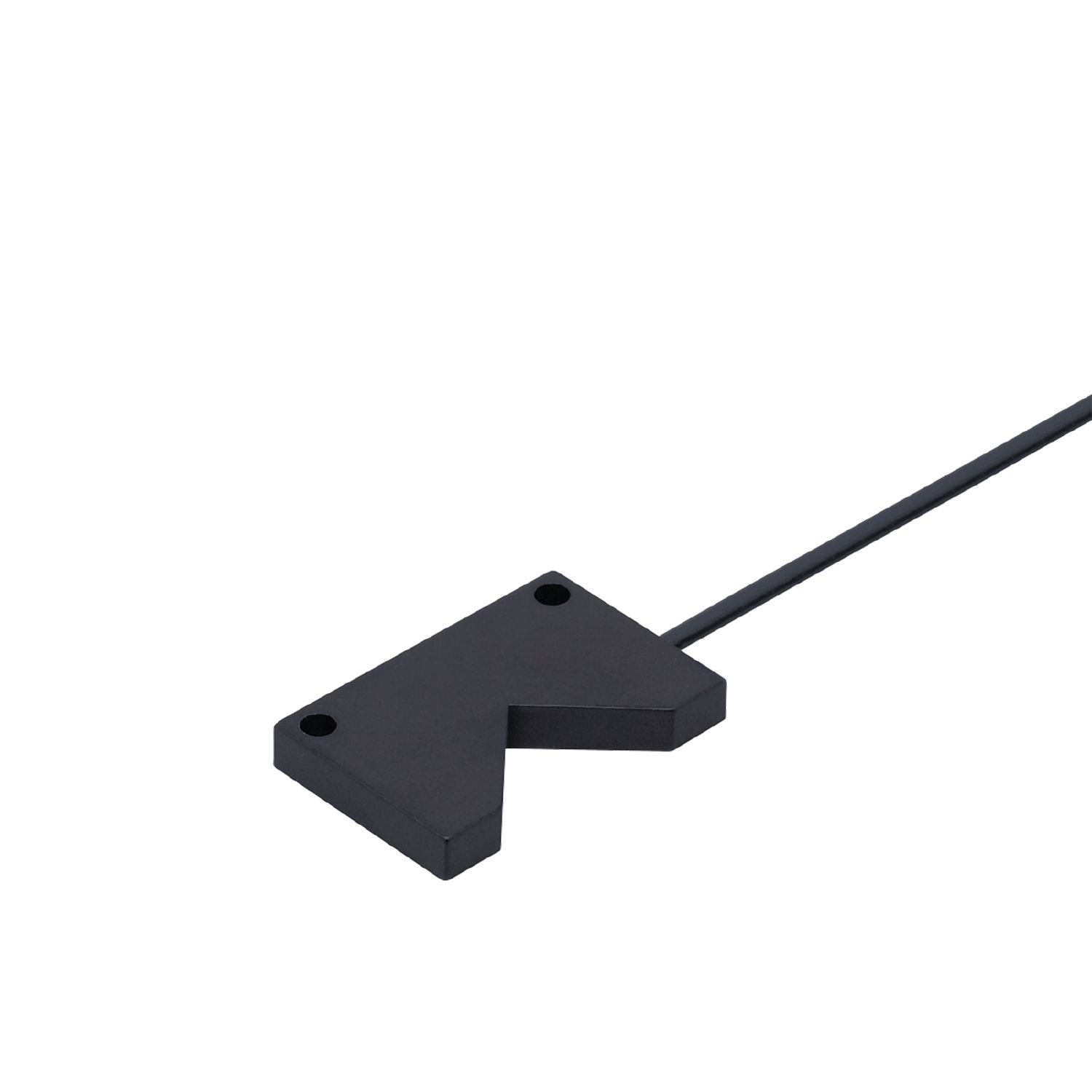

IFM E20756 - Fibre optic diffuse reflection sensor FT-11-EPA-Q-/F2x1/2M

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
For use at short range.
Reliable background suppression.
Very small bending radius

Special feature	Background suppression
Function principle	Diffuse reflection sensor
Application	Small bending radius

Detection zone

Range with fibre optic amplifier type	OB50; OBF; OCF
Background suppression available	yes

Range fibre optics [mm]	6

Range fibre optics [mm]	10

Range fibre optics [mm]	20

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	54
Sensing head height [mm]	5
Sensing head width [mm]	35
Sensing head length [mm]	23
Probe dimensions [mm]	5 x 35 x 23
Total length [mm]	2000
Min. bending radius [mm]	10
Fibre arrangement
Core diameter [mm]	2 x 1
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
