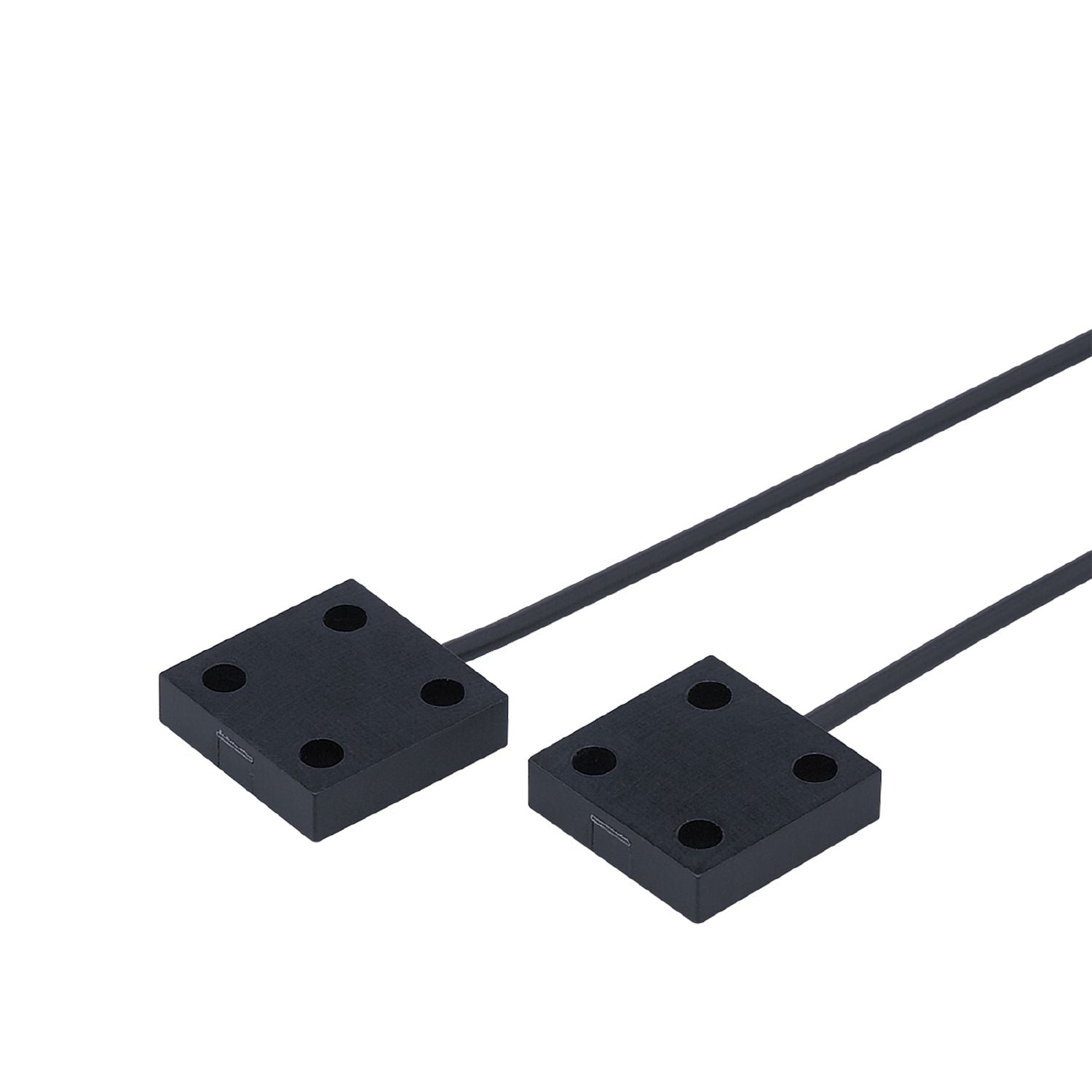

IFM E20757 - Fibre optic through-beam sensor FE-11-EPA-Q-/F16X0,265

For installation in places where access is difficult.
Operation as through-beam sensor.
With cross-section converter for the reliable detection of objects with changing positions.
For cutting to size.
Small bending radius

Design	Cross section converter
Function principle	Through-beam sensor
Application	Small bending radius

Detection zone

Range with fibre-optic amplifier type	OB50; OBF; OCF; OO50

Range of fibre optics [mm]	150

Range of fibre optics [mm]	300

Range of fibre optics [mm]	2040

Range of fibre optics [mm]	700

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	61
Sensing head height [mm]	5
Sensing head width [mm]	20
Sensing head length [mm]	20
Probe dimensions [mm]	5 x 20 x 20
Total length [mm]	2000
Min. bending radius [mm]	9
Fibre arrangement
Core diameter [mm]	16 x 0.25
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20757-00 — 23.08.2022 —
