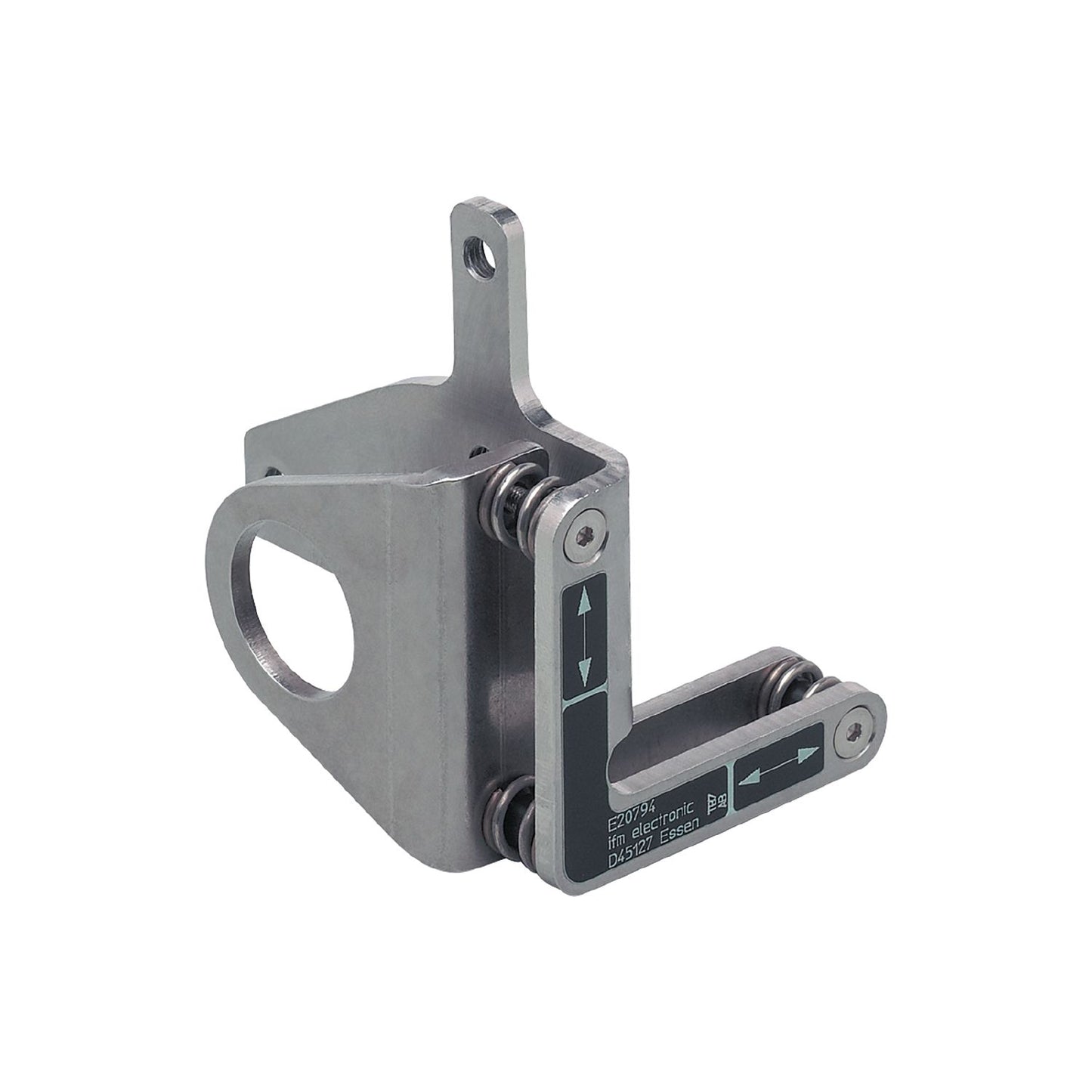

IFM E20794 - Fixture for mounting and fine adjustment of laser sensors MOUNTING FIXTURE LASER OL

User-friendly alignment of the laser beam to a laser receiver or prismatic reflector.
High vibration resistance.
Easy, quick and inexpensive fixing.
Robust design for use in harsh industrial environments.
For mounting to a clamp

Design	clamp mounting

Weight [g]	148
Type of mounting	rod or free-standing depending on the clamp
Materials	stainless steel (1.4571/316Ti )
Alignment range	fine adjustment in 2 axes ± 4°

Accessories

Accessories (optional)	Clamp:, for rod mounting, E20795 Clamp:, for free-standing mounting, E20796

Remarks	To fix O5 units M5 x 25 mm cylinder head bolts are needed.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20794-02 — 25.10.2010 —
