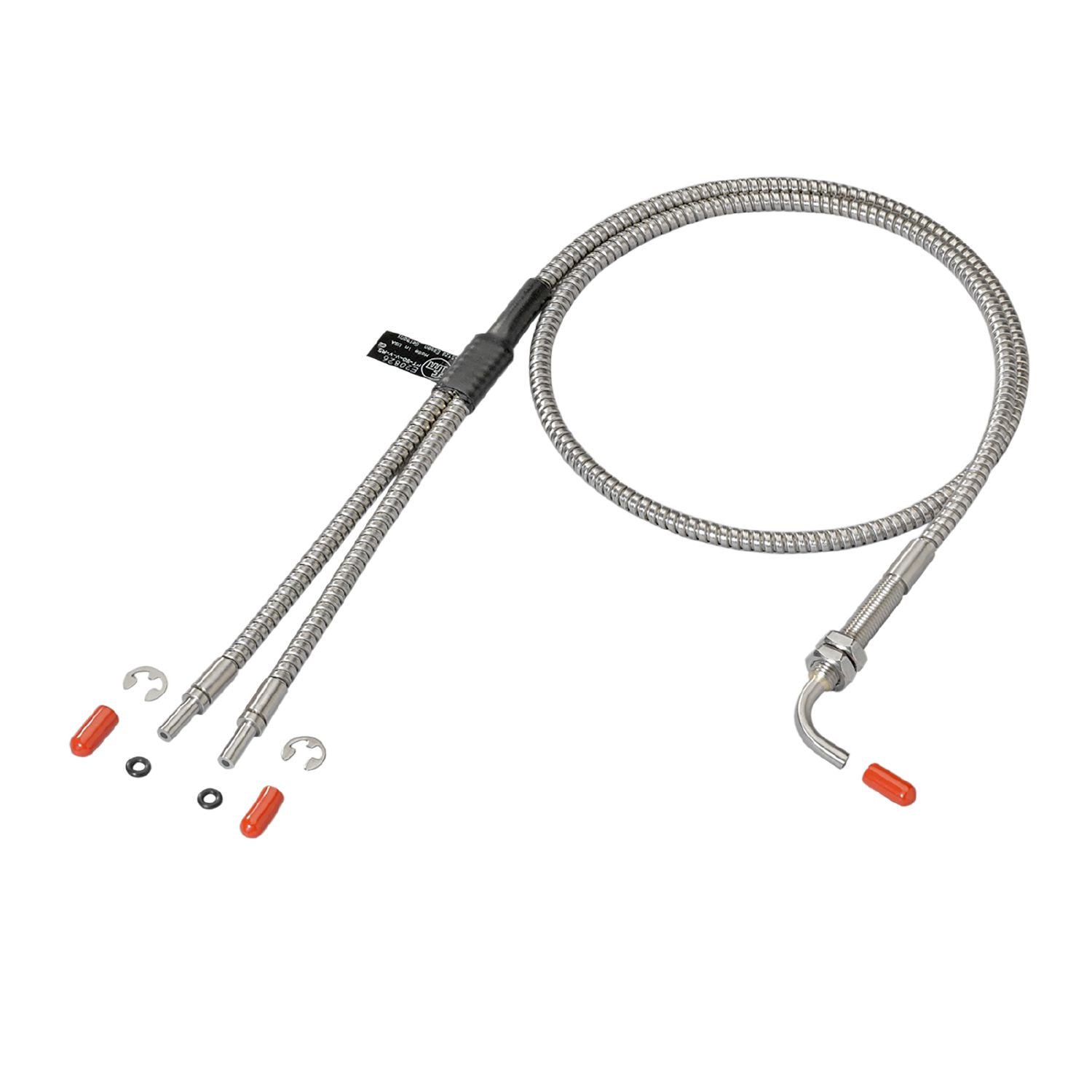

IFM E20826 - Fibre optic diffuse reflection sensor FT-50-V-V-R5

For applications in high-temperature areas.
Stainless steel sheathing for use up to 315 °C.
Angled type for use where space is restricted.
Long range.
Small bending radius

Function principle	Diffuse reflection sensor

Detection zone

Range with fibre optic amplifier type	OBF; ODF; OMF

Range fibre optics [mm]	150

Range fibre optics [mm]	1

Range fibre optics [mm]	175

Operating conditions

Ambient temperature [°C]	-58...315

Weight [g]	126
Version of sensing head	angled
Sensing head diameter [mm]	5
Total length [mm]	900
Min. bending radius [mm]	19
Fibre arrangement
Fibre material	glass
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	stainless steel (1.4305 / 303)

Accessories

Items supplied	lock nuts: 2 spring washers: 2

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20826-00 — 29.11.2006 —
