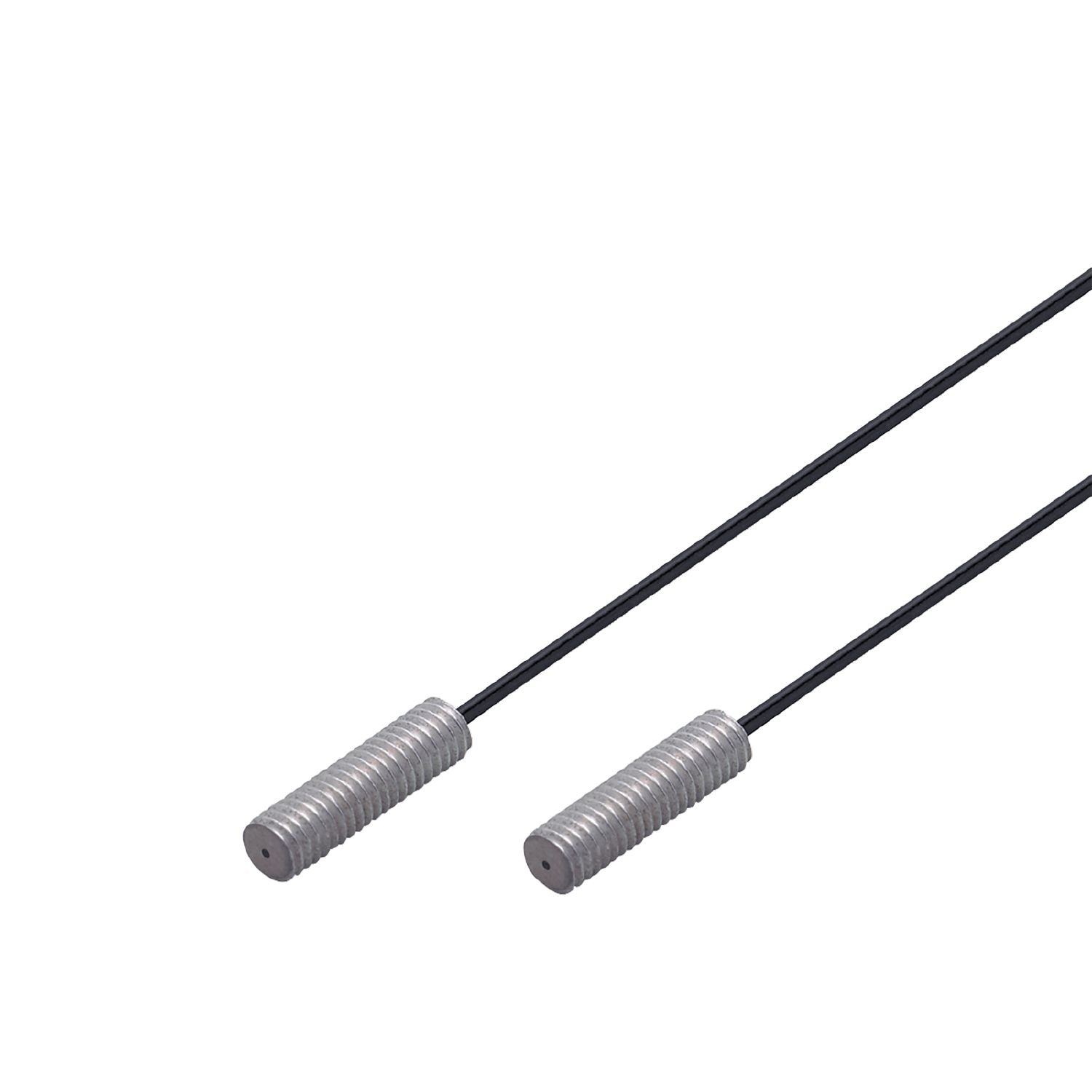

IFM E21104 - Fibre optic through-beam sensor FE-11-EPA-M4/F217X0,06/2M

For installation in places where access is difficult.
Operation as through-beam sensor.
Long range.
For cutting to size.
High-flex version for extremely small bending radii

Function principle	Through-beam sensor
Application	For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OB50; OBF; OCF; OO50

Range of fibre optics [mm]	50

Range of fibre optics [mm]	56

Range of fibre optics [mm]	540

Range of fibre optics [mm]	120

Operating conditions

Ambient temperature [°C]	-40...60

Weight [g]	35
Version of sensing head	straight
Sensing head thread	M4
Sensing head length [mm]	15
Total length [mm]	2000
Min. bending radius [mm]	3
Fibre arrangement
Core diameter [mm]	0.5
Fibre diameter [mm]	217 x 0.06
External diameter [mm]	1
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 4 x M4 tooth lock washers: 4 Adapter: OBF Adapter: OOF
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21104-00 — 23.08.2022 —
