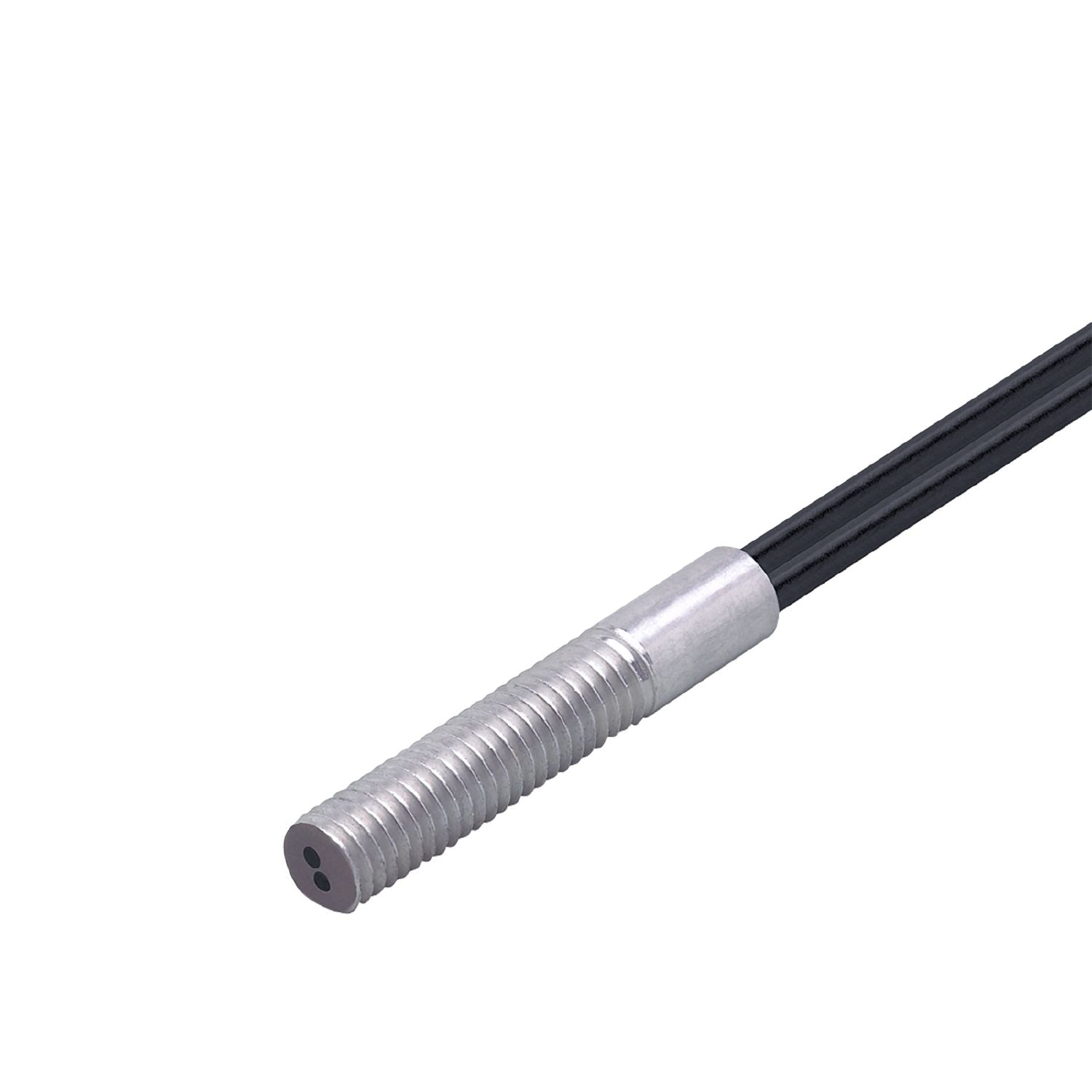

IFM E21105 - Fibre optic diffuse reflection sensor FT-11-EPA-M6/F613X0,06/2M

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
Long range.
For cutting to size.
High-flex version for extremely small bending radii

Function principle	Diffuse reflection sensor
Application	Small bending radius

Detection zone

Range with fibre optic amplifier type	OB50; OBF; OCF; OO50

Range fibre optics [mm]	70

Range fibre optics [mm]	104

Range fibre optics [mm]	620

Range fibre optics [mm]	180

Operating conditions

Ambient temperature [°C]	-40...60

Weight [g]	49.5
Version of sensing head	straight
Sensing head thread	M6
Sensing head length [mm]	35
Total length [mm]	2000
Min. bending radius [mm]	3
Fibre arrangement
Core diameter [mm]	1.2
Fibre diameter [mm]	2x 613 x 0.06
External diameter [mm]	2.2
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 2 x M6, stainless steel tooth lock washers: 2
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
