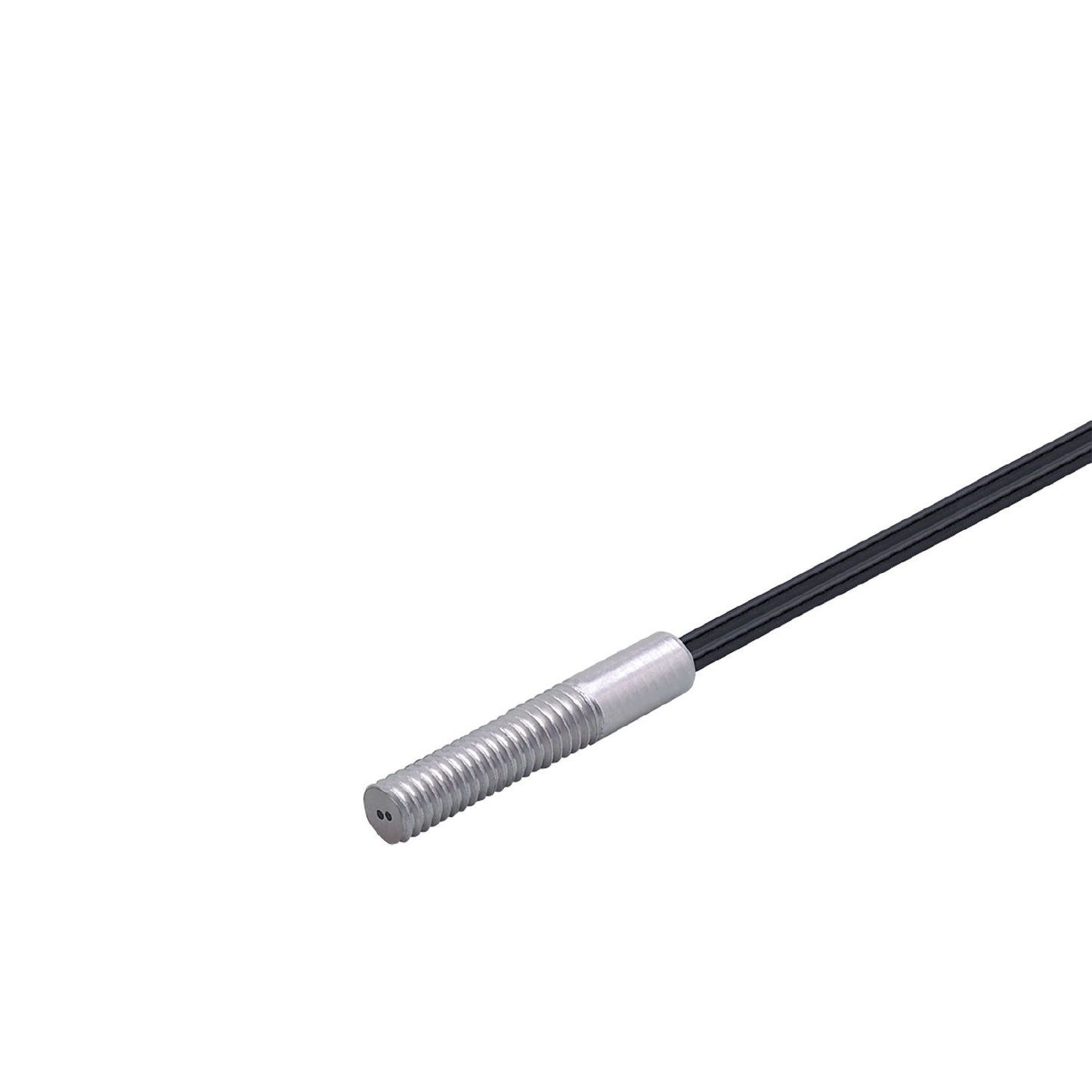

IFM E21106 - Fibre optic diffuse reflection sensor FT-11-EPA-M4/F217X0,06/2M

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
For use at short range.
For cutting to size.
High-flex version for extremely small bending radii

Function principle	Diffuse reflection sensor
Application	Small bending radius

Detection zone

Range with fibre optic amplifier type	OB50; OBF; OCF; OO50

Range fibre optics [mm]	10

Range fibre optics [mm]	10

Range fibre optics [mm]	160

Range fibre optics [mm]	30

Operating conditions

Ambient temperature [°C]	-40...60

Weight [g]	33.5
Version of sensing head	straight
Sensing head thread	M4
Sensing head length [mm]	23
Total length [mm]	2000
Min. bending radius [mm]	3
Fibre arrangement
Core diameter [mm]	0.5
Fibre diameter [mm]	2x 217 x 0.06
External diameter [mm]	1
Fibre material	PMMA
Fibre head material	aluminium
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 2 x M4 tooth lock washers: 2 knurled nut: 1 x M11
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
