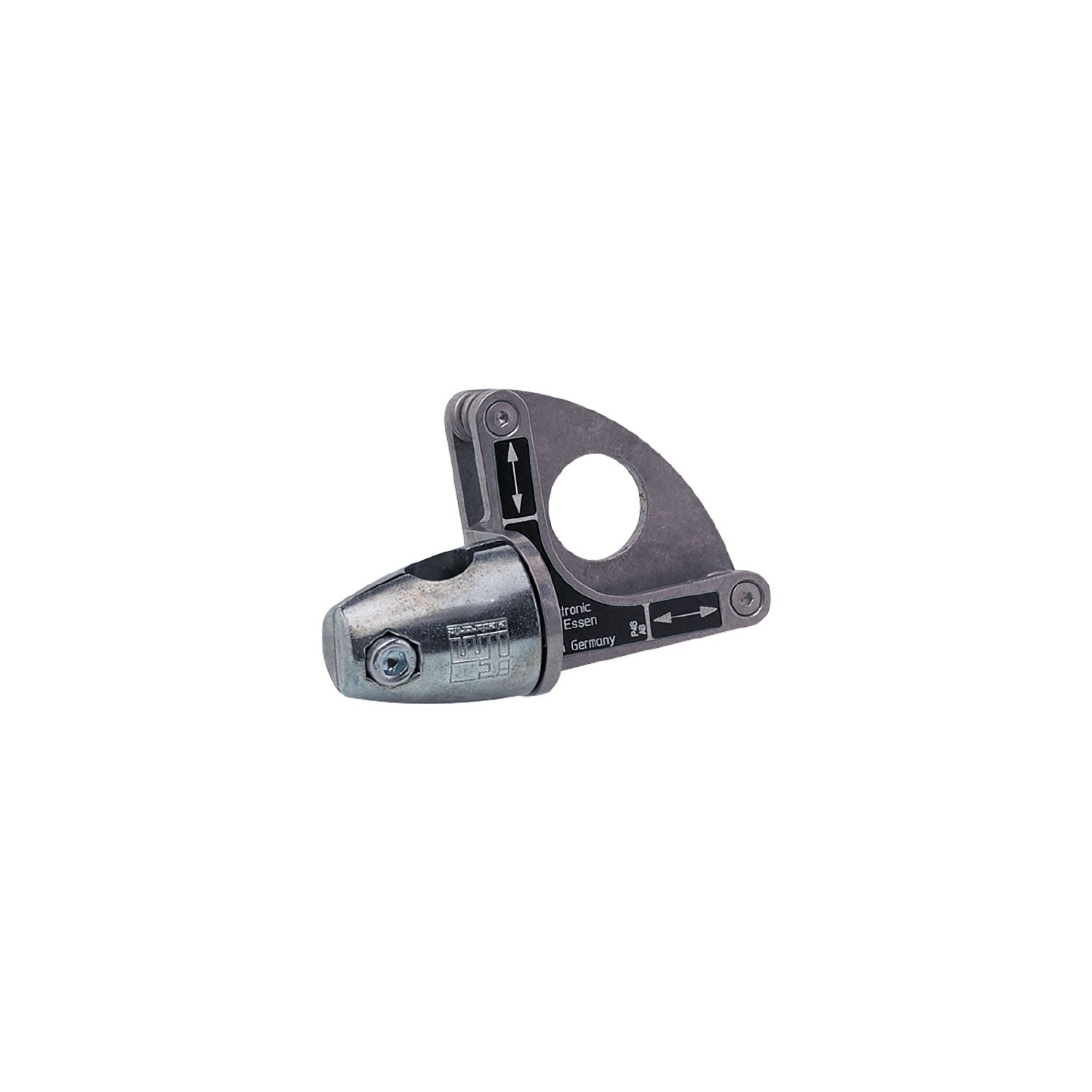

IFM E21220 - Fixture for mounting and fine adjustment of laser sensors M18 FINE ADJUSTMENT 500

User-friendly alignment of the laser beam to a laser receiver or prismatic reflector.
High vibration resistance.
Easy, quick and inexpensive fixing.
Robust design for use in harsh industrial environments.
For mounting to a mounting rod

Design	clamp mounting

Weight [g]	177
Type of mounting	Mounting rod;(Ø 12 mm)
Dimensions [mm]	Ø 18.5
Materials	fixture: stainless steel (1.4571/316Ti ); Clamp: stainless steel
Alignment range	fine adjustment in 2 axes ± 3°

Pack quantity	1 pcs.
