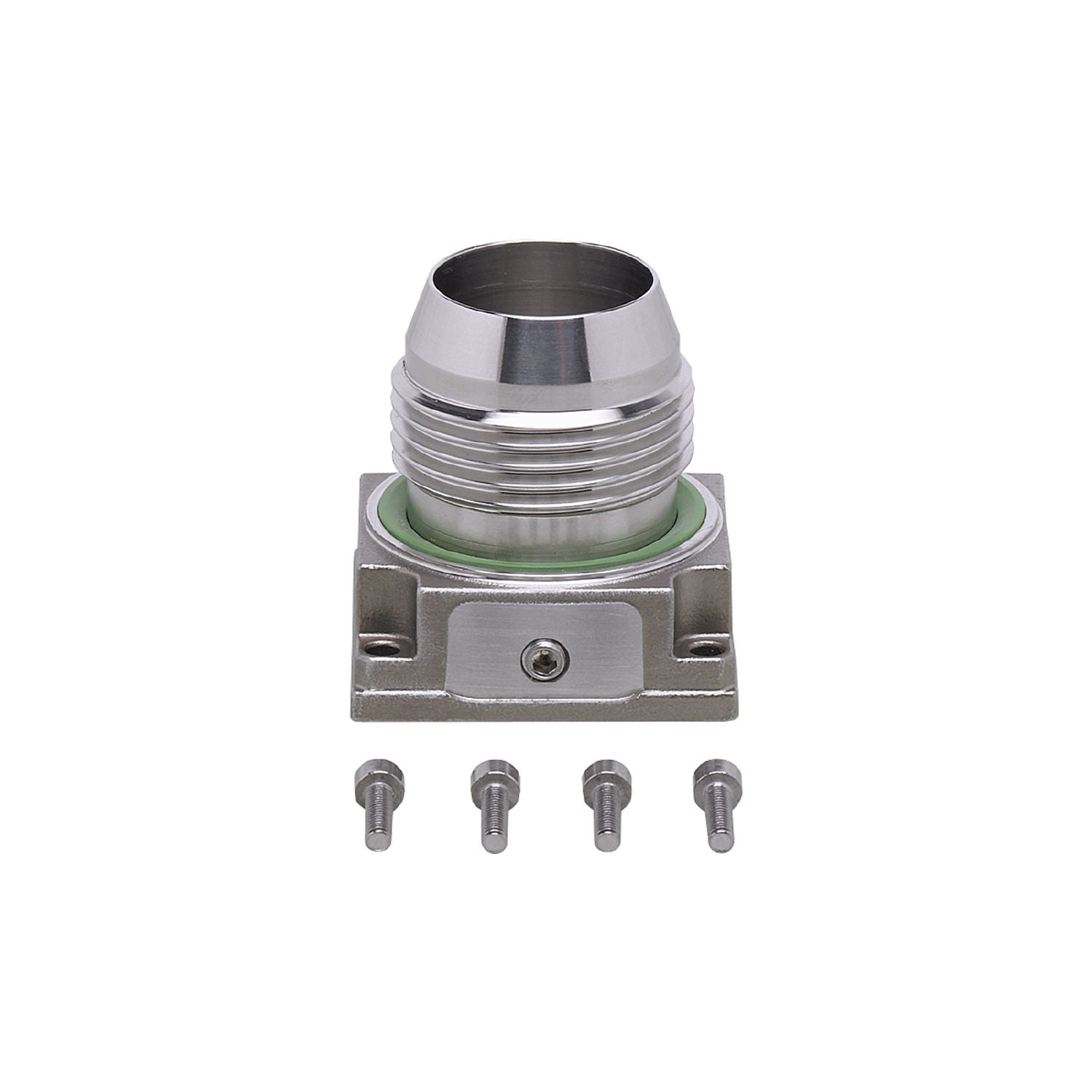

IFM E21224 - Mounting adapter for photoelectric level sensors FLANGE ADAPTER G1 FOR O1D

For optical distance sensors type O1D.
For installation in tanks and containers.
For use of the sensor for level measurement.
Easy, quick and inexpensive fixing.
Robust stainless steel design for use in harsh industrial environments

Design	for optical distance sensors

Weight [g]	231
Dimensions [mm]	42 x 43.5 x 42
Materials	flange: stainless steel (1.4404 / 316L); Sealing: FKM; Protective cover: PMMA transparent; screws: stainless steel; washers: stainless steel
Tightening torque [Nm]	0.6;(screws)

Accessories

Items supplied	cylinder screws: 4 washers: 4

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21224-00 — 04.03.2014 —
