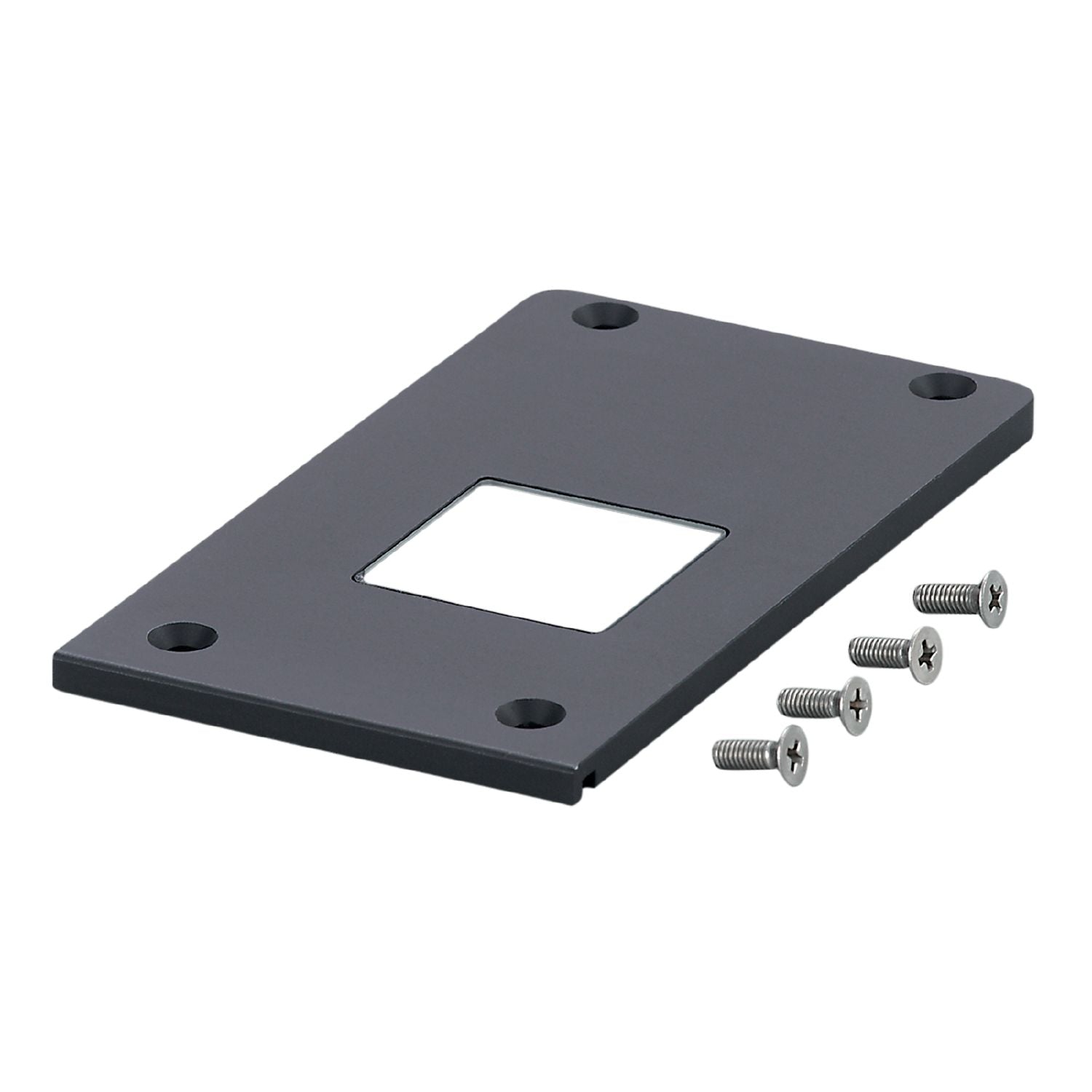

IFM E21308 - bezel for cooling box for distance sensors FRONT SCREEN COOLING BOX O1D

Design	front frame for the protective housing with an active cooling system for sensors of the types O1D
Pressure rating [bar]	10

Operating conditions

Ambient temperature [°C]	-10...180

Weight [g]	59.4
Installation instruction	countersunk screws have to be secured with Loctite ® adhesive 243 and tightened with 150 Ncm
Dimensions [mm]	95 x 54 x 4
Materials	bezel: aluminium black anodised; front pane: float glass

Accessories

Items supplied	countersunk screws: 4 x M3 x 8, stainless steel

Pack quantity	1 pcs.
