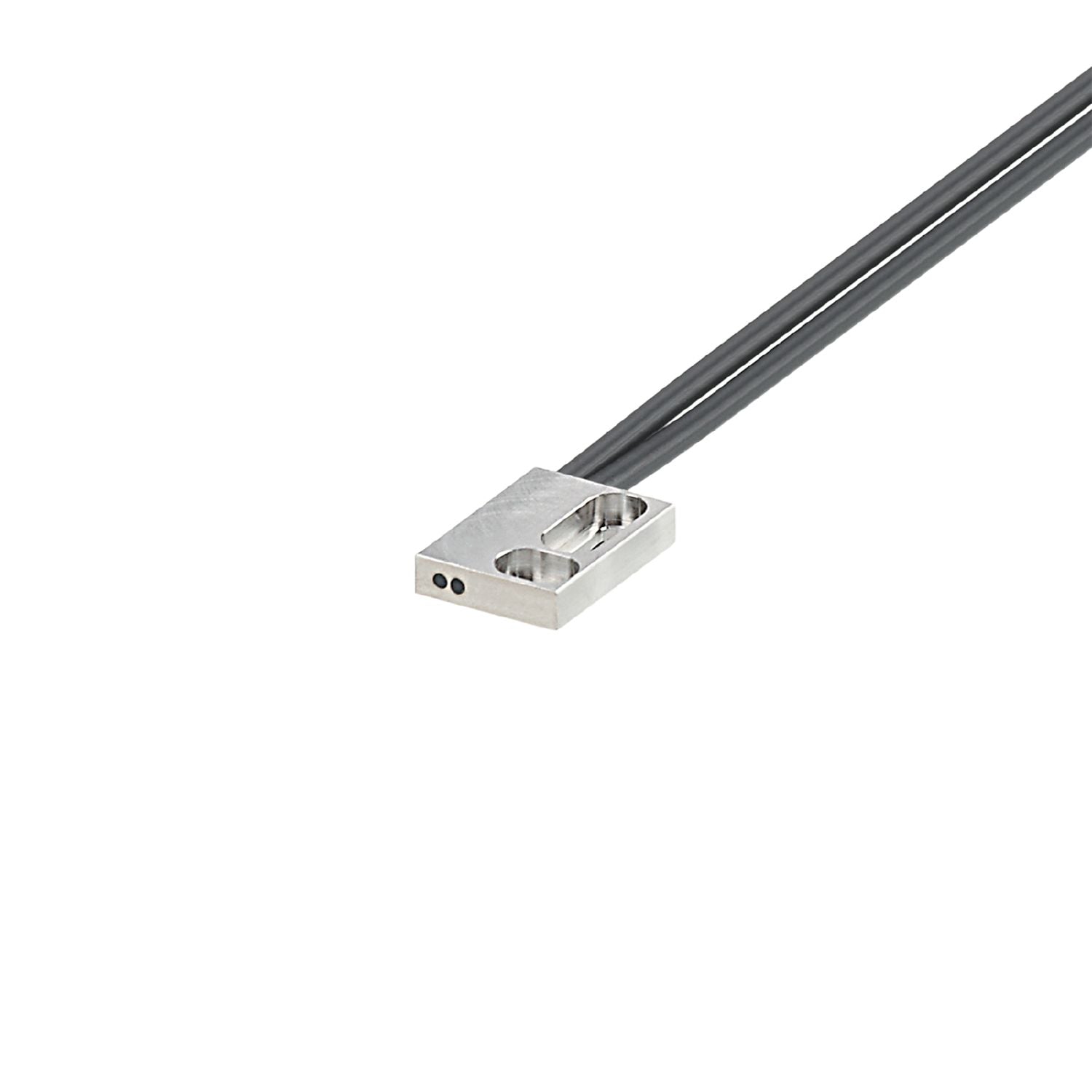

IFM E21310 - Fibre optic diffuse reflection sensor FT-11-EPV-Q3/F2x1/2m

Particularly flat rectangular design.
For installation in places where access is difficult.
For cutting to size.
Operation as diffuse reflection sensor

Function principle	Diffuse reflection sensor
Application	For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OBF; OO50; OCF

Range of fibre optics [mm]	70

Range of fibre optics [mm]	150

Range of fibre optics [mm]	540

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	44.9
Version of sensing head	straight
Sensing head height [mm]	3
Sensing head width [mm]	11
Sensing head length [mm]	15
Probe dimensions [mm]	3 x 11 x 15
Total length [mm]	2000
Min. bending radius [mm]	2
Fibre arrangement
Core diameter [mm]	1
Fibre material	PMMA
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 2 x M2, stainless steel
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
