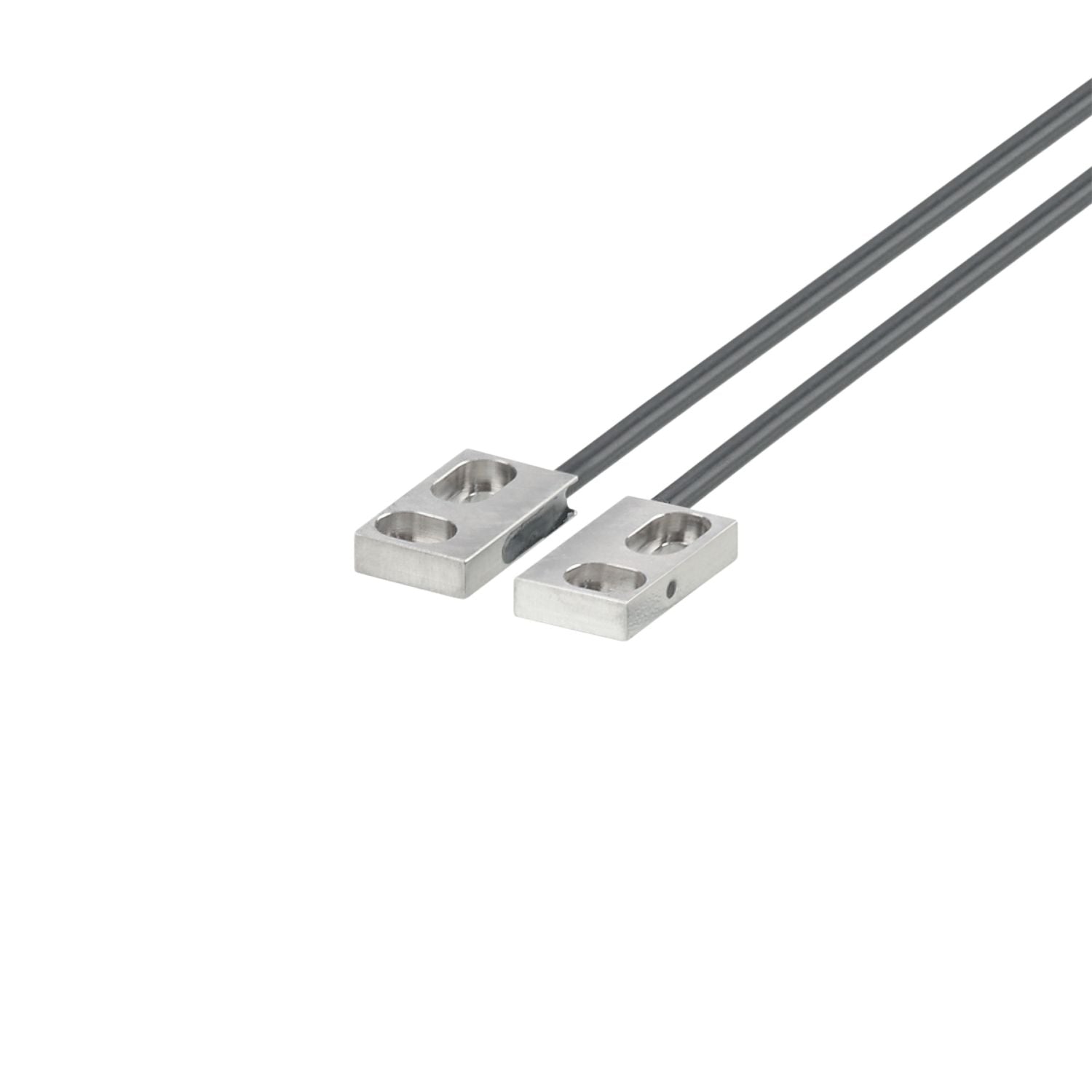

IFM E21313 - Fibre optic through-beam sensor FE-11-EPV-Q3/F1x1/2m

Particularly flat rectangular design.
For installation in places where access is difficult.
For cutting to size.
Operation as through-beam sensor

Function principle	Through-beam sensor
Application	For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OBF; OO50; OCF

Range of fibre optics [mm]	210

Range of fibre optics [mm]	600

Range of fibre optics [mm]	2300

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	51.4
Version of sensing head	angled
Sensing head height [mm]	3
Sensing head width [mm]	8.5
Sensing head length [mm]	15
Probe dimensions [mm]	3 x 8.5 x 15
Total length [mm]	2000
Min. bending radius [mm]	2
Fibre arrangement
Core diameter [mm]	1
Fibre material	PMMA
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 4 x M2, stainless steel
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
