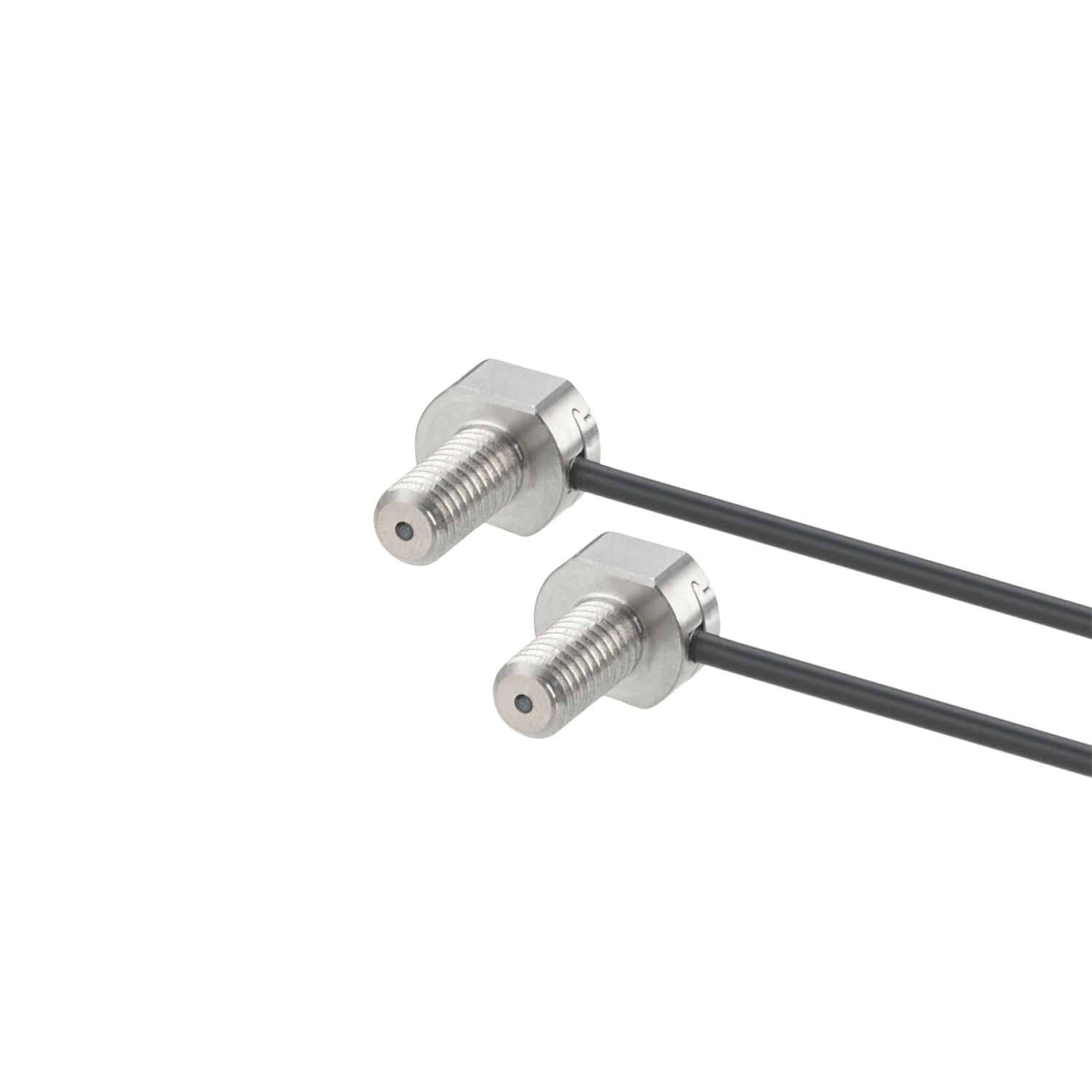

IFM E21317 - Fibre optic through-beam sensor FE-11-EPV-O6/F1x1/2m

For installation in places where access is difficult.
Operation as through-beam sensor.
For cutting to size.
Small bending radius.
Easy mounting and safe fixing

Function principle	Through-beam sensor
Application	For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OBF; OO50; OCF

Range of fibre optics [mm]	210

Range of fibre optics [mm]	600

Range of fibre optics [mm]	2320

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	56.4
Version of sensing head	angled
Sensing head thread	M6
Total length [mm]	2000
Min. bending radius [mm]	2
Fibre arrangement
Core diameter [mm]	1
Fibre material	PMMA
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 4 x M6 tooth lock washers: 4
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
