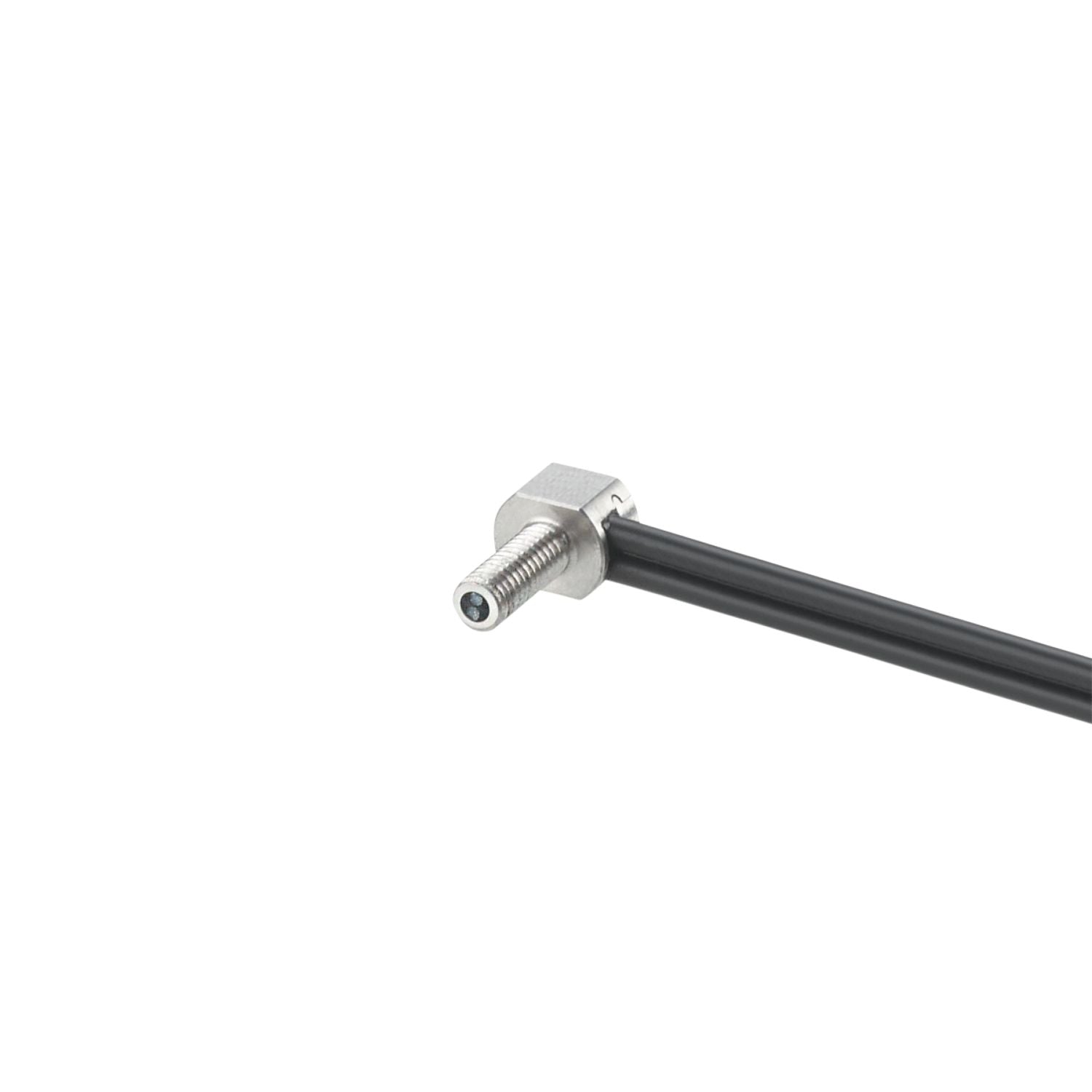

IFM E21318 - Fibre optic diffuse reflection sensor FT-11-EPV-O4/FHx1/2m

Operation as diffuse reflection sensor.
For cutting to size.
Small bending radius.
Easy mounting and safe fixing

Function principle	Diffuse reflection sensor
Application	For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OBF; OO50; OCF

Range of fibre optics [mm]	70

Range of fibre optics [mm]	150

Range of fibre optics [mm]	480

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	44
Version of sensing head	angled
Sensing head thread	M4
Total length [mm]	2000
Min. bending radius [mm]	2
Fibre arrangement
Core diameter [mm]	1
Fibre material	PMMA
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 2 x M4 tooth lock washers: 2
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
