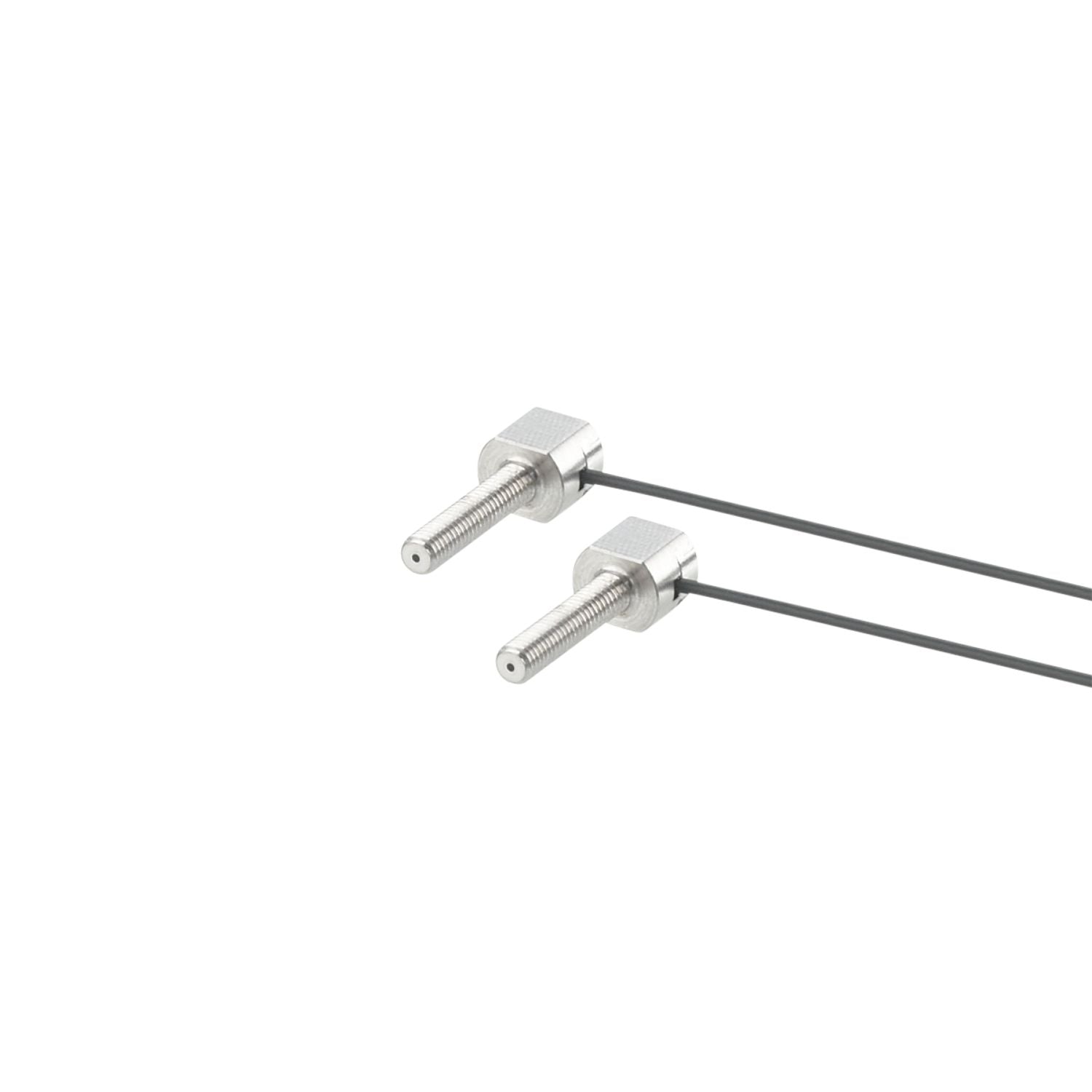

IFM E21321 - Fibre optic through-beam sensor FE-11-EPV-O3/F1x0,5/2m

For installation in places where access is difficult.
Operation as through-beam sensor.
For cutting to size.
Small bending radius.
Easy mounting and safe fixing

Function principle	Through-beam sensor
Application	For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OBF; OO50; OCF

Range of fibre optics [mm]	56

Range of fibre optics [mm]	120

Range of fibre optics [mm]	500

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	35.2
Version of sensing head	angled
Sensing head thread	M3
Total length [mm]	2000
Min. bending radius [mm]	1
Fibre arrangement
Core diameter [mm]	0.5
Fibre material	PMMA
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 4 x M3 tooth lock washers: 4
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.
