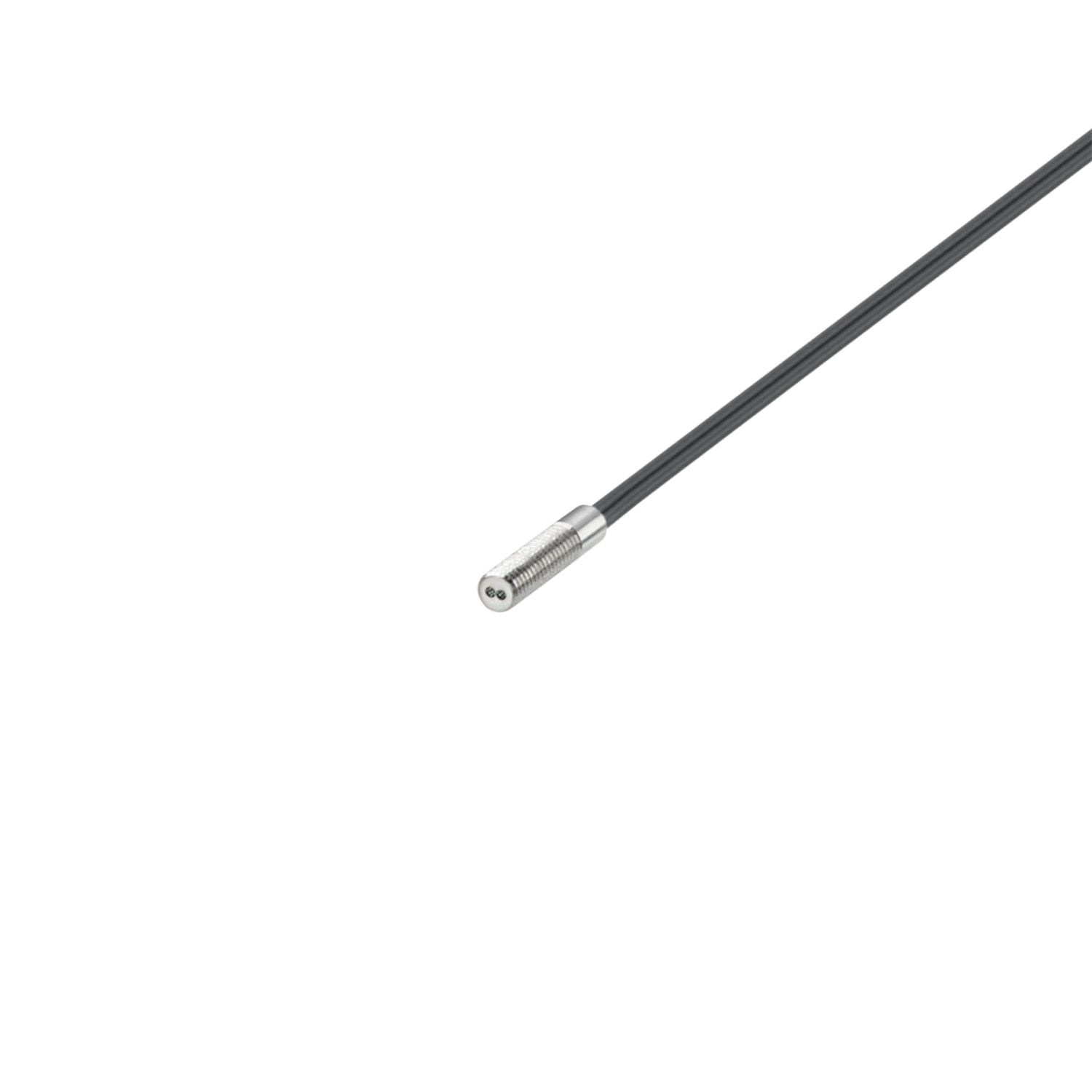

IFM E21324 - Fibre optic diffuse reflection sensor FT-11-EPA-M3/F0,5x1/2m

For installation in places where access is difficult.
Operation as diffuse reflection sensor.
For cutting to size.
Life expectancy of more than 1 million bending cycles

Function principle	Diffuse reflection sensor
Application	Bending-resistant design for applications in robotics; For use in industrial environments

Detection zone

Range with fibre-optic amplifier type	OBF; OO50; OCF

Range of fibre optics [mm]	10

Range of fibre optics [mm]	30

Range of fibre optics [mm]	190

Operating conditions

Ambient temperature [°C]	-40...70

Weight [g]	30.3
Version of sensing head	straight
Sensing head thread	M3
Total length [mm]	2000
Min. bending radius [mm]	5
Fibre arrangement
Core diameter [mm]	4 x 0.25
Fibre material	PMMA
Fibre head material	stainless steel (1.4305 / 303)
Fibre sheath material	PE

Accessories

Items supplied	hexagon nuts: 2 x M3 tooth lock washers: 2
Accessories (optional)	Cutter for fibre optics:, E20600

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21324-00 — 26.07.2022 —
