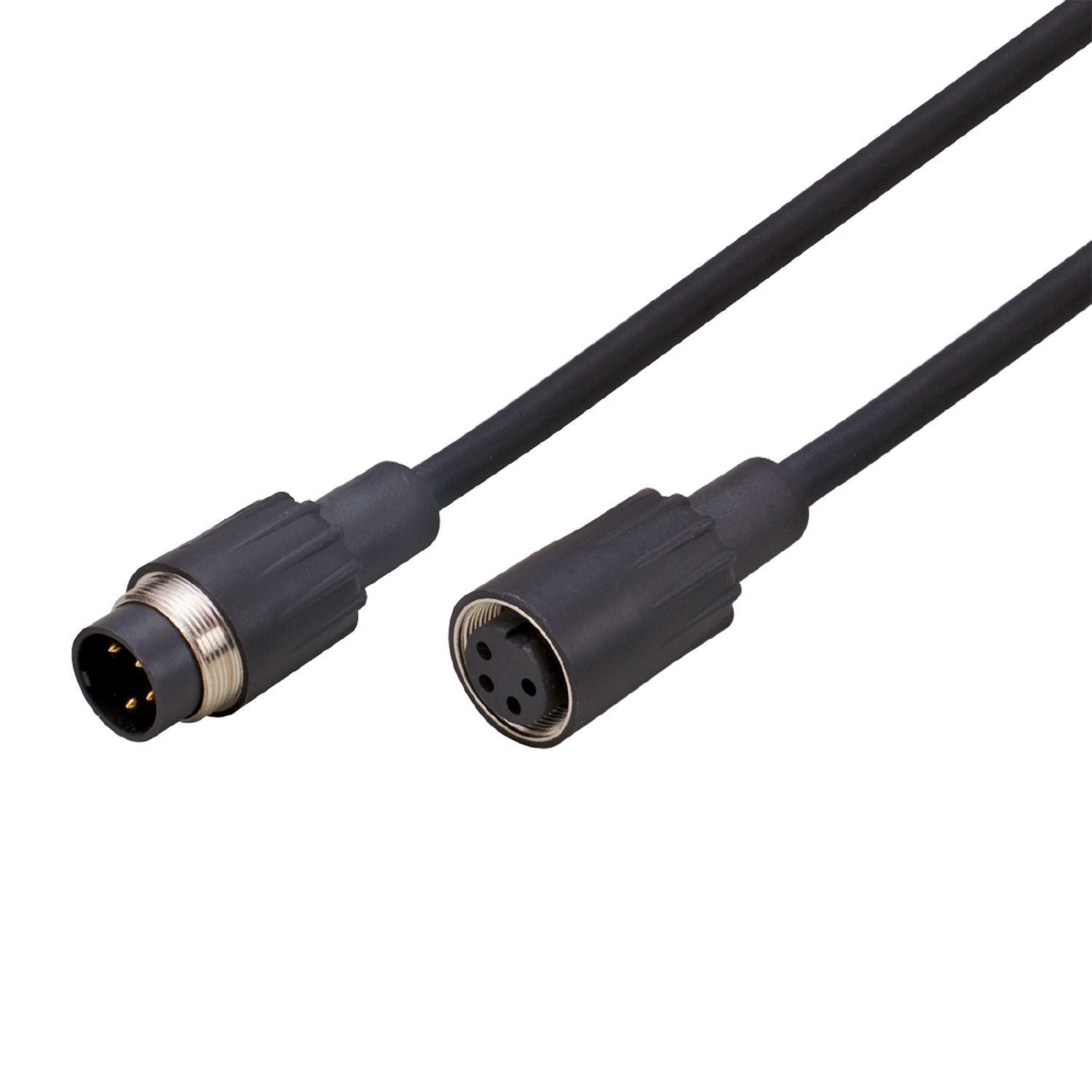

IFM E2M204 - Adapter cables for cameras with video output CONNECTION CABLE M16 11M

Reliable connection of mobile cameras with video output.
Gold-plated contacts for reliable signal transmission.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Free from silicone; Gold-plated contacts
Design	camera with video output O2M20x
Free from silicone	yes

Operating voltage [V]	< 60 DC
Protection class	II
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-45...85
Protection	IP 67

Weight [g]	589.5
Materials	housing: PVC; Sealing: EPDM
Material nut	PVC

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M16, straight; coding: A; Locking: PVC; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

Connection	Cable: 11 m, PVC, black, Ø 6 mm; 3 x 0.34 mm² / AWG 22 + 1 x 0.11 mm² / AWG 26

Electrical connection - socket

	Connector: 1 x M16, straight; coding: A; Locking: PVC; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
