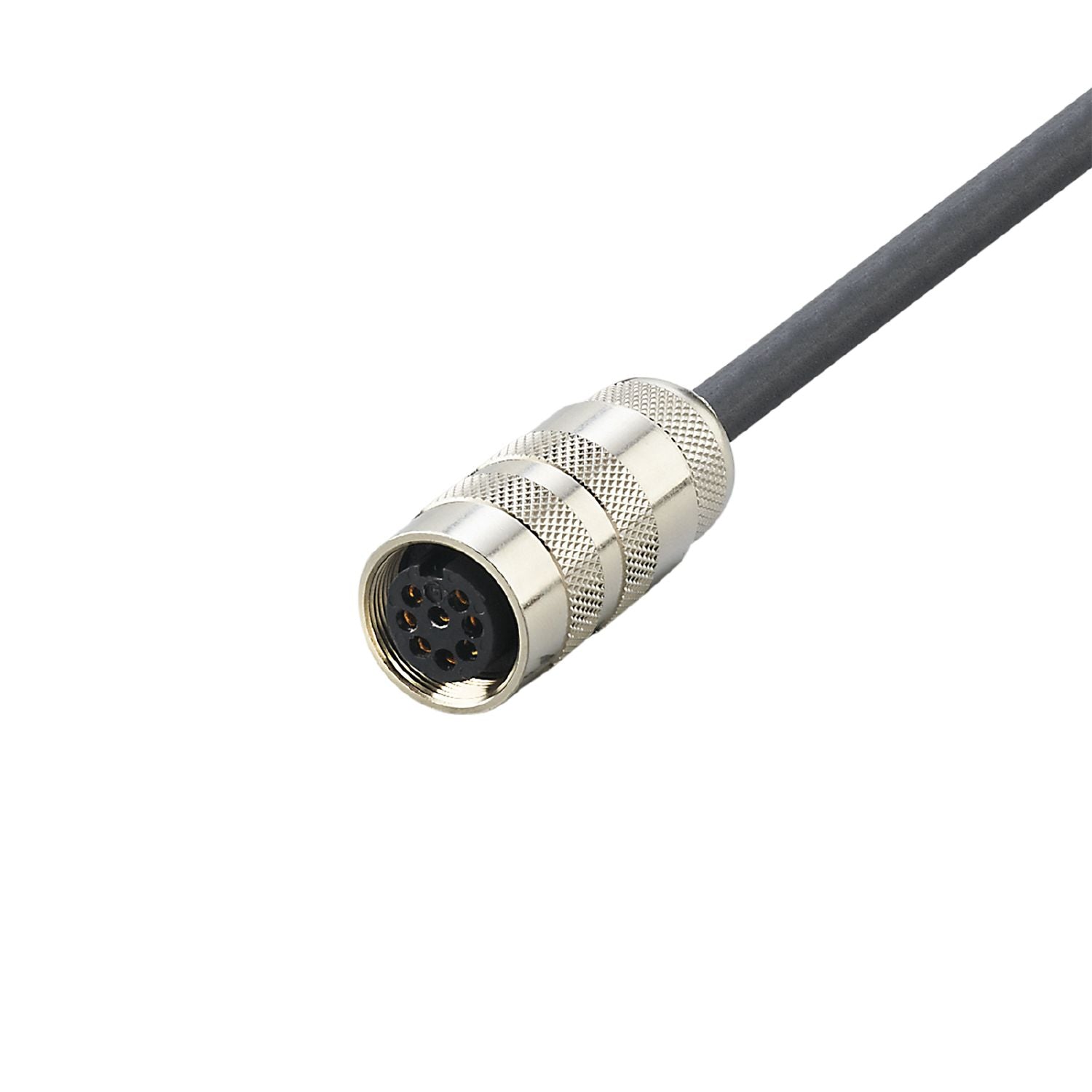

IFM E2M251 - Connection cable for E2M250 multi-view box CONNECTION CABLE M16 8P 3,85M

Connection cable for E2M250 multi-view box.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
8-pole connection

Special feature	Halogen-free; Drag chain suitability
Design	For connection of the MultiViewBox E2M250

Operating voltage [V]	< 60 DC

Operating conditions

Ambient temperature [°C]	-45...85
Protection	IP 67

Weight [g]	322.8
Materials	housing: diecast zinc; Sealing: PBT
Material nut	diecast zinc
Drag chain suitability	yes
Drag chain suitability	bending radius for fixed installation ≥ 100 mm

Pack quantity	1 pcs.

Electrical connection

	Cable: 3.85 m, PUR, Halogen-free, black, Ø 6 mm; 7 x 0.34 mm²

Electrical connection - socket

	Connector: 1 x M16, straight; coding: A; Locking: diecast zinc

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2M251-00 — 29.09.2016 —
