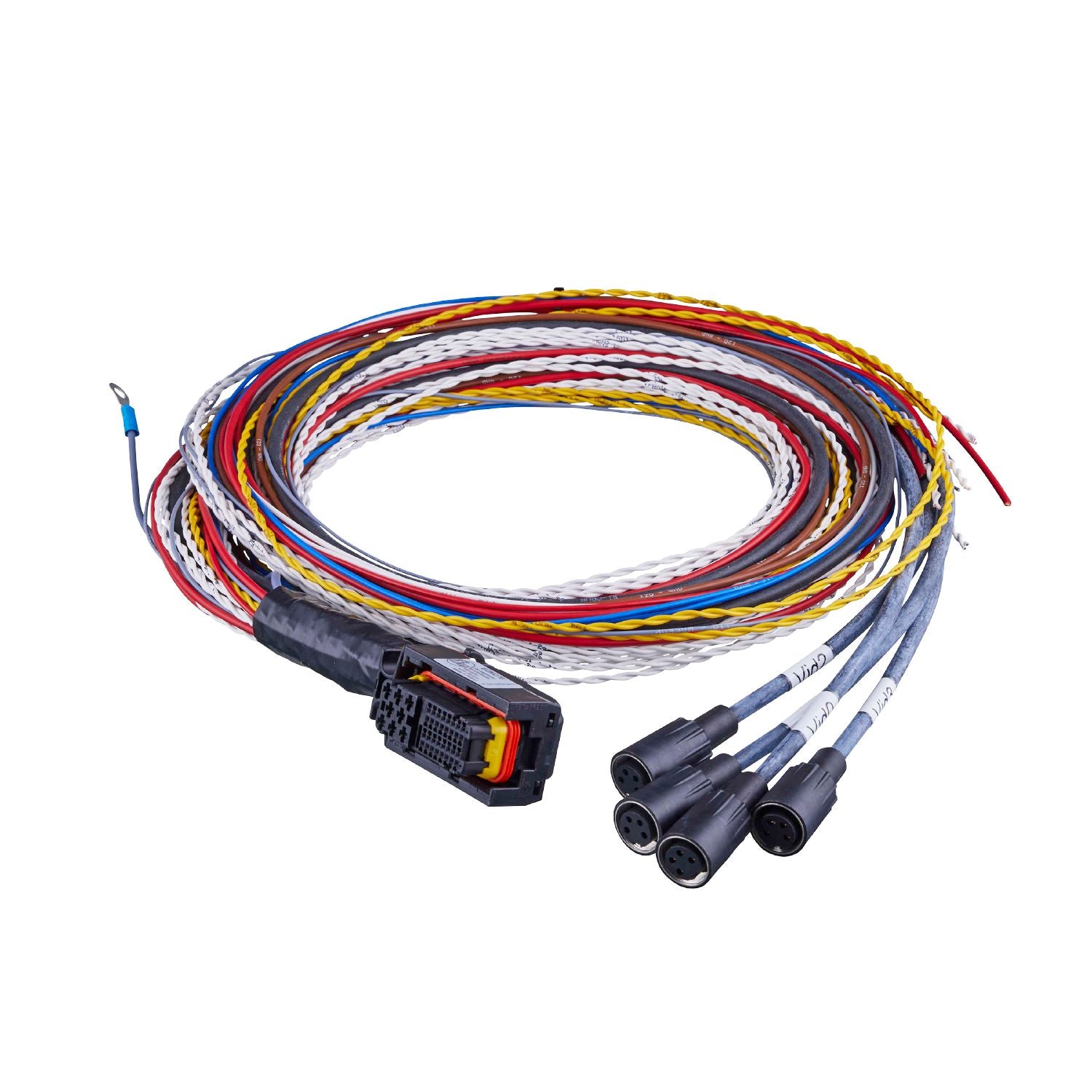

IFM E2M276 - connection cable with AMP connector, for 4 analogue cameras ecomatDisplay/Cable/40p/O2M2/4X M16

Operating voltage [V]	< 18 DC

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67;(M16 connector)

Weight [g]	1091.3
Moulded-body material	PA 6.6-GF30 / PBT-GF15
Material nut	PBT-GF30

Pack quantity	1 pcs.

Electrical connection - AMP connector

	Connector: 1 x AMP-Junior Timer; Moulded body: PA 6.6-GF30 / PBT-GF15, black; Locking: PBT-GF30

Electrical connection

	Cable: 2.5 m, PUR; FLRY-B; 8 x 0.125 mm², PVC + 4 x 0.34 mm², PVC + 20 x 0.5 mm², PVC + 5 x 1.0 mm², PVC + (provide screen with ring cable lug (M5) )

Electrical connection - socket video 0 ... video 3

	Connector: 4 x M16, straight; coding: A
