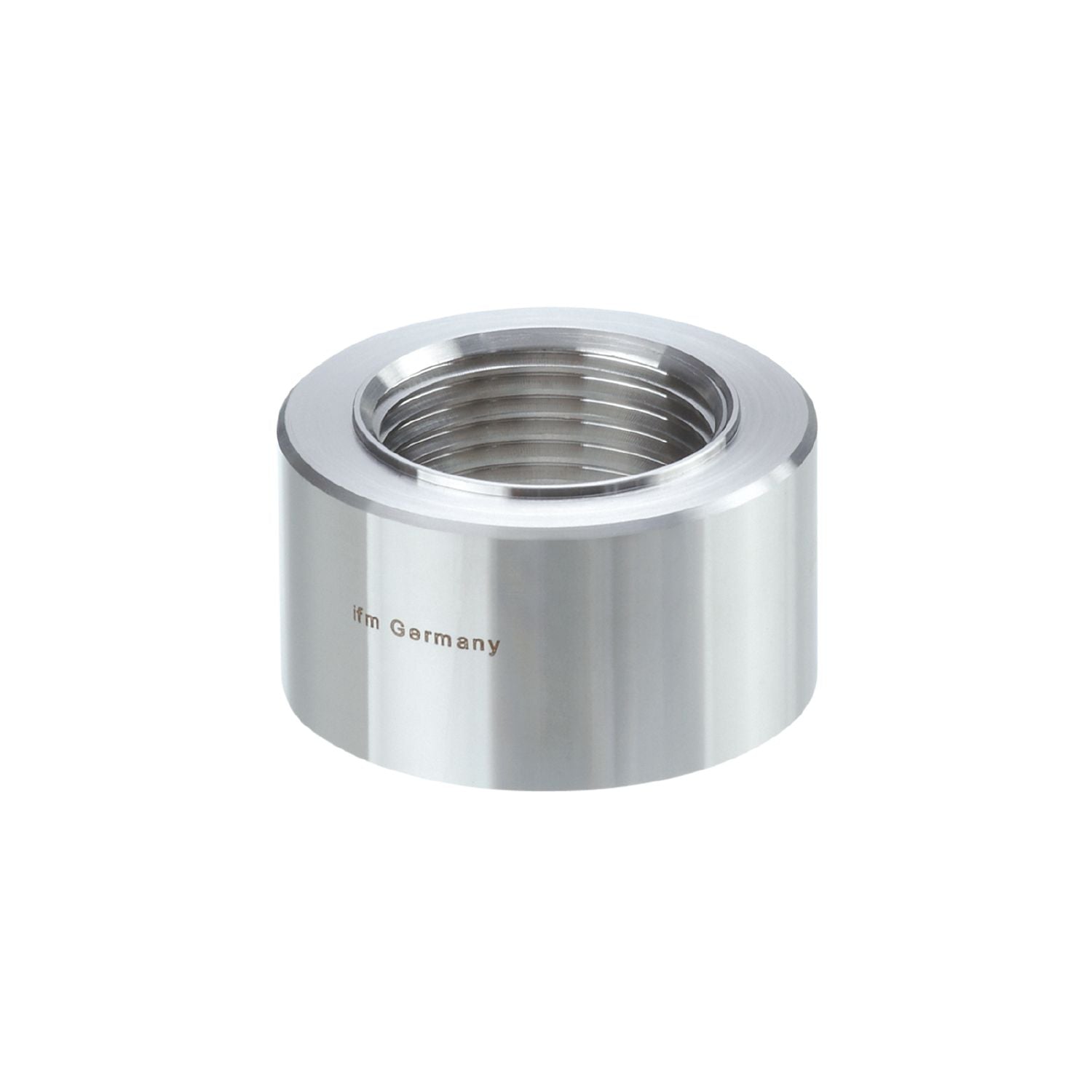

IFM E30013 - Welding adapter for process sensors WELDING ADAPT G1 V4A

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating

Pressure rating [bar]	150
Note on pressure rating	for the connection sensor - adapter
MAWP (for applications according to CRN) [bar]	150

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	300
Materials (wetted parts)	stainless steel (1.4404 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
Sensor connection	G 1 sealing cone
Process connection	welding adapter Ø 50 mm

Pack quantity	1 pcs.
