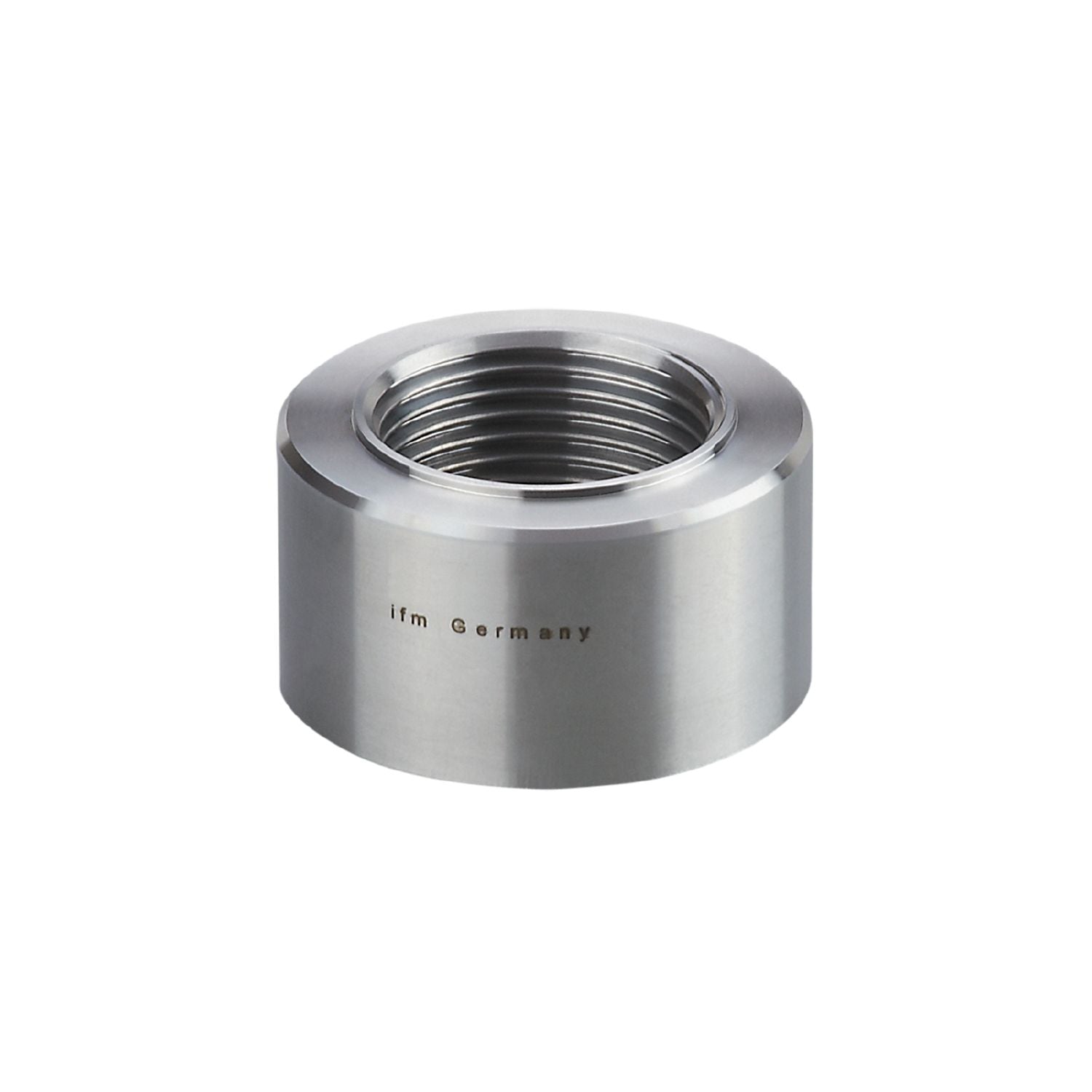

IFM E30060 - Welding adapter for process sensors WELDING ADAPT G1 ST52-3

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating

Pressure rating [bar]	50
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	295.5
Materials (wetted parts)	steel (1.0570 / S355J2) surface characteristics : Ra<0,4 / Rz 4
Sensor connection	G 1 sealing cone
Process connection	welding adapter Ø 50 mm

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30060-00 — 14.09.2023 —
