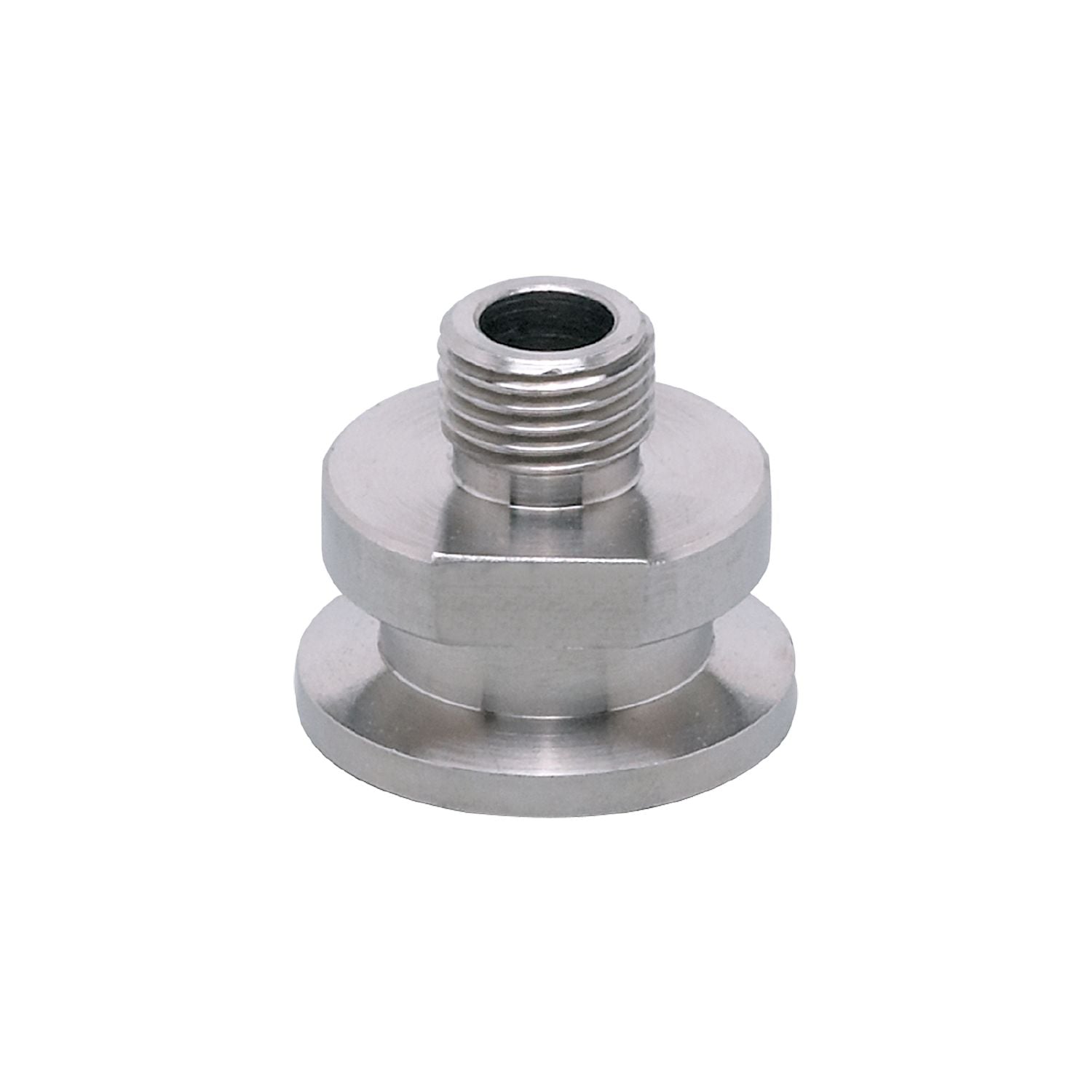

IFM E30065 - Mounting adapter for process sensors ADAPT G1/4-FLANGE NW16

For the installation of pressure sensors in containers and pipes.
Easy, quick and secure mounting.
Use in industrial and mobile hydraulics.
High pressure rating.
Stable fixing with clamps

Design	small flange G1/4 - DIN 28403 DN16
Pressure rating [bar]	10

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	67
Materials	stainless steel (1.4301 / 304)
Sensor connection	G 1/4
Process connection	flange DN16

Pack quantity	1 pcs.
