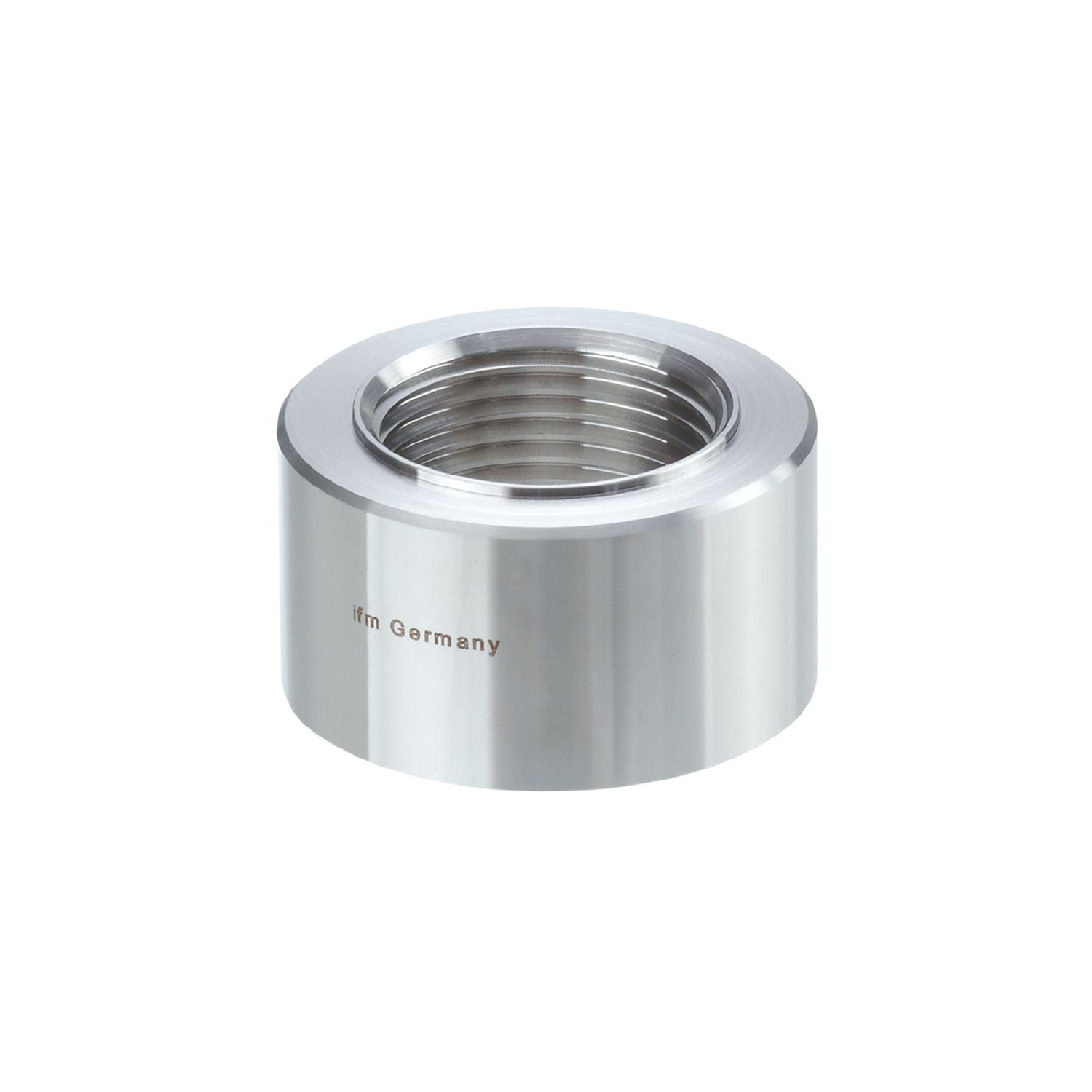

IFM E30072 - Welding adapter for process sensors WELDING ADAPT G1 O-RG

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating

Pressure rating [bar]	150
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	292.5
Materials (wetted parts)	stainless steel (1.4404 / 316L) ; surface characteristics : Ra<0,4 / Rz 4; O-ring: FPM; O-ring: EPDM
Sensor connection	G 1 sealing cone
Process connection	welding adapter Ø 50 mm
Sealing	Gasket

Accessories

Items supplied	O-ring: 26 x 3, EPDM, FDA compliant, E30438 O-ring: 26 x 3, FKM, FDA compliant, E30437

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30072-01 — 18.10.2023 —
