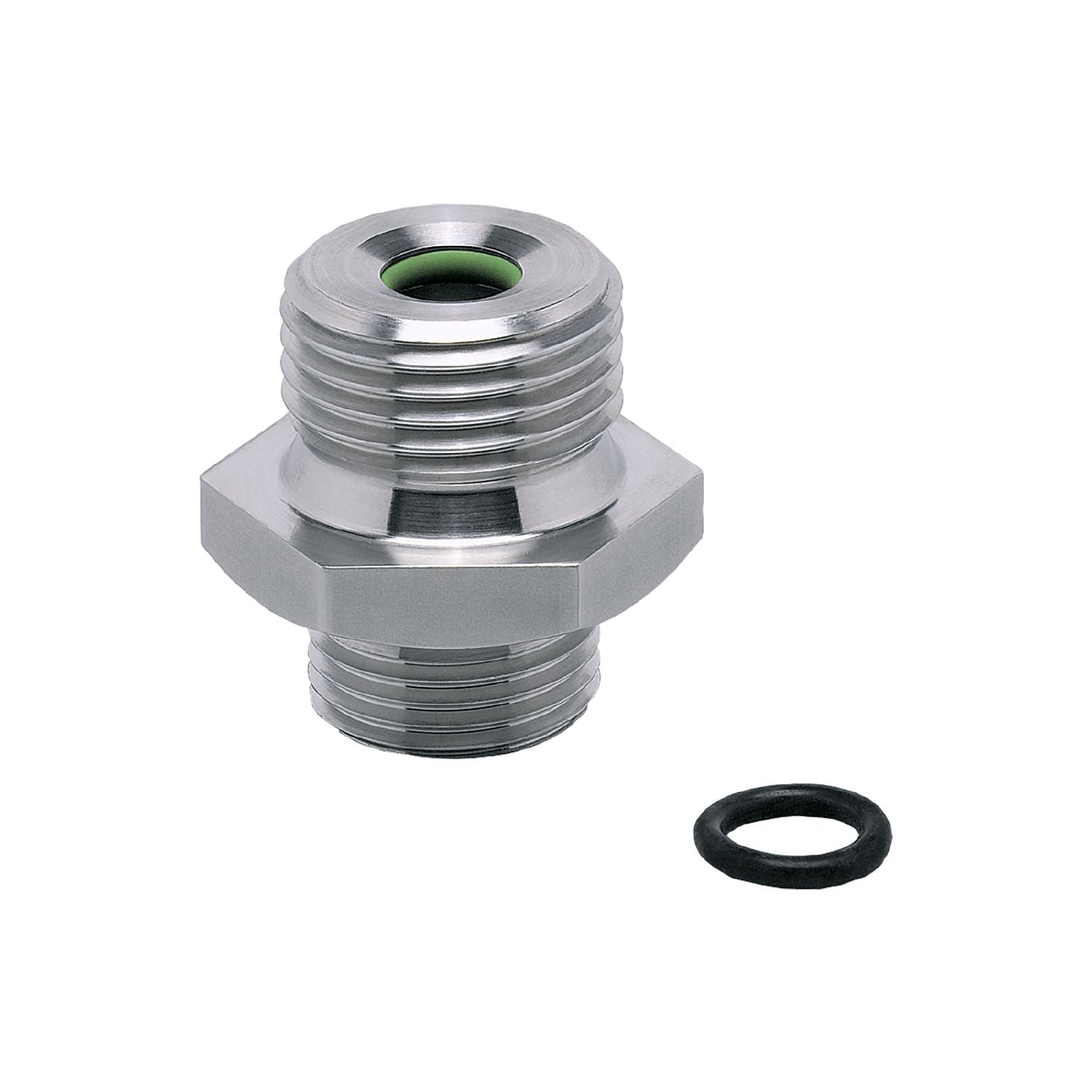

IFM E30073 - Screw-in adapter for process sensors ADAPT TN/G1/2/VA

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Use in industrial and mobile hydraulics.
High pressure rating.
Stable fixing by screwing in

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	100

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	61.5
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	stainless steel (1.4404 / 316L); O-ring: FKM fitted
Sensor connection	M18 x 1,5 internal thread
Process connection	threaded connection G 1/2

Accessories

Items supplied	O-ring: 1, EPDM

Remarks	reduced dead space
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30073-00 — 10.12.2014 —
