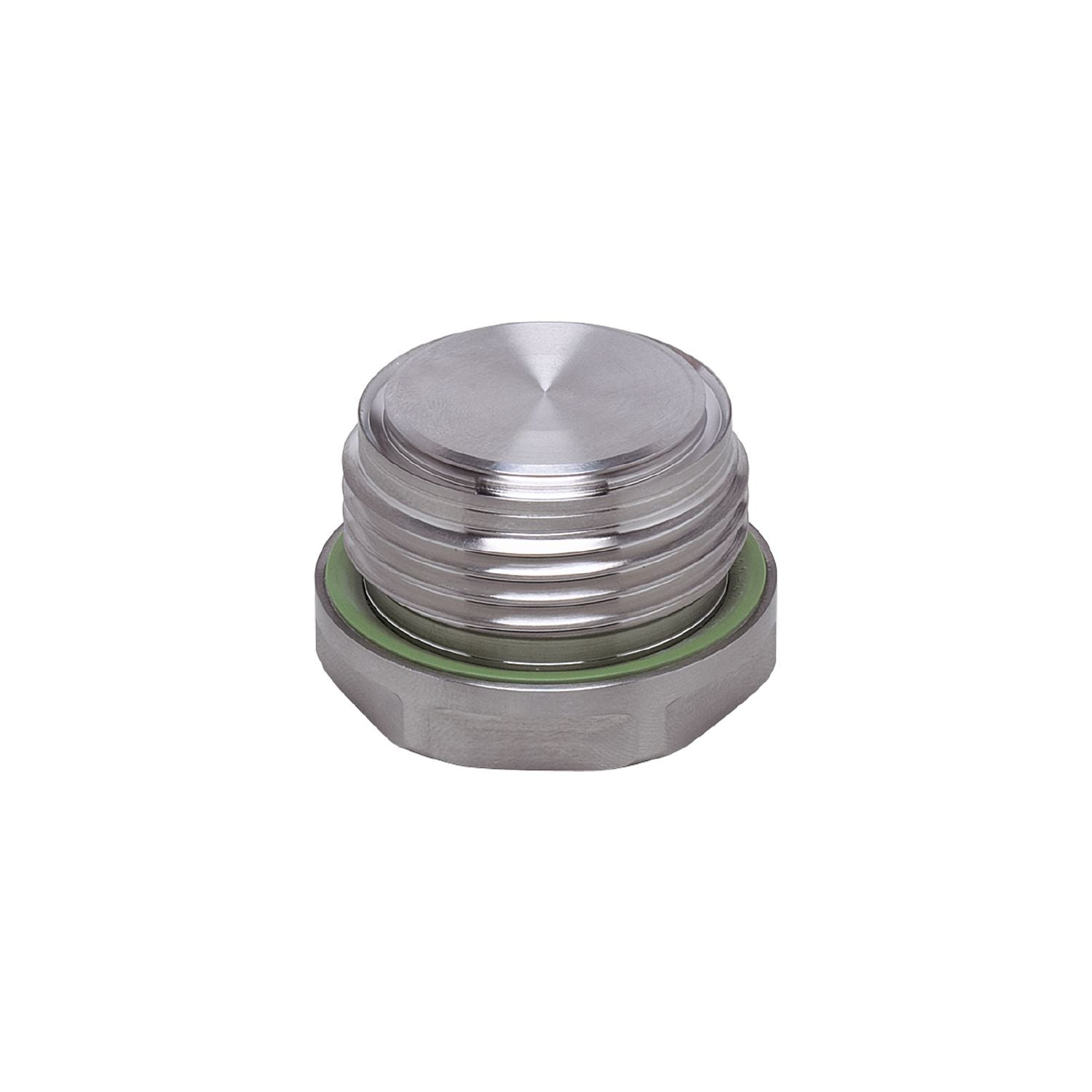

IFM E30128 - Cover plug for process connections ADAPTER PLUG ASEPTOFLEX VARIO

Reliable covering of unused process connections.
Efficient protection against warp or damage of the thread during welding.
Particularly suited for use in hygienic applications.
Robust stainless steel design for use in harsh industrial environments

Pressure rating [bar]	100

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	203
Materials (wetted parts)	stainless steel (1.4435 / 316L) surface characteristics : Ra<0,4 / Rz 4; Gasket: FKM
Process connection	threaded connection G 1 external thread Aseptoflex Vario

Accessories

Items supplied	O-rings: 1 x 24 x 2 (EPDM), in contact with the medium, E30054 O-rings: 1, DIN 3869-33-FKM
Accessories (optional)	O-ring: 24 x 2 (FKM), in contact with the medium, E30123 sealing ring: PEEK, in contact with the medium, E30124

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30128-01 — 12.02.2014 —
