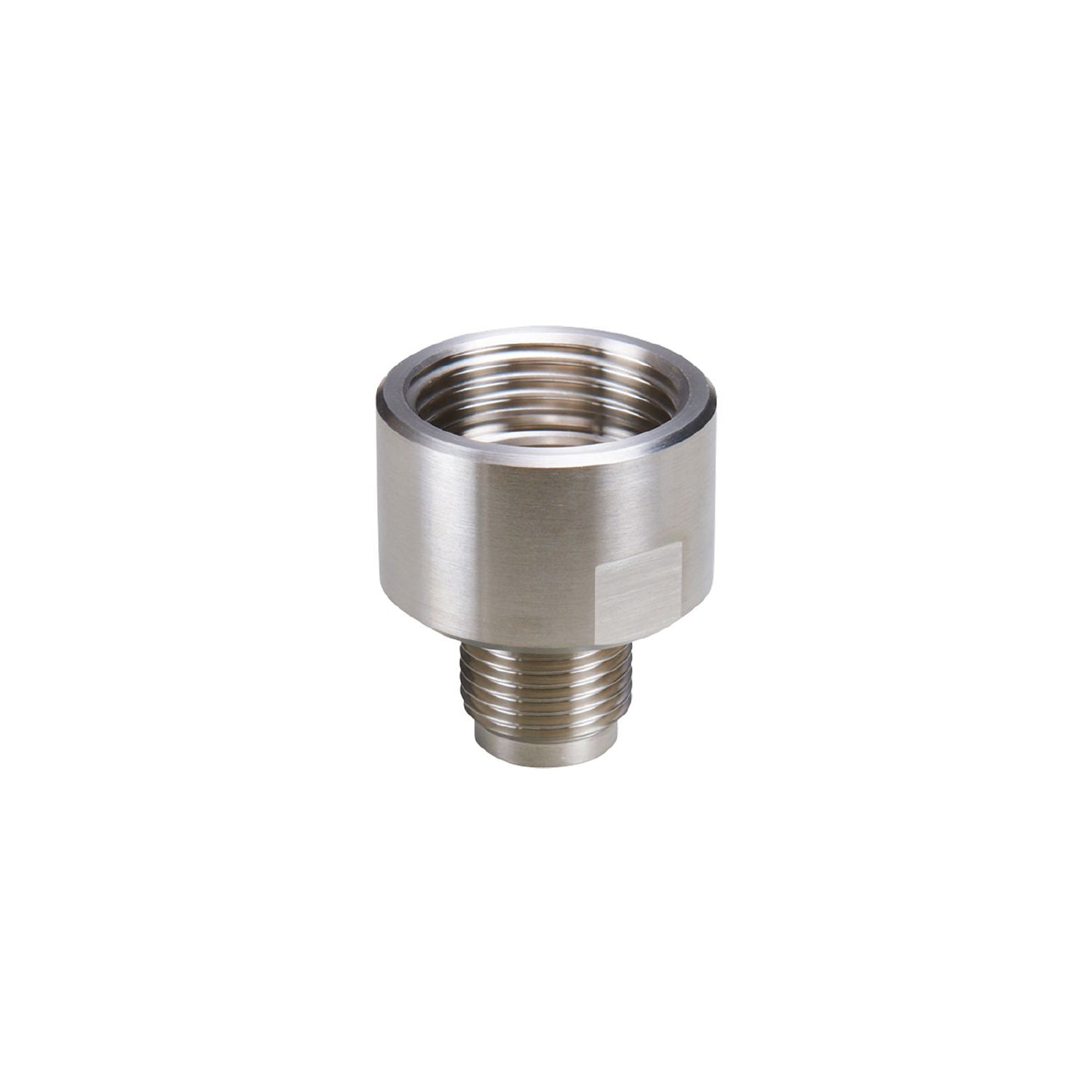

IFM E30131 - Screw-in adapter for process sensors ADAPT G1 / G1/2 A DIN EN 837-3

For the installation of pressure sensors in containers and pipes.
Easy, quick and secure mounting.
Use in industrial and hygienic applications.
High pressure rating.
Stable fixing by screwing in

Pressure rating [bar]	100

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	192
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1 Aseptoflex Vario
Process connection	threaded connection G 1/2

Accessories

Items supplied	O-rings: 1 x 24 x 2, EPDM, FDA compliant
Accessories (optional)	O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123

Pack quantity	1 pcs.
