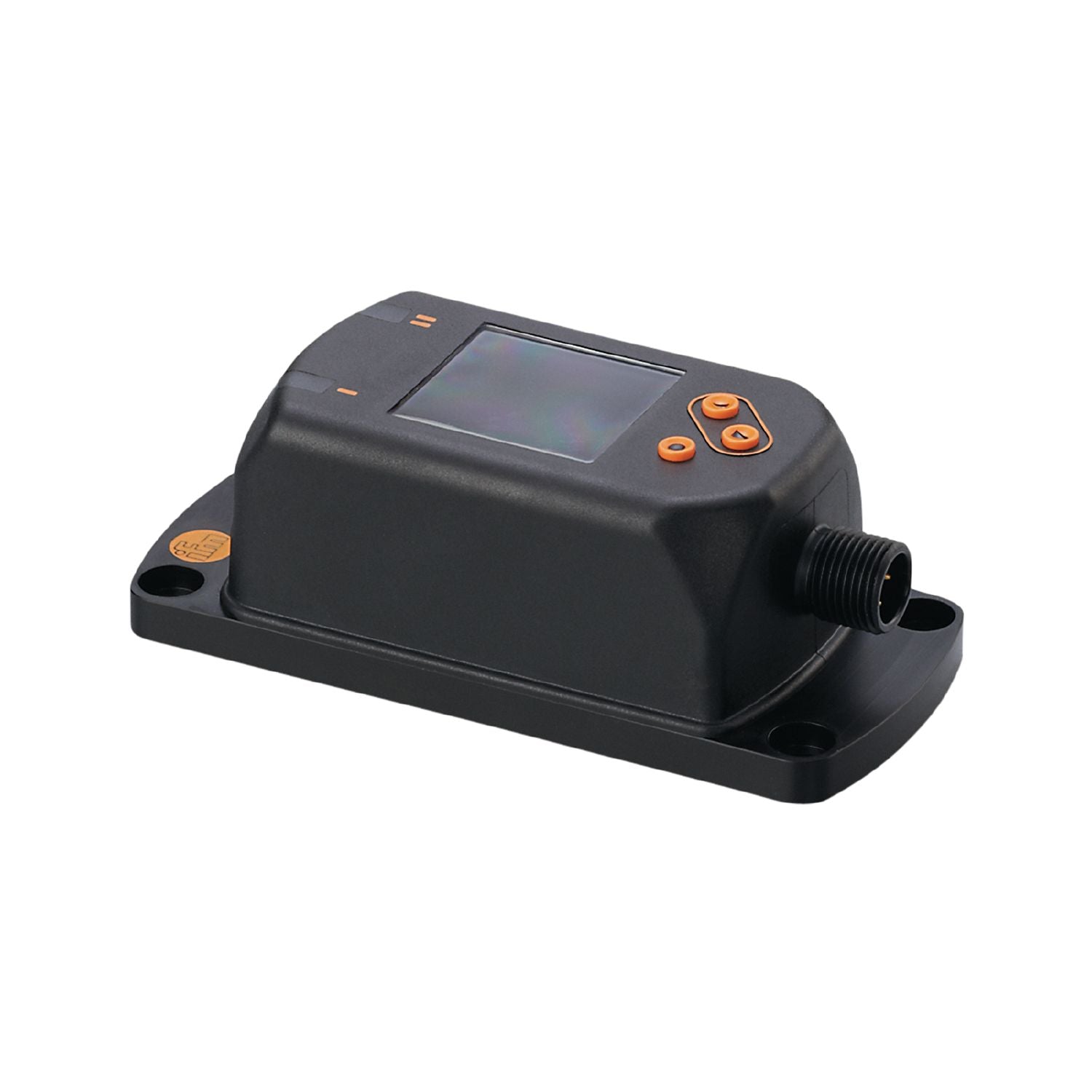

IFM E30391 - IO-Link display IO-Link DISPLAY 1,44"

With text displays and dialogue box for free text.
Colour change for text and background.
Flexible adaptation of the display, also during operation

Special feature	Gold-plated contacts
Application	display for freely definable process values, texts and messages assigned from the controller

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 47
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes

Software / programming

Parameter setting options	display, indication (figure, text, QR code)

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	no
Required master port type	A
Process data binary	6
Min. process cycle time [ms]	8.4
Supported DeviceIDs	Type of operation DeviceID default 681

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...80
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-4
Shock resistance	DIN EN 60068-2-27 20 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...50 Hz)
MTTF [years]	5.63

Weight [g]	174
Materials	stainless steel (1.4404 / 316L); PC; PBT-GF30; PPS; FKM; PA 6.6-GF30

Displays / operating elements

Display	colour display 1,44", 128 x 128 pixels 2 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; Contacts: gold-plated
