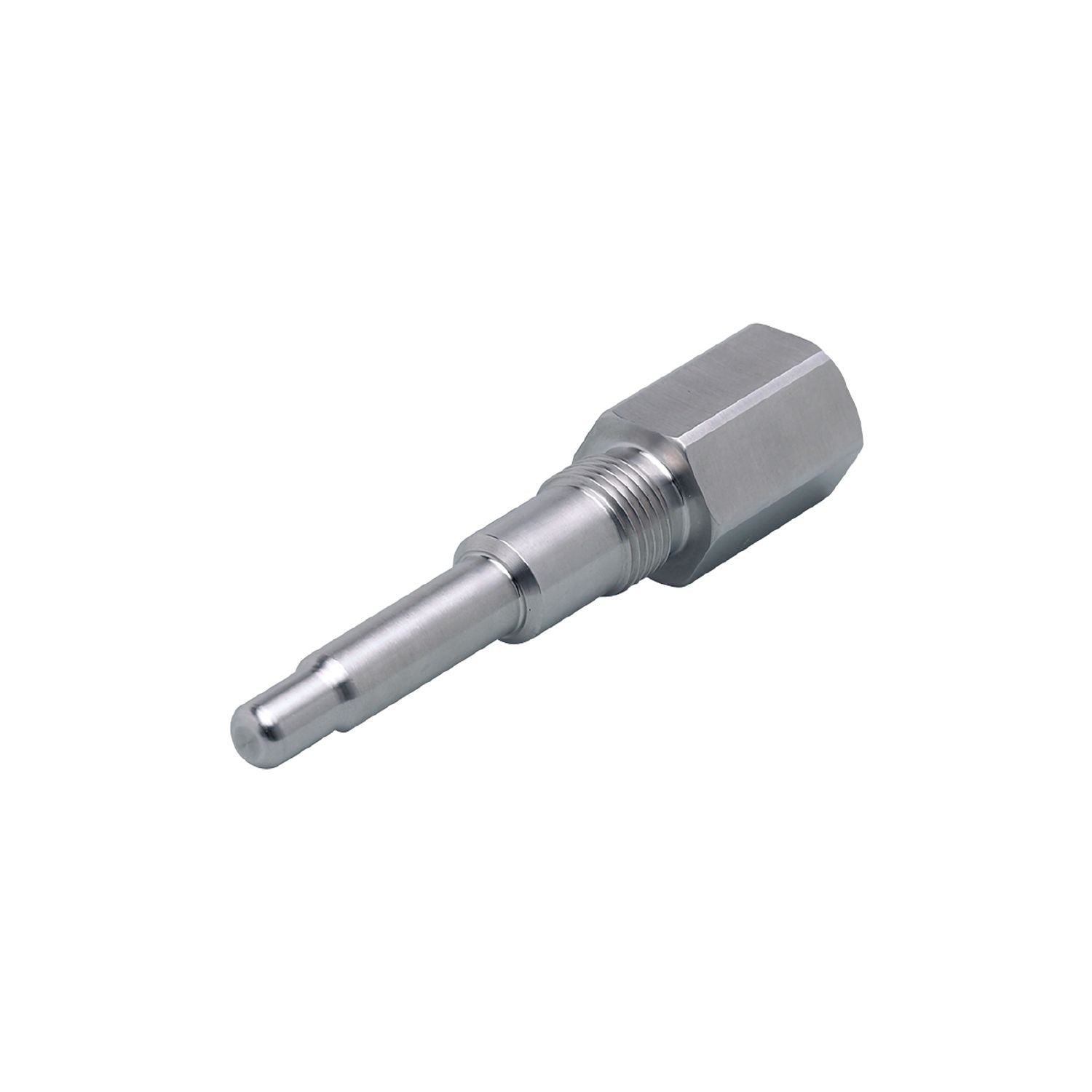

IFM E30393 - Thermowell for temperature sensors PROTECTIVE TUBE FOR TA

Efficient long-time protection of the temperature sensor.
Protection against aggressive media and high process pressures.
Easy replacement of the temperature sensor during operation.
For use in hygienic applications.
Approved for the requirements of the food and beverage industry

Design	for temperature sensors TA34xx, TAA431, TAD191
Pressure rating [bar]	300

Measuring/setting range

Probe length L [mm]	53

Weight [g]	172.9
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	30...50
Sensor connection	G 1/2 sealing cone Ø 8,2 mm
Process connection	G 1/2
Surface characteristics Ra/Rz of the wetted parts	< 0.6 / -

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30393-00 — 02.08.2005 —
