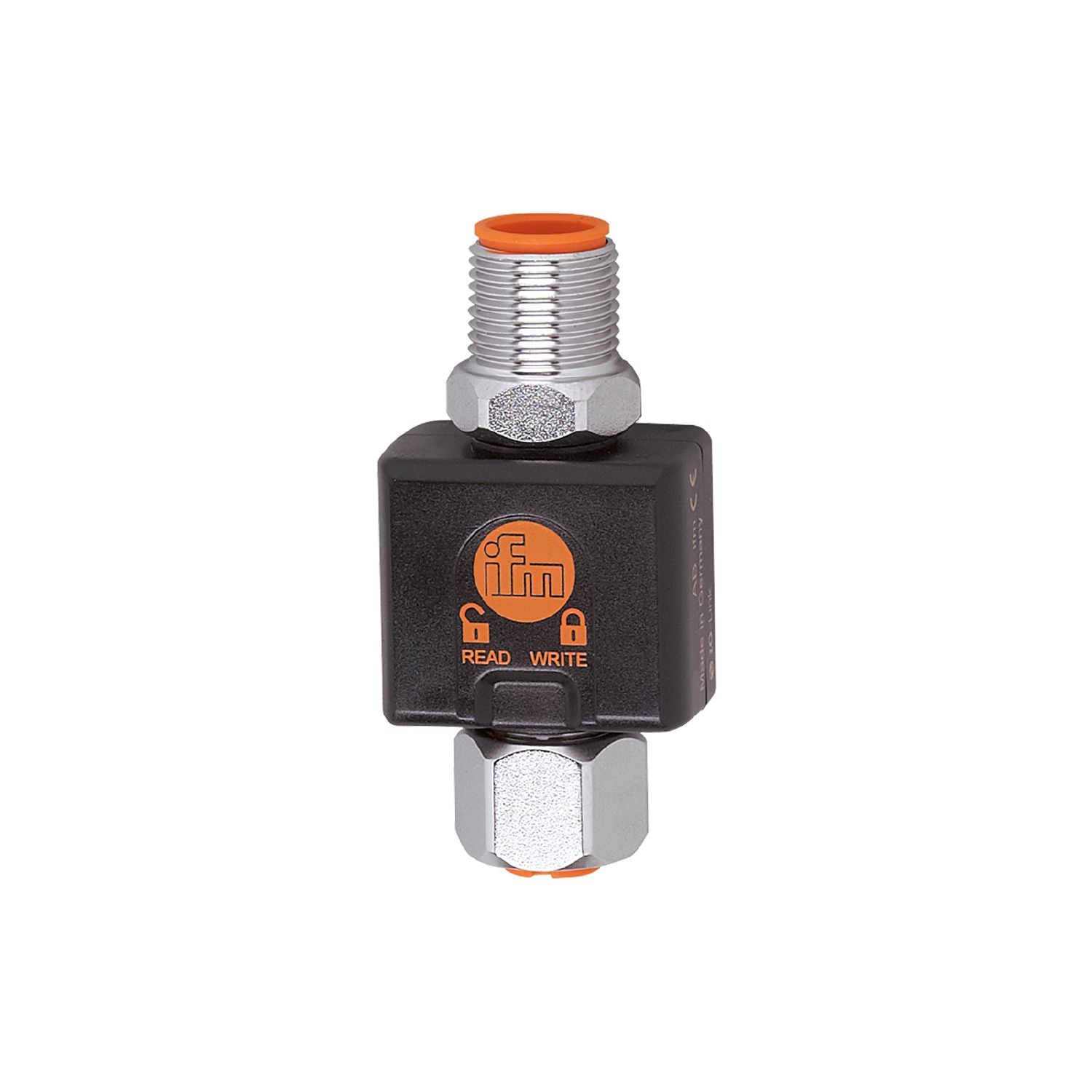

IFM E30398 - IO-Link memory plug MEMORY PLUG

Easy connection via the tried-and-tested M12 connector.
Re-writable as often as desired.
Uncomplicated replacement of a faulty unit

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes

Outputs

Output signal	IO-Link
Electrical design	PNP
Max. voltage drop switching output DC [V]	0.5
Permanent current rating of switching output DC [mA]	500;(briefly: 2 A / 50 ms)
Type of short-circuit protection	depending on the connected sensor

Interfaces

Communication interface	IO-Link

Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
Profiles	no profile
SIO mode	no
Required master port type	A
Min. process cycle time [ms]	2.5

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 (Draft)
Number of ports class A	1

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 61000-6-2
Shock resistance	DIN IEC 68-2-27 50 g 11 ms
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years]	655.69

Weight [g]	116.5
Dimensions [mm]	M12 x 1
Thread designation	M12 x 1
Materials	PA PACM 12 (TROGAMID); PET
Sealing material	FKM

Displays / operating elements

Display	operation 2 x LED, green

Remarks	only for positive switching sensors The memory plug acts as master if it is connected with a sensor. The memory plug acts as device if it is used with the service program. operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L); Sealing: FKM
