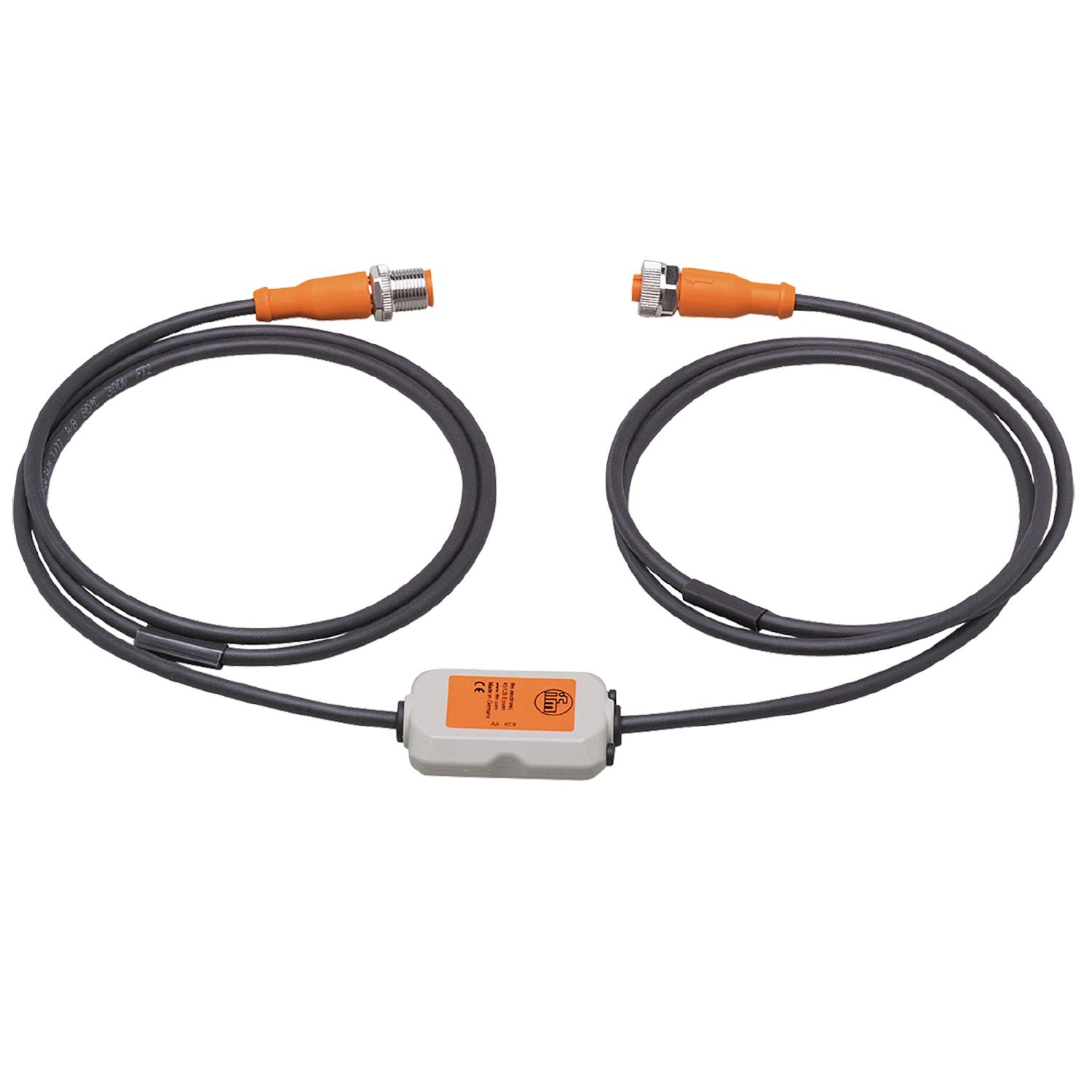

IFM E30406 - Voltage converter VOLTAGE CONVERTER

Reliable supply of sensors with 24 V DC operating voltage.
Use in electric systems with a very low operating voltage.
Easy connection via the tried and tested M12 connector

Nominal voltage DC [V]	9...27
Current consumption [mA]	< 500
Protection class	III
Reverse polarity protection	yes

Outputs

Short-circuit protection	yes

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 40

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 15 kV AD EN 61000-4-3 HF radiated 30 V/m (80...1000 MHz) EN 61000-4-4 Burst 2 kV coupling clamp EN 61000-4-6 HF conducted 10 V (0,15...80 MHz)

Weight [g]	151
Materials	PBT-GF20
Sealing material	FKM

Pack quantity	1 pcs.

Electrical connection - socket

	Cable: 1 m, PUR
	Connector: 1 x M12; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM
