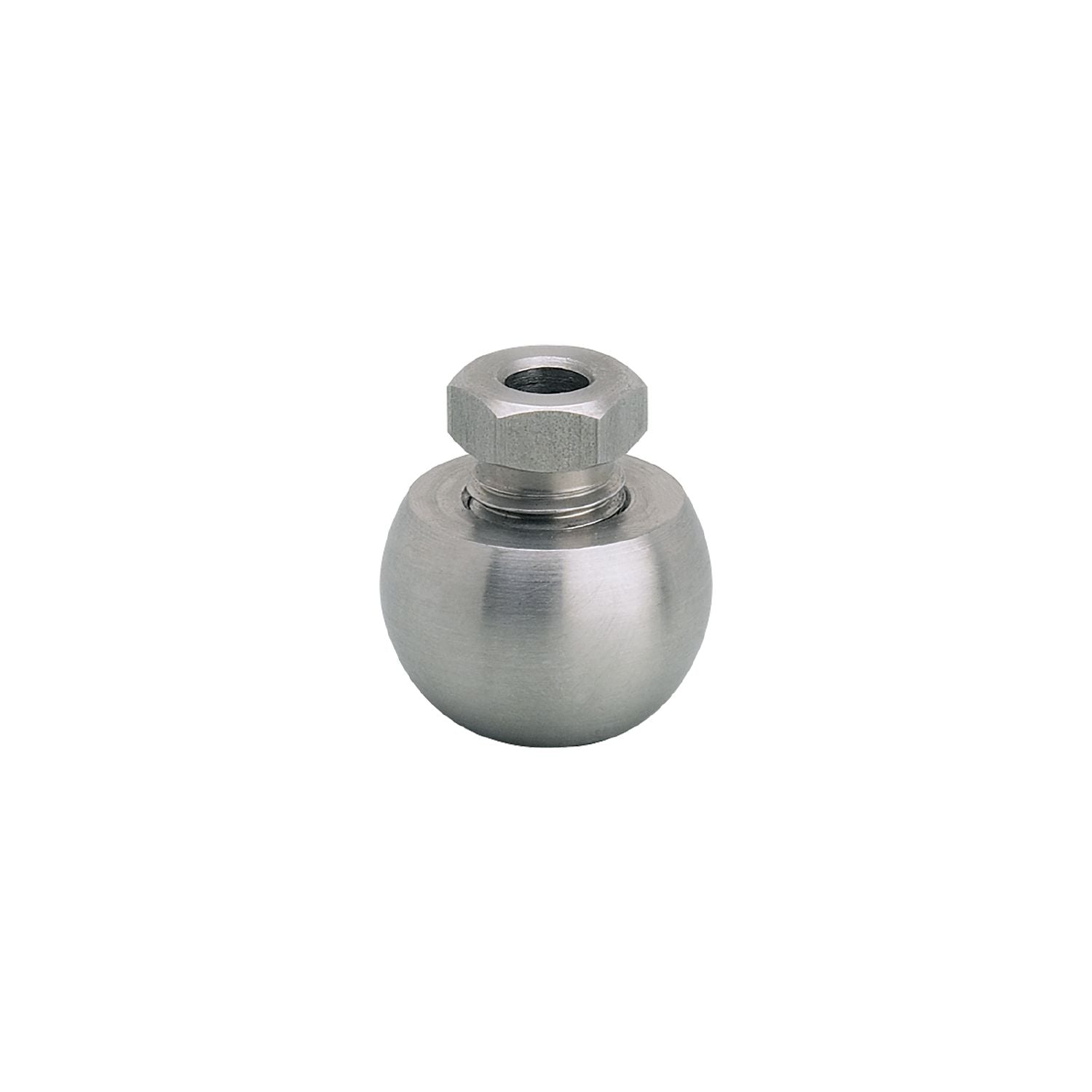

IFM E30407 - Welding adapter for process sensors WELDING ADAPT D6 HYGIENIC

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating.
Easy adjustment of the immersion depth of the sensor

Design	for temperature sensors Ø 6 mm
Installation	Clamp fitting
Pressure rating [bar]	10

Operating conditions

Ambient temperature [°C]	-10...150

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	56.1
Materials	stainless steel (1.4404 / 316L); clamping ring: PEEK
Tightening torque [Nm]	< 10
Sensor connection	Ø 6 mm
Process connection	welding adapter Ø 25 mm

Pack quantity	1 pcs.
