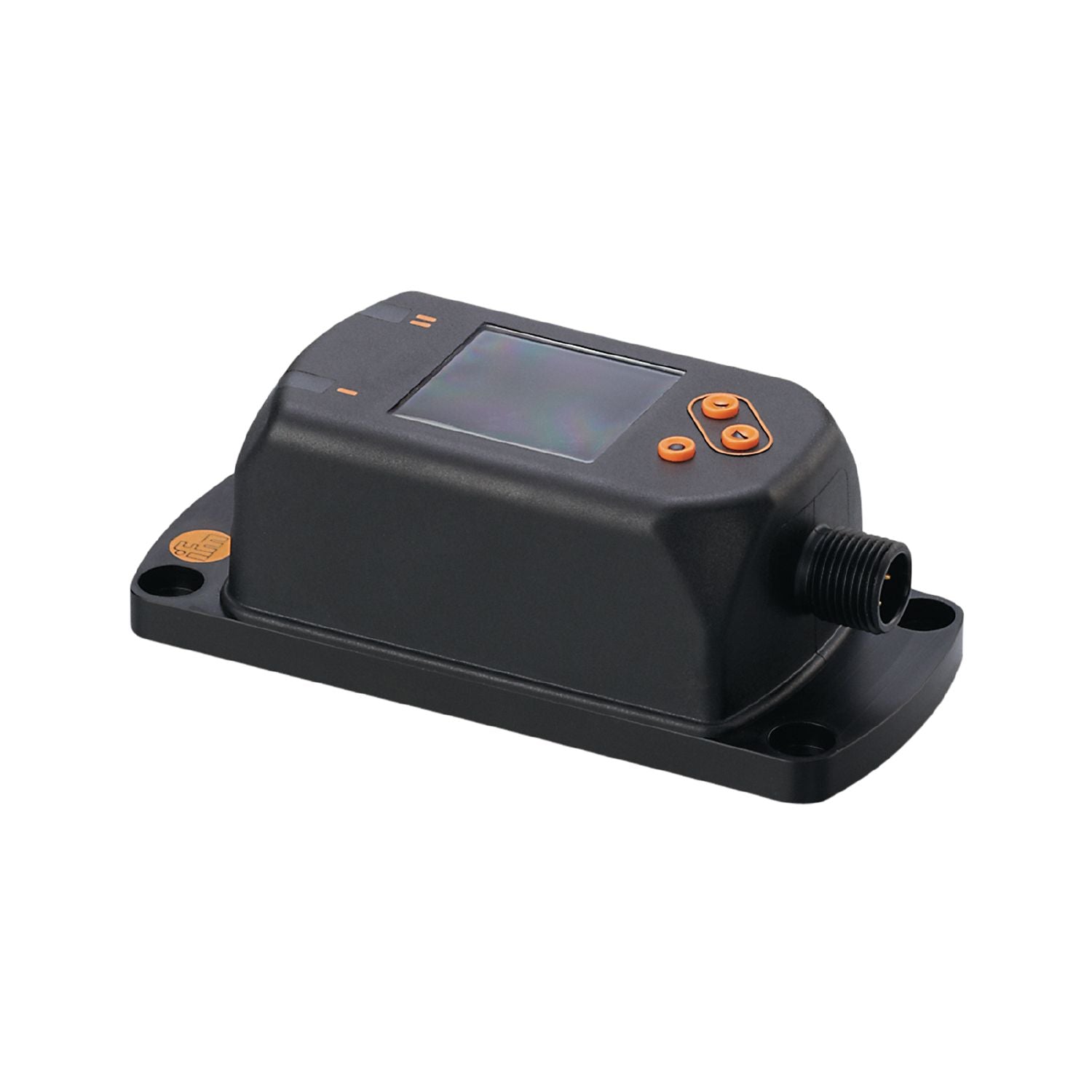

IFM E30443 - IO-Link display IO-LINK MASTER DISPLAY 1,44

For displaying up to four process values.
Flexible adaptation of the display, also during operation.
Brightness, orientation and background colour adaptable

Special feature	Gold-plated contacts
Application	display of all process values of the sensors connected to the same master

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 47
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes

Software / programming

Parameter setting options	display, indication

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	no
Required master port type	A
Min. process cycle time [ms]	11.2
Supported DeviceIDs	Type of operation DeviceID default 824

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...80
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-4
Shock resistance	DIN EN 60068-2-27 5 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 5 g (10...50 Hz)
MTTF [years]	398

Weight [g]	171.5
Materials	stainless steel (1.4404 / 316L); PC; PBT-GF30; PPS; FKM;

Displays / operating elements

Display	colour display 1,44", 128 x 128 pixels 2 x LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
