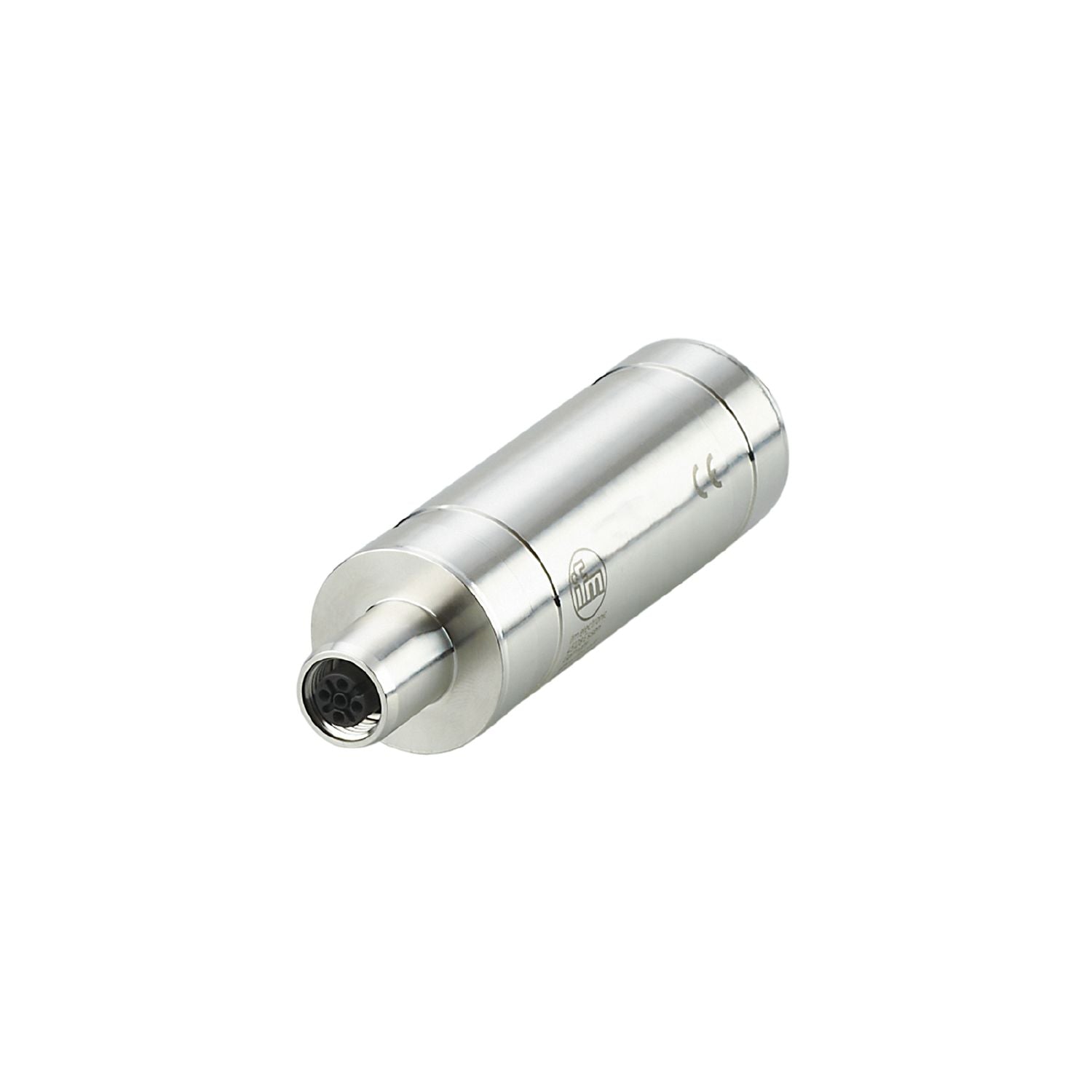

IFM E30444 - IO-Link repeater IO-LINK REPEATER

IO-Link range increased up to 240 m.
Series connection of max. 3 repeaters possible.
Easy set-up with "plug & play".
Use in the food and beverage industry

Special feature	Gold-plated contacts

Operating voltage [V]	18...30 DC
Nominal voltage DC [V]	24
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes;(on the master side)
Overvoltage protection	yes;(integrated)
Surge protection for voltage	between L-, pin 5 and ground between L+, signal cables and ground Umax = 45 V for surge Umax = 90 V for surge Umin = 30 V for normal operation Umin = 60 V for normal operation
Surge protection for current	surge current leakage current Imax = 25 A Imax = 10 µ
Power-on delay time [s]	< 2;(per repeater)
Current rating per port [A]	0.84;(Port Class A; Port Class B: 2)
Delay time acyclic data	up to 2 cycles;(per repeater)
Delay time process data	up to 1 cycle;(per repeater)

Interfaces

Communication interface	IO-Link
Unterstützte IO-Link Revision	1.0; 1.1
Unterstützte Masterportklasse	A / B
Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
SDCI standard	IEC 61131-9
SIO mode	no

Operating conditions

Ambient temperature [°C]	-25...65
Storage temperature [°C]	-40...85
Protection	IP 68; IP 69K;(7 days / 3 m water depth / 0.3 bar: IP 68)

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-4 in plastic or open metal tanks
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	409
UL approval	File number UL E205959

Weight [g]	212
Materials	stainless steel (1.4404 / 316L); PEI; PA reinforced fibre; FKM; Grounding clamp: stainless steel (1.4301 / 304)

Displays / operating elements

Display	1 x LED operation green IO-Link green fault red

Remarks	For information on the maximum cable length please refer to the operating instructions. functional grounding via premounted grounding clamp for further information please see the operating instructions
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30444-01 — 13.04.2023 —
