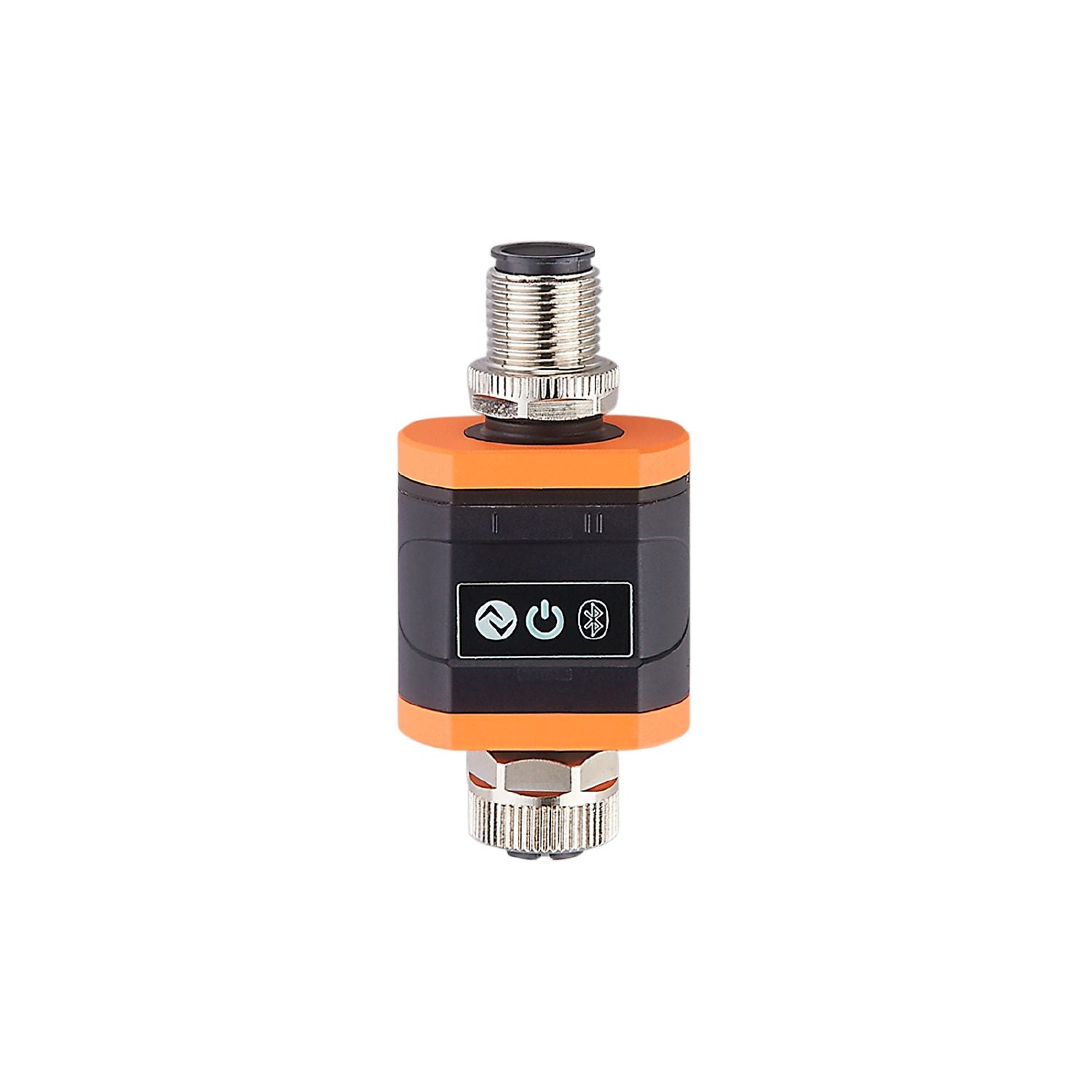

IFM E30446 - IO-Link Bluetooth adapter IO-LINK INLINE BLUETOOTH ADAPTER

Transmission of all process values and events from a sensor.
ifm moneo blue free of charge for iOS and Android.
Extensive history memory

Special feature	Gold-plated contacts
Radio approval for	USA; Canada; EU/RED; Australia; Japan; Namibia; Brazil; China; India; Singapore; Mexico; South Africa; Malaysia; Vietnam; Chile; Thailand; Taiwan; South Korea; Indonesia
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	18...30 DC
Nominal voltage DC [V]	24
Current consumption [mA]	30...830;(24 V DC, full load)
Protection class	III
Reverse polarity protection	yes

Software / programming

Parameter setting options	process value recording

Interfaces

Communication interface	IO-Link; Bluetooth

Transmission standard	BLE 4.0; BLE 4.1; BLE 4.2; EDR 2.0; EDR 2.1
Frequency band	2,4 - 2,482 GHZ
Transmission power [mW]	10;(10 dBm)
Range	typ. 20 m

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.0; 1.1
SDCI standard	IEC 61131-9
Required master port type	A

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-4
Shock resistance	DIN EN 60068-2-27 15 g (6 ms)
Vibration resistance	DIN EN 60068-2-6 2 g (10...150 Hz)
MTTF [years]	285
UL approval	File number UL E205959

Weight [g]	88.5
Materials	stainless steel (1.4404 / 316L); brass (2.0401); PA; PBT; FKM; Sealing: FKM;

Displays / operating elements

Display	operation 1 x LED, green IO-Link 1 x LED, yellow Bluetooth 1 x LED, blue

Pack quantity	1 pcs.
