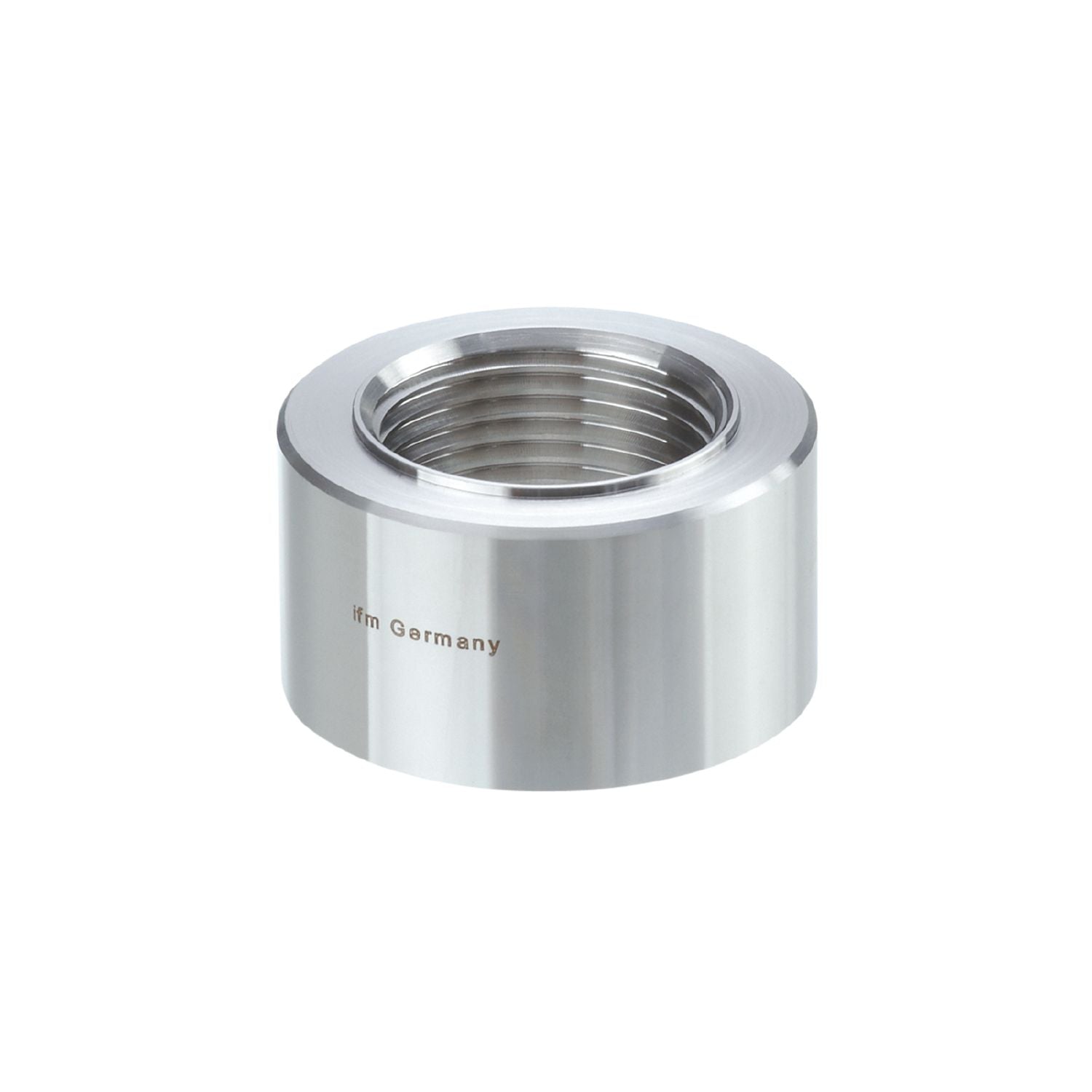

IFM E30498 - Welding adapter for process sensors WELDING ADAPT G1 V4A

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating

Design	with leakage port
Pressure rating [bar]	16
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	312.8
Materials	stainless steel (1.4435 / 316L)
Sensor connection	G 1 sealing cone
Process connection	welding adapter Ø 50 mm
Surface characteristics Ra/Rz of the wetted parts	0.4 / 4

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30498-00 — 15.05.2020 —
