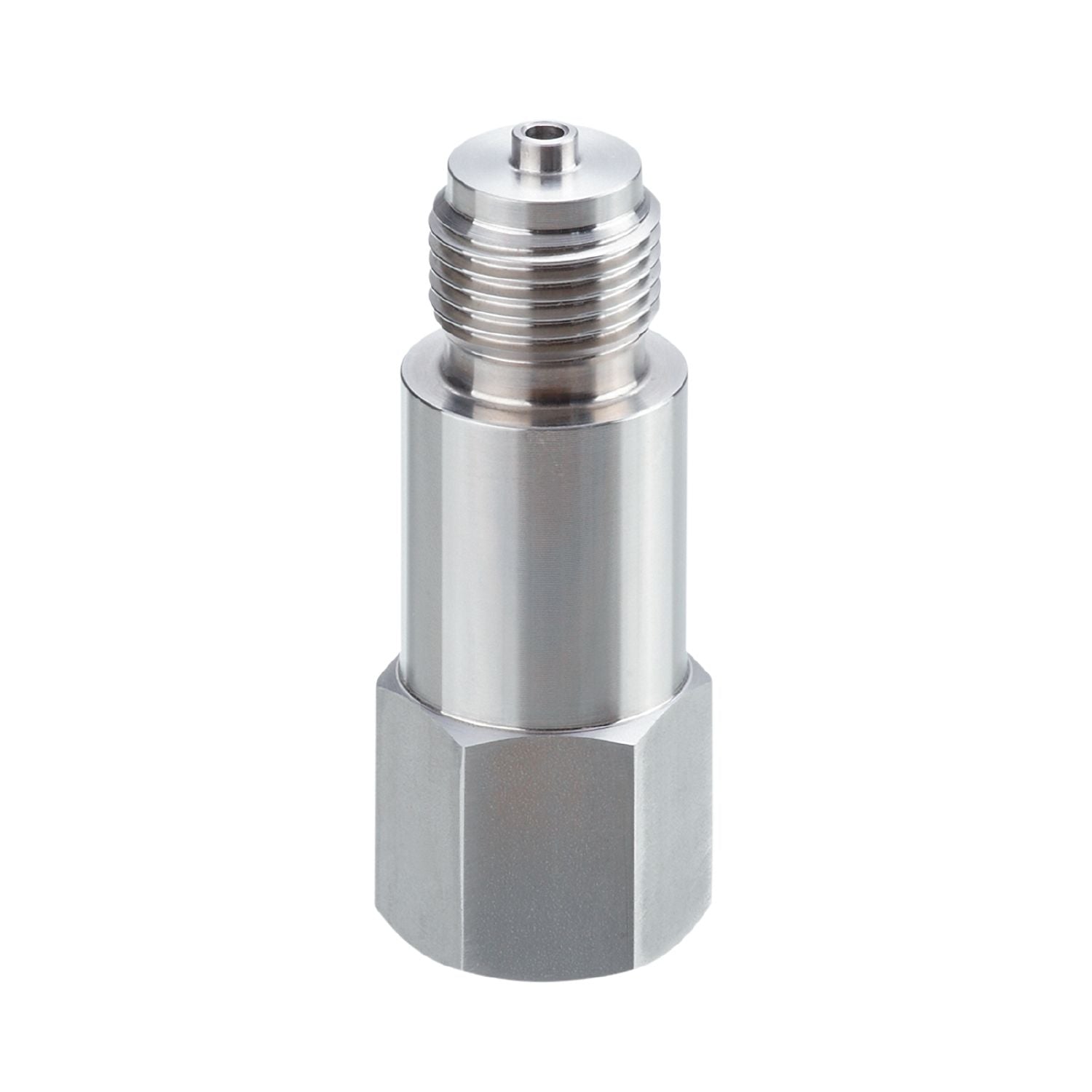

IFM E30507 - Screw-in adapter for process sensors GAUGE ADAPTER DIN16281 1.4571

Efficient protection against too much heat

Design	Zwischenstück DIN 16281 - 20 St
Application	industrial application
Installation	for mounting on an even surface
Pressure rating [bar]	400

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	248
Materials	stainless steel (1.4571/316Ti )
Sensor connection	G 1/2 internal thread
Process connection	threaded connection G 1/2 external thread

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30507-00 — 23.09.2020 —
