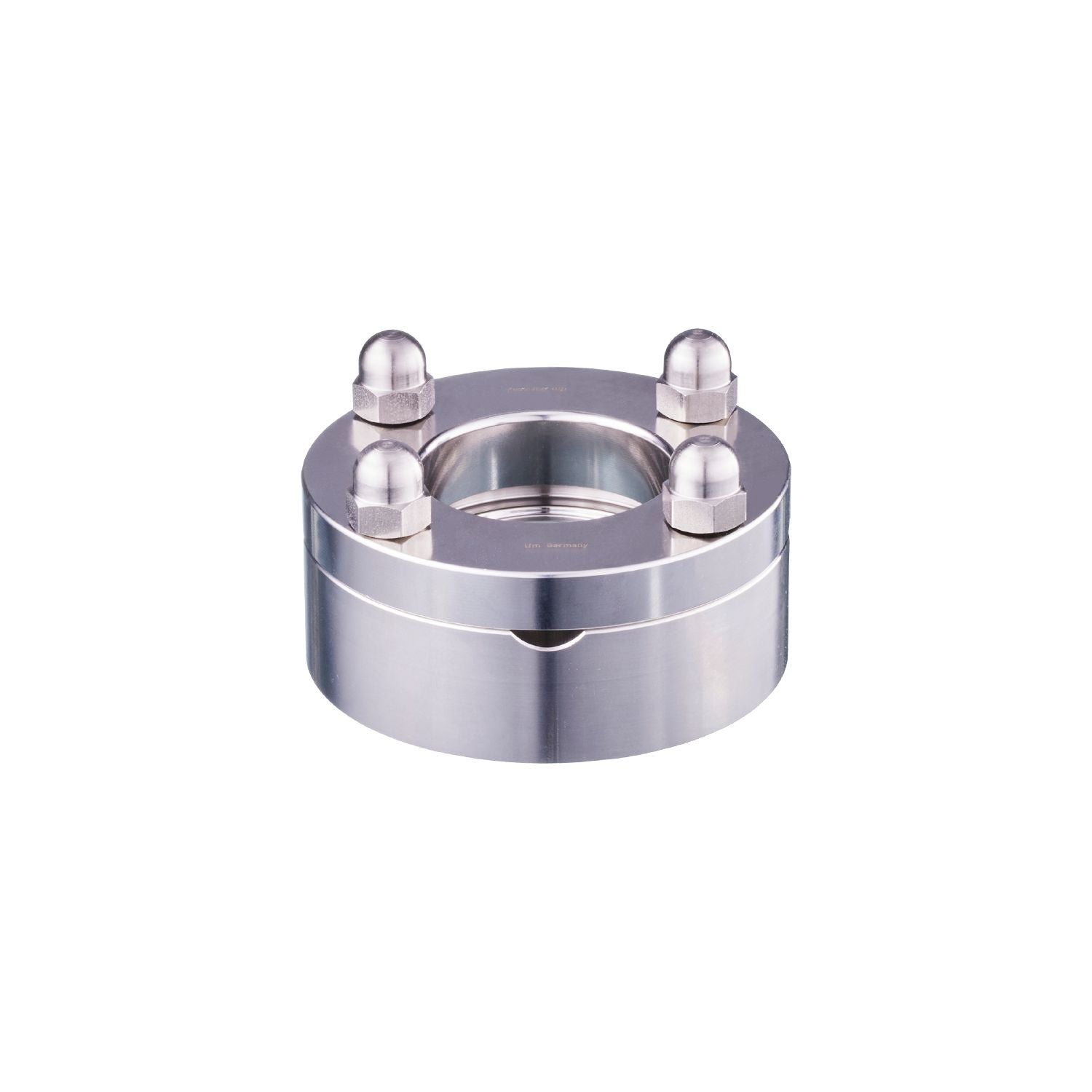

Welding adapter for process sensors. For use in industrial and hygienic applications. Robust stainless steel design for use in harsh industrial environments
Pressure rating [bar]
7
Note on pressure rating
Valid if the sensor is properly clamped/screwed using the half-shells and a seal which is suitable for the application.
Tests / approvals
Pressure Equipment Directive
A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions
The compatibility between medium andproduct material has to be checked in all applications.
Clampadapter DIN 32676 (ISO 2852) Da=50,5; für DIN Abdichtung DN40 mit Di=38
Process connection
Einschweißadapter D=85mm
Accessories
Items supplied
welding adapter, DIN 32676 (ISO 2852)
half shell, ; stainless steel (1.4404 / 316L)
set screw M8 x 25, DIN 796; stainless steel (1.4404 / 316L)
cap nut M8, DIN 1587 ; stainless steel (1.4404 / 316L)
Accessory required
Sealing nach DIN 32676(ISO 2852)
Pack quantity
1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30533-00 — 15.01.2024 —
