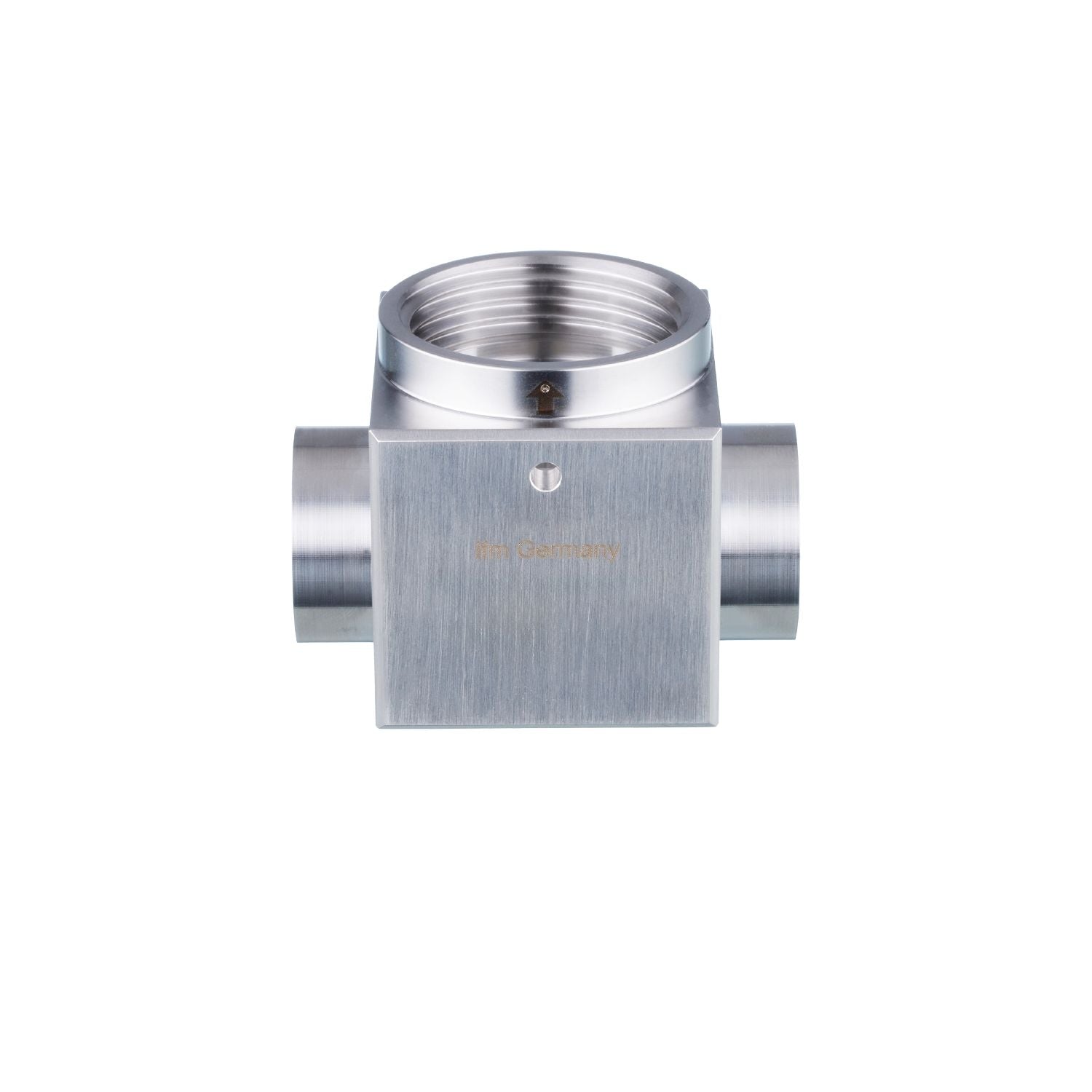

IFM E33250 - T-piece T-ADAPT G1 DN25

Safe installation of process sensors in pipes.
For use in industrial and hygienic applications.
Robust stainless steel housing

Pressure rating [bar]	25
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	305.5
Materials (wetted parts)	stainless steel (1.4404 / 316L) ; surface characteristics : Ra<0,8 / Rz 4
Sensor connection	G 1 Aseptoflex Vario
Process connection	welding adapter Ø 29 mm
Sealing	Gasket

Accessories

Items supplied	O-ring: 1 x 24 x 2, EPDM, FDA compliant, E30054
Accessories (optional)	O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123

Pack quantity	1 pcs.
