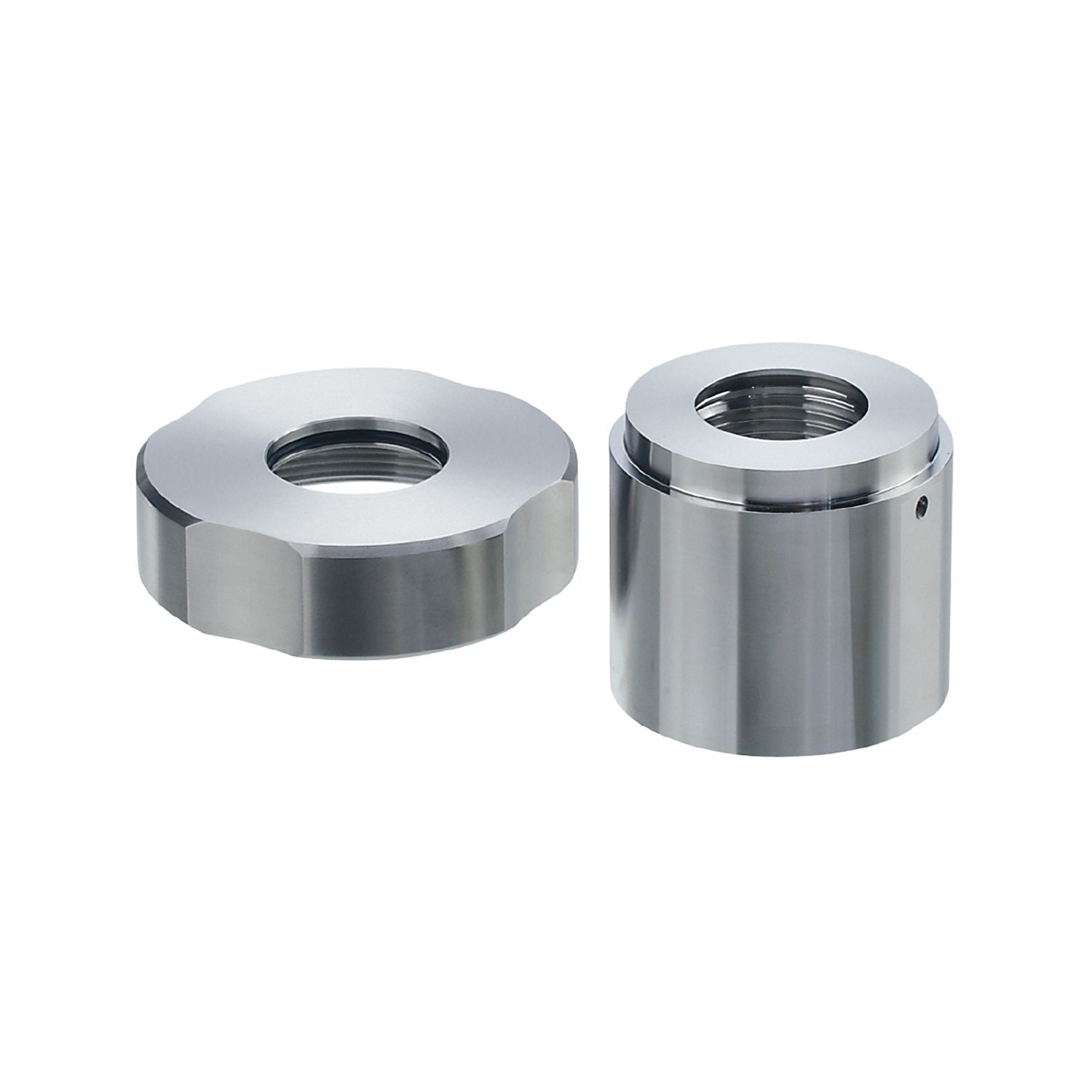

IFM E33350 - universal process adapter ADAPT UNI

For installing process sensors in tanks.
Easy, quick and secure mounting.
Particularly suited for use in hygienic applications.
Stainless steel adapter for the requirements of the food and beverage industry.
High pressure rating

Design	accessories for, PY200x, :(Anderson Weld-In Tank Shell: 71060A0003), PM17xx, : (Anderson Weld-In Tank Shell:71060A0004)
Pressure rating [bar]	16

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	1019.3
Materials (wetted parts)	stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
Sensor connection	G 1 Aseptoflex Vario
Process connection	universal process adapter Anderson Weld-In Tank Shell: 71060A0003; 71060A0004
Sealing	Gasket
Hygienic equipment class to DIN 11866	H4

Accessories

Items supplied	O-ring: 24 x 2, EPDM, FDA compliant, E30054 O-ring: 30 x 2, FKM Gasket, $silicone 3A and FDA compliant
Accessories (optional)	O-ring: 24 x 2, FKM, FDA compliant, E30123 sealing ring, PEEK, FDA compliant, E30124

Pack quantity	1 pcs.
