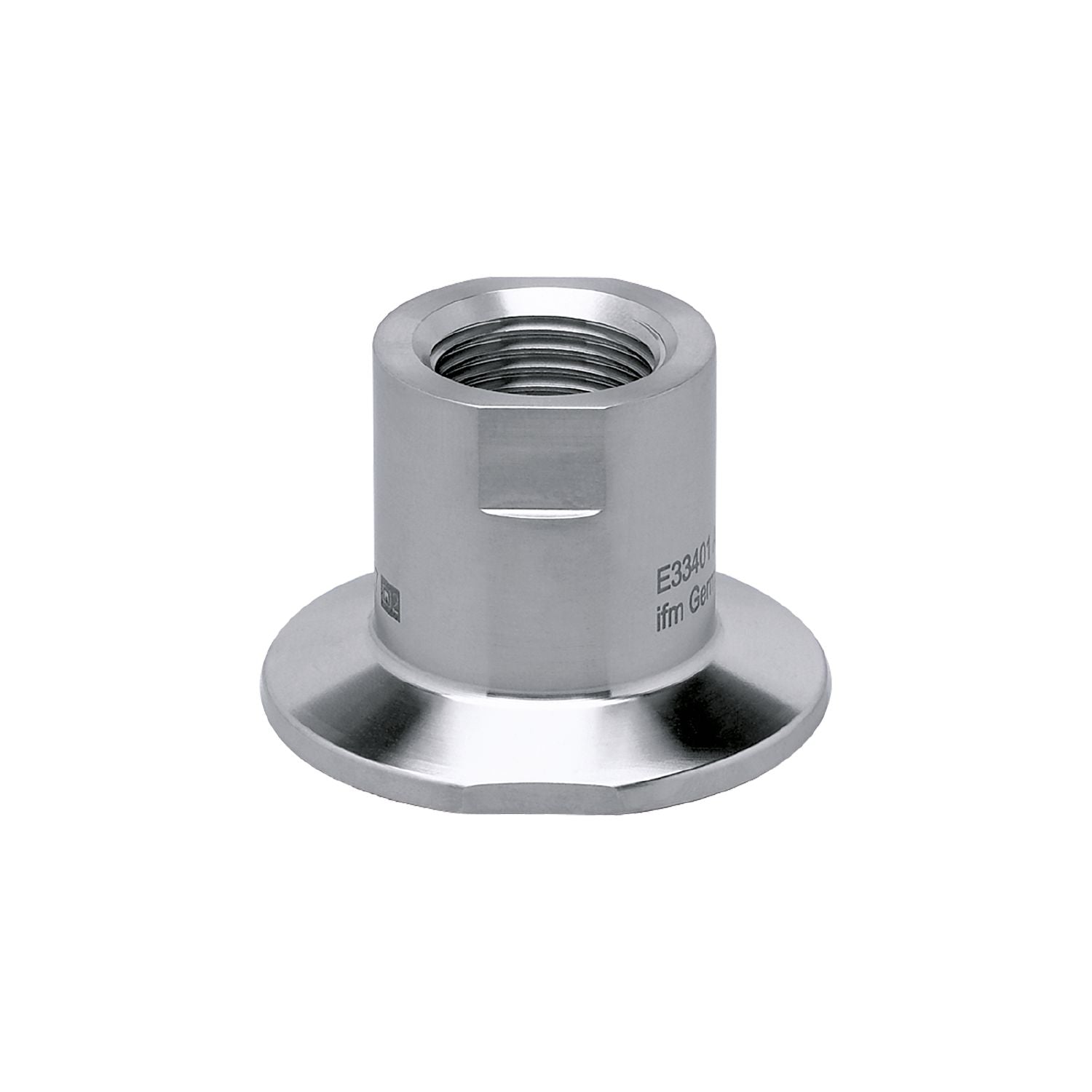

IFM E33401 - Process adapter Tri-Clamp ADAPT G1/2-CLAMP DIN32676/1

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
Particularly suited for use in hygienic applications.
Stainless steel adapter for the requirements of the food and beverage industry.
High pressure rating

Pressure rating [bar]	25
MAWP (for applications according to CRN) [bar]	25

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	204.5
Materials	stainless steel (1.4435 / 316L)
Sensor connection	G 1/2 sealing cone
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
Surface characteristics Ra/Rz of the wetted parts	0.4 / 4

Pack quantity	1 pcs.
