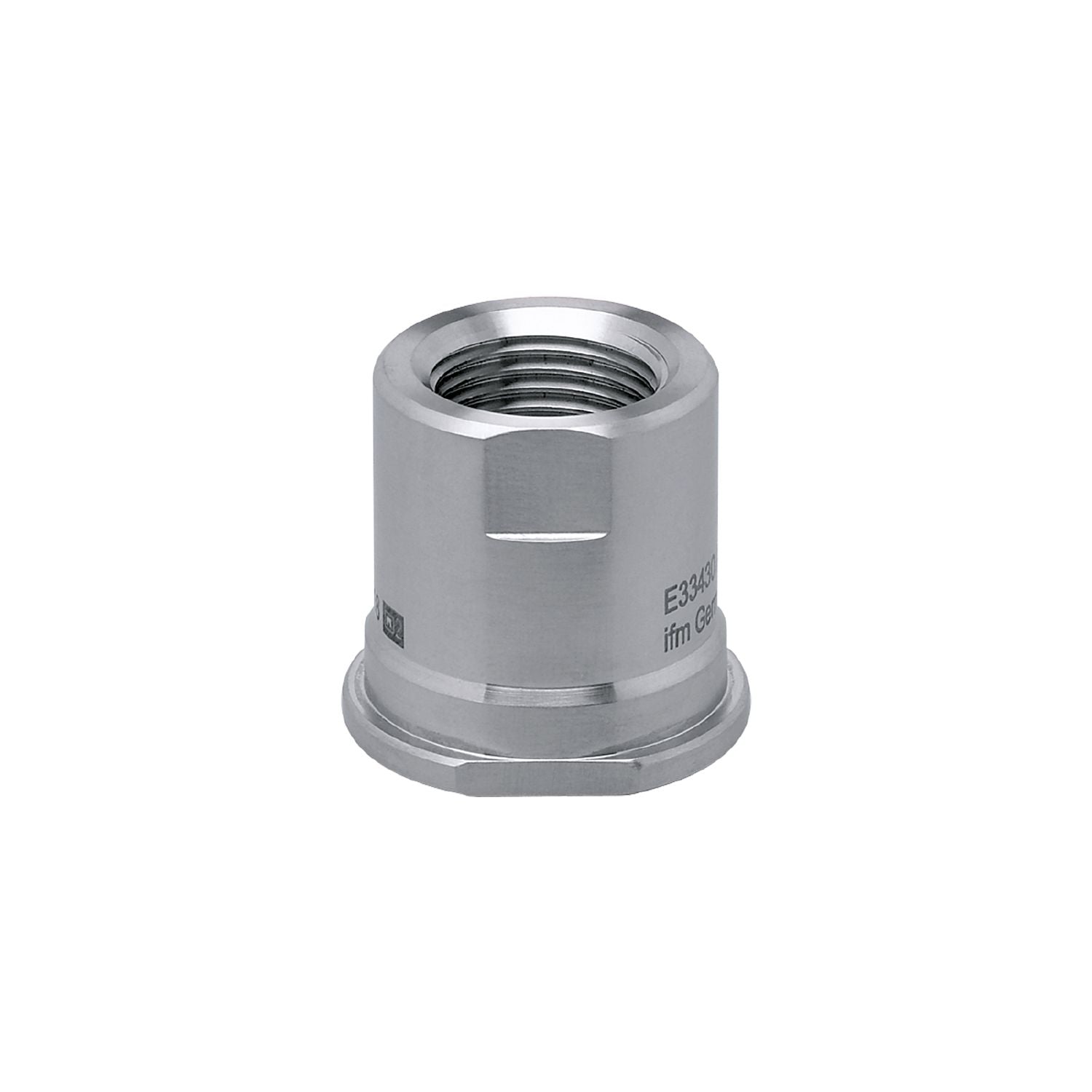

IFM E33430 - Process adapter for SMS pipe fitting ADAPT G1/2-SMS DN25

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
Particularly suited for use in hygienic applications.
Stainless steel adapter for the requirements of the food and beverage industry.
High pressure rating

Pressure rating [bar]	40

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	175
Materials	stainless steel (1.4435 / 316L)
Sensor connection	G 1/2 sealing cone
Process connection	SMS pipe fitting DN25
Surface characteristics Ra/Rz of the wetted parts	0.4 / 4

Pack quantity	1 pcs.
