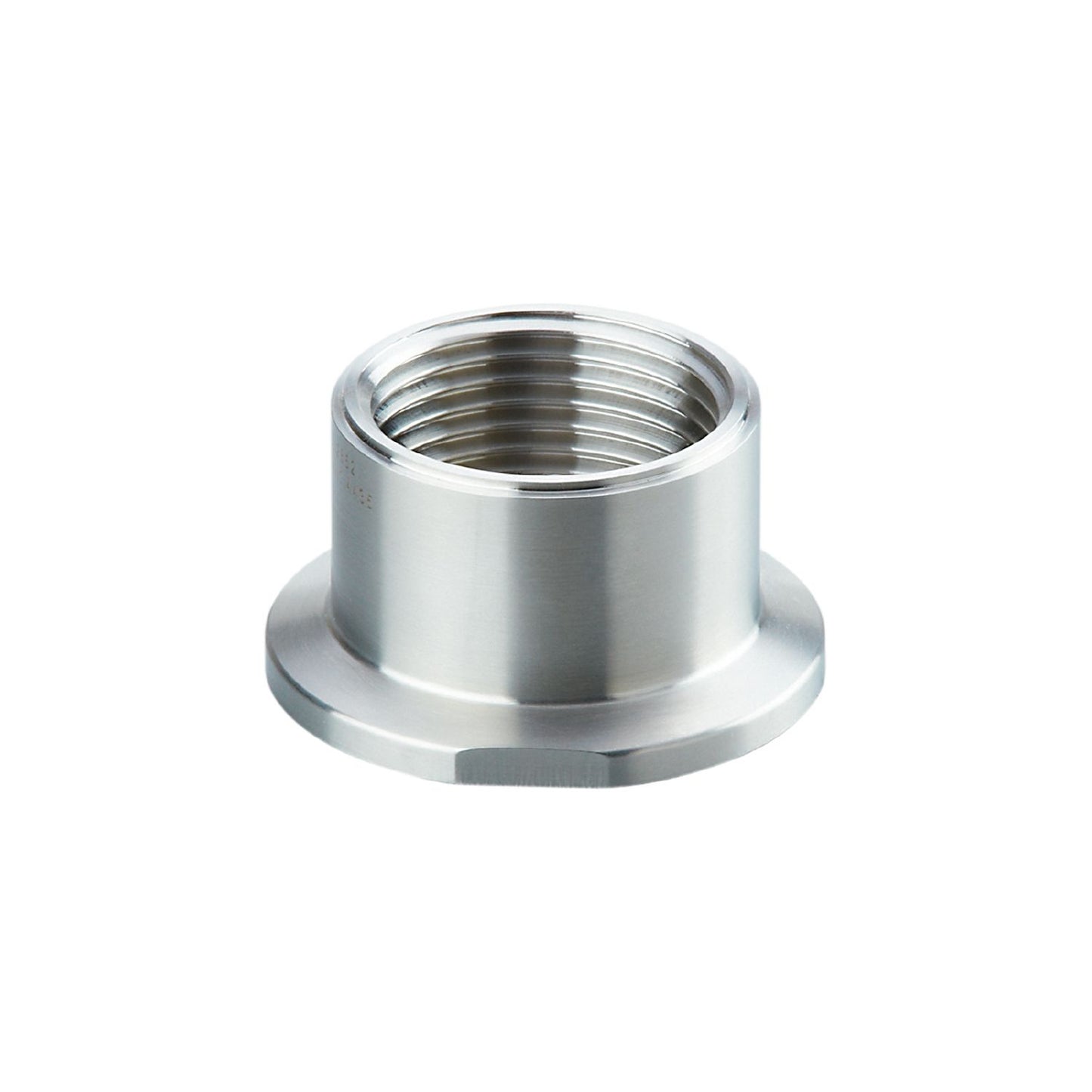

IFM E33602 - Process adapter Tri-Clamp ADAPT G1-CLAMP ISO2852/1-1.5

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
Particularly suited for use in hygienic applications.
Stainless steel adapter for the requirements of the food and beverage industry.
High pressure rating

Design	with leakage port
Pressure rating [bar]	100

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	156.5
Materials (wetted parts)	stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
Sensor connection	G 1 sealing cone
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
Sealing	Gasket
Hygienic equipment class to DIN 11866	H4

Accessories

Items supplied	O-ring: 26 x 3, EPDM, FDA compliant, E30438 O-ring: 26 x 3, FKM, FDA compliant, E30437

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33602-00 — 07.09.2016 —
