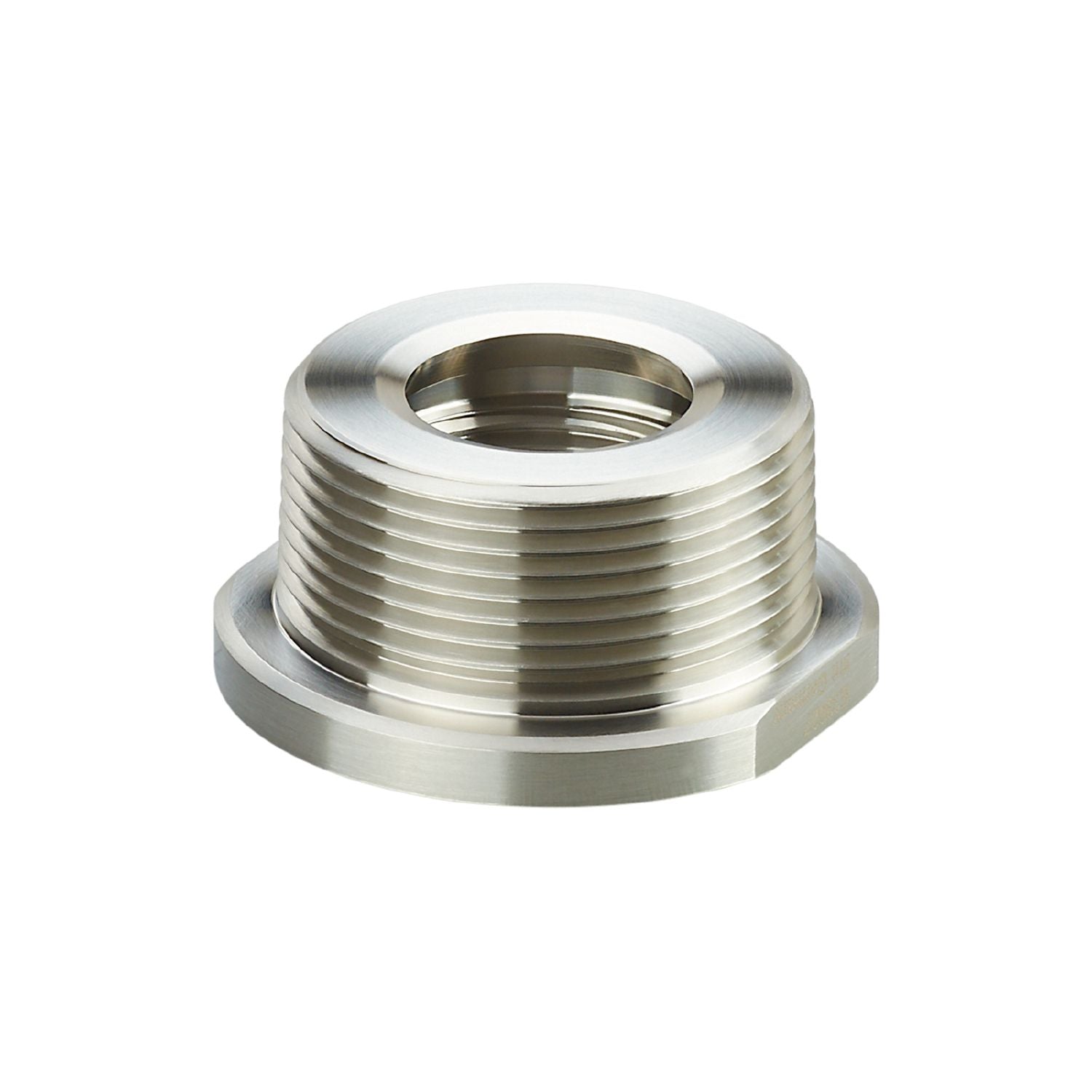

IFM E33627 - Screw-in adapter for process sensors ADAPT G1 - 1 1/2 NPT

For the installation of pressure sensors in containers and pipes.
Easy, quick and secure mounting.
Use in industrial and hygienic applications.
High pressure rating.
Stable fixing by screwing in

Pressure rating [bar]	50
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	299.6
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1 sealing cone
Process connection	threaded connection 1 1/2" NPT
Surface characteristics Ra/Rz of the wetted parts	0.4 / 4

Pack quantity	1 pcs.
