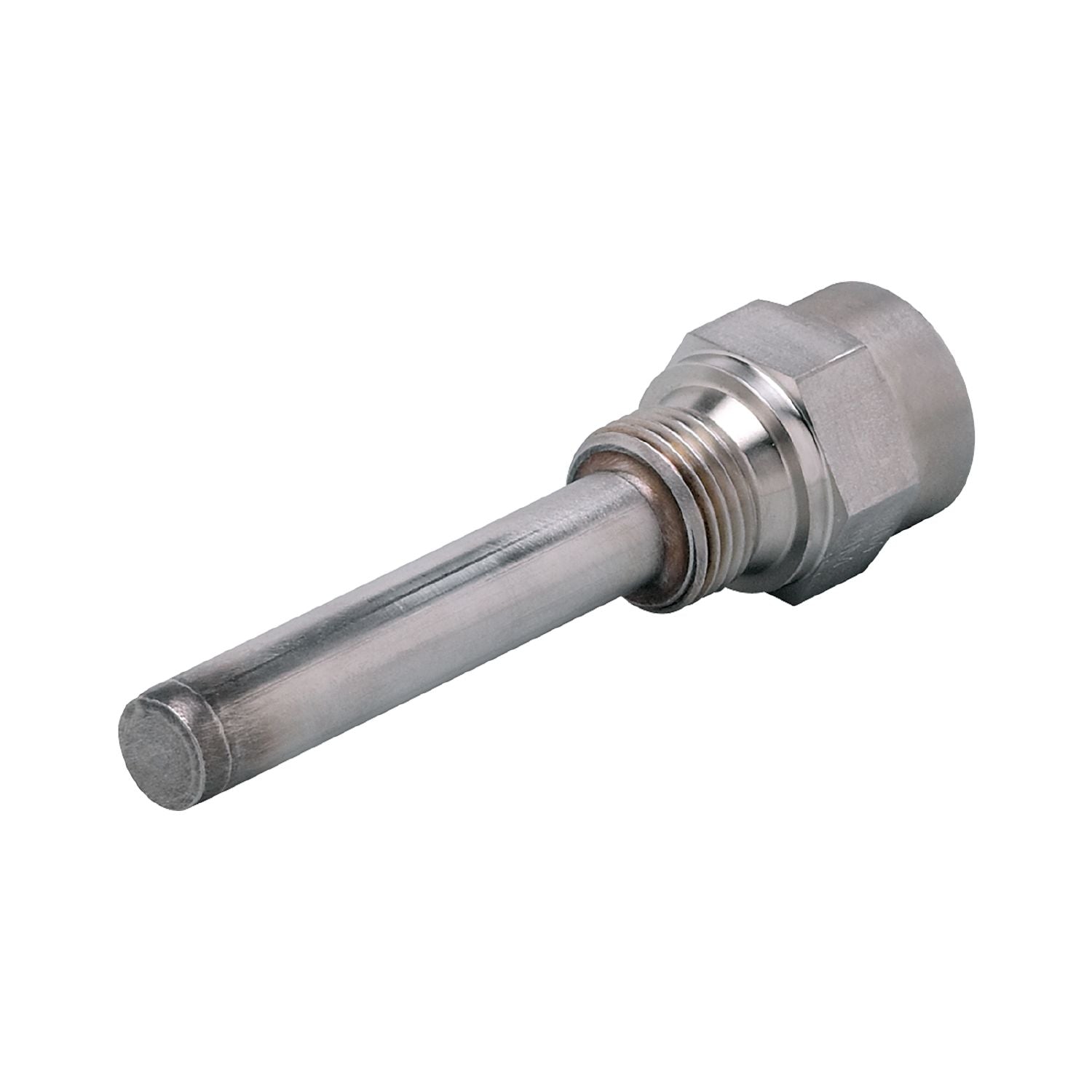

IFM E35020 - Thermowell for temperature sensors THERMOWELL D10/G1/2/L=200

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
High pressure rating.
Simple process connection via adapter.
Robust stainless steel housing for the requirements of harsh industrial environments

Design	for temperature sensors EL = 200 mm
Pressure rating [bar]	16

Measuring/setting range

Probe length L [mm]	182

Weight [g]	161.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1/2 Ø 10 mm
Process connection	G 1/2

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E35020-00 — 06.03.2003 —
