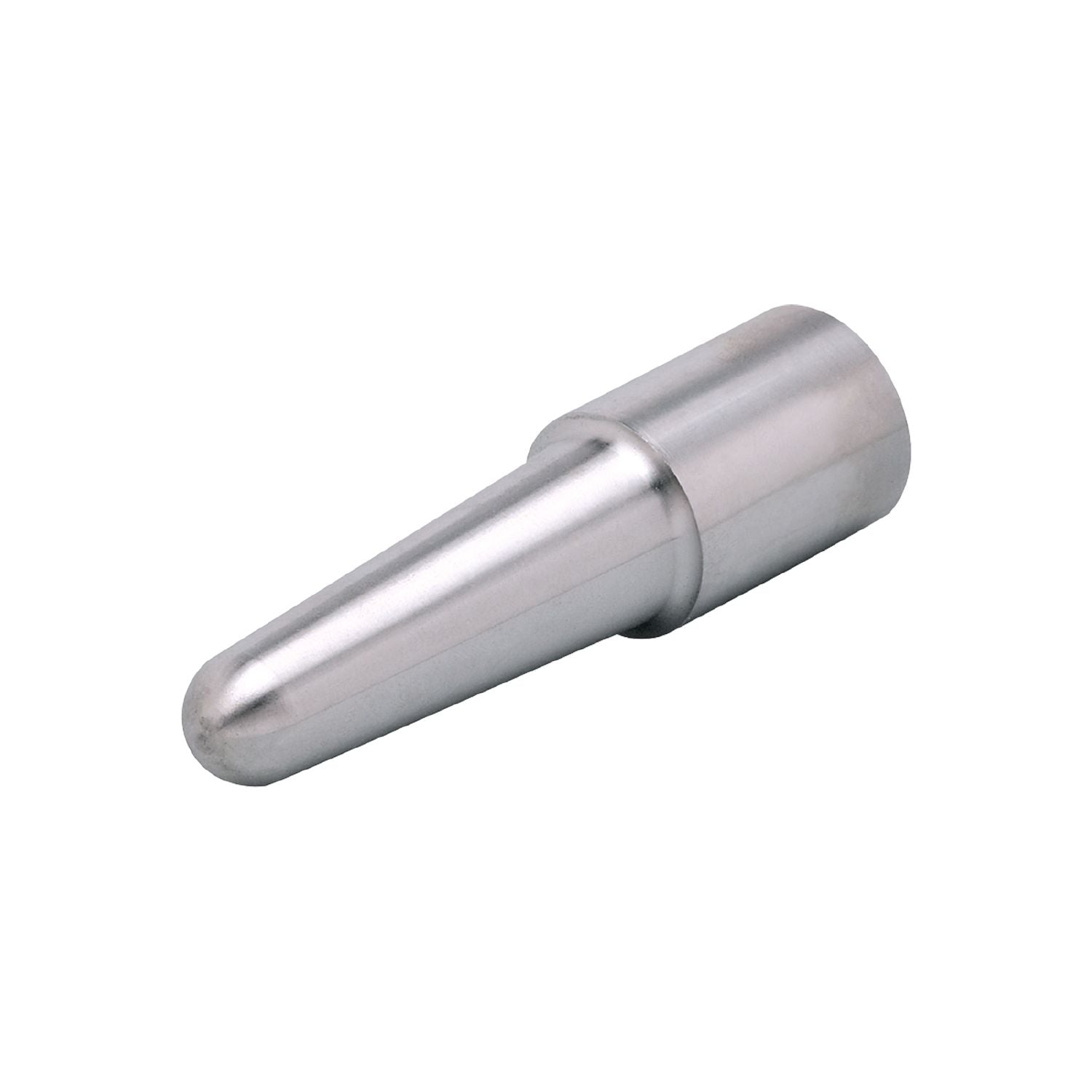

IFM E35210 - Welding thermowell for temperature sensors WELDING THERMOWELL G1/2

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
High pressure rating.
Robust stainless steel housing for the requirements of harsh industrial environments

Design	for temperature sensors EL = 100 mm
Pressure rating [bar]	100

Measuring/setting range

Probe length L [mm]	73

Weight [g]	315.7
Dimensions [mm]	Ø 10
Materials	stainless steel (1.4571/316Ti )
Sensor connection	G 1/2
Process connection	welding adapter Ø 30 mm
Surface characteristics Ra/Rz of the wetted parts	< 0.6 / -

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E35210-00 — 06.03.2003 —
