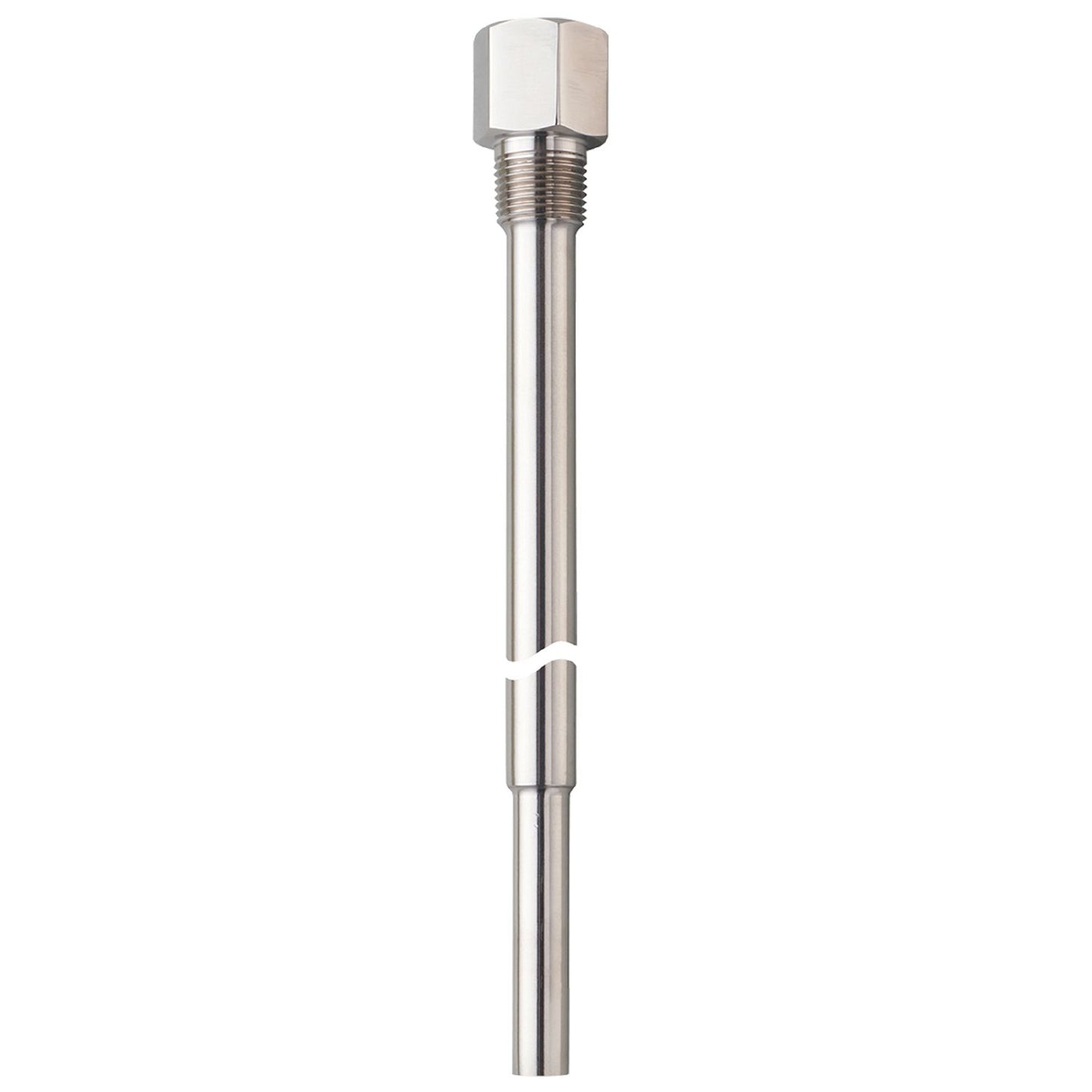

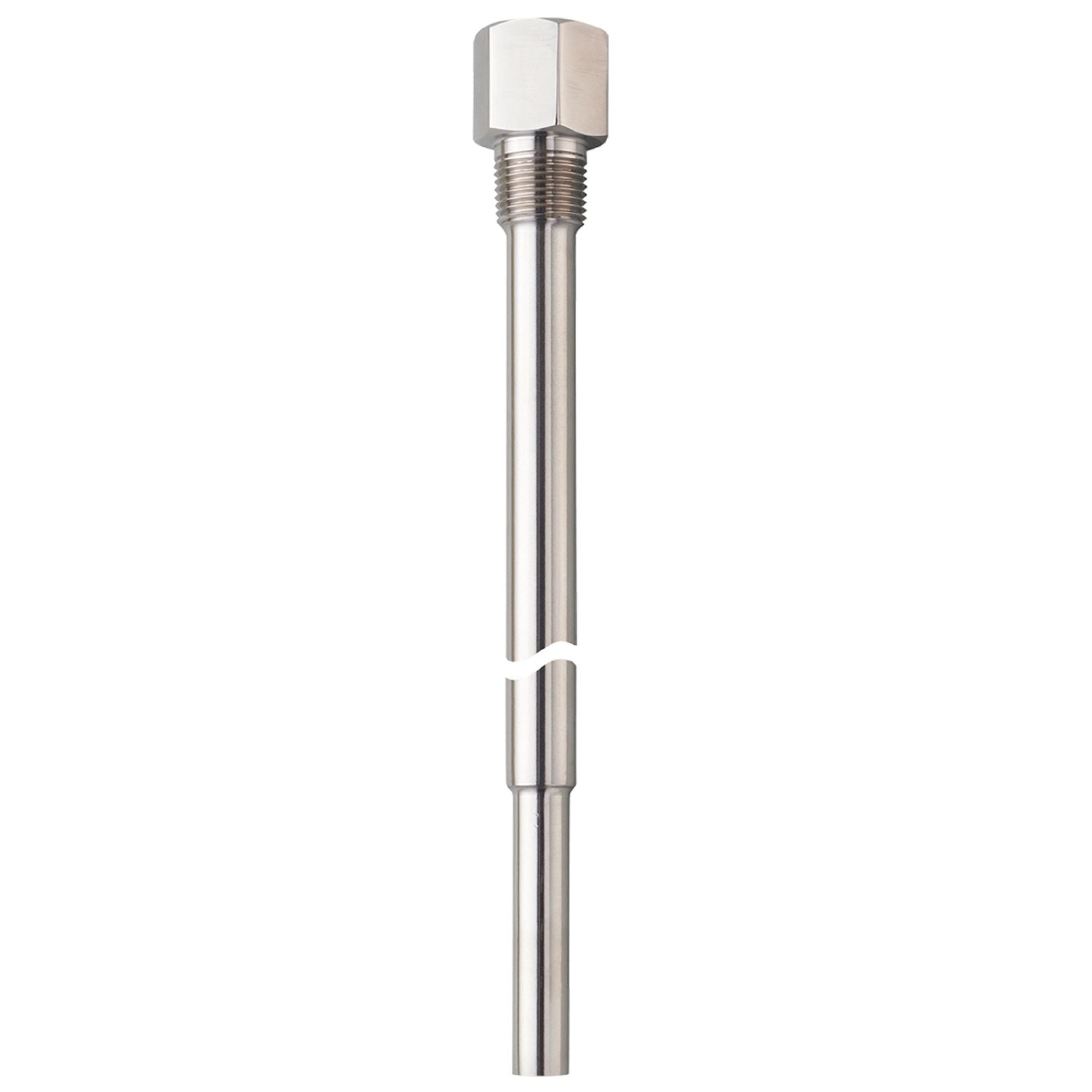

IFM E37210 - Thermowell for temperature sensors THERMOWELL, D6/1/2"NPT/L=100

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
Particularly high pressure rating.
Simple process connection via adapter.
Robust stainless steel housing for the requirements of harsh industrial environments

Design	for temperature sensors EL = 100 mm
Pressure rating [bar]	400

Accuracy / deviations

Max. permissible flow velocity [m/s]	45

Weight [g]	180.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT
Process connection	1/2" NPT
Installation length EL [mm]	74
Bore length BL [mm]	101.6

Pack quantity	1 pcs.
