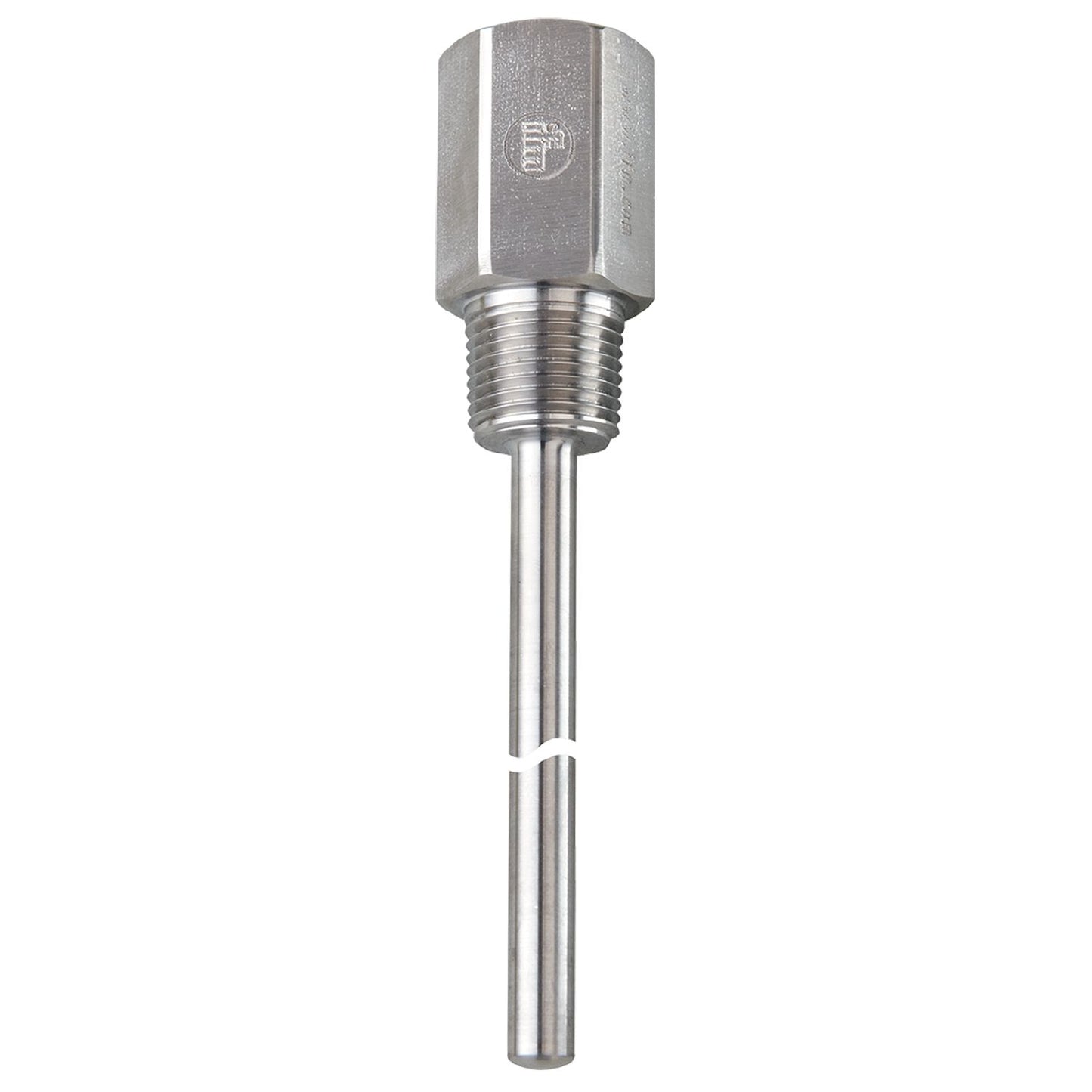

IFM E37221 - Thermowell for temperature sensors THERMOWELL, D6/ 1/2 NPT/L=150

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
High pressure rating.
Simple process connection via adapter.
Robust stainless steel housing for the requirements of harsh industrial environments

Design	for temperature sensors EL = 150 mm
Pressure rating [bar]	16

Weight [g]	175
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1/2 sealing cone Ø 6 mm
Process connection	1/2" NPT
Installation length EL [mm]	144
Bore length BL [mm]	187

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37221-00 — 18.09.2014 —
