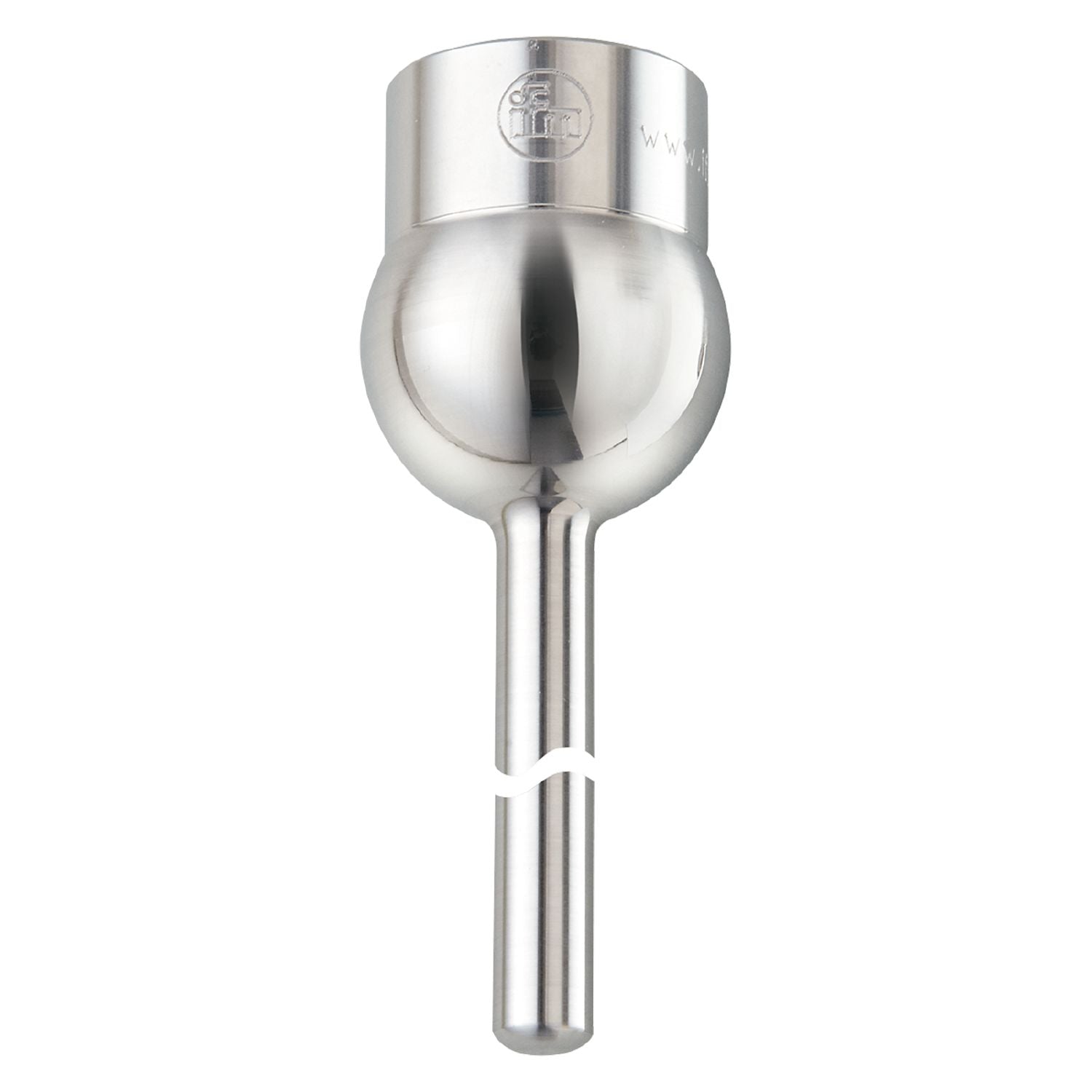

IFM E37411 - Welding thermowell for temperature sensors THERMOWELL,D6/WELD-IN/G1/2 conical/L=50

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
Particularly high pressure rating.
Hygienic design for the requirements of the food and beverage industry.
Robust stainless steel housing for use in harsh industrial environments

Design	for temperature sensors EL = 50 mm
Pressure rating [bar]	300

Weight [g]	159.3
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1/2 sealing cone Ø 6 mm
Process connection	welding adapter Ø 34 mm
Surface characteristics Ra/Rz of the wetted parts	≤ 0.6 / -
Installation length EL [mm]	49
Bore length BL [mm]	87

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37411-00 — 16.09.2014 —
