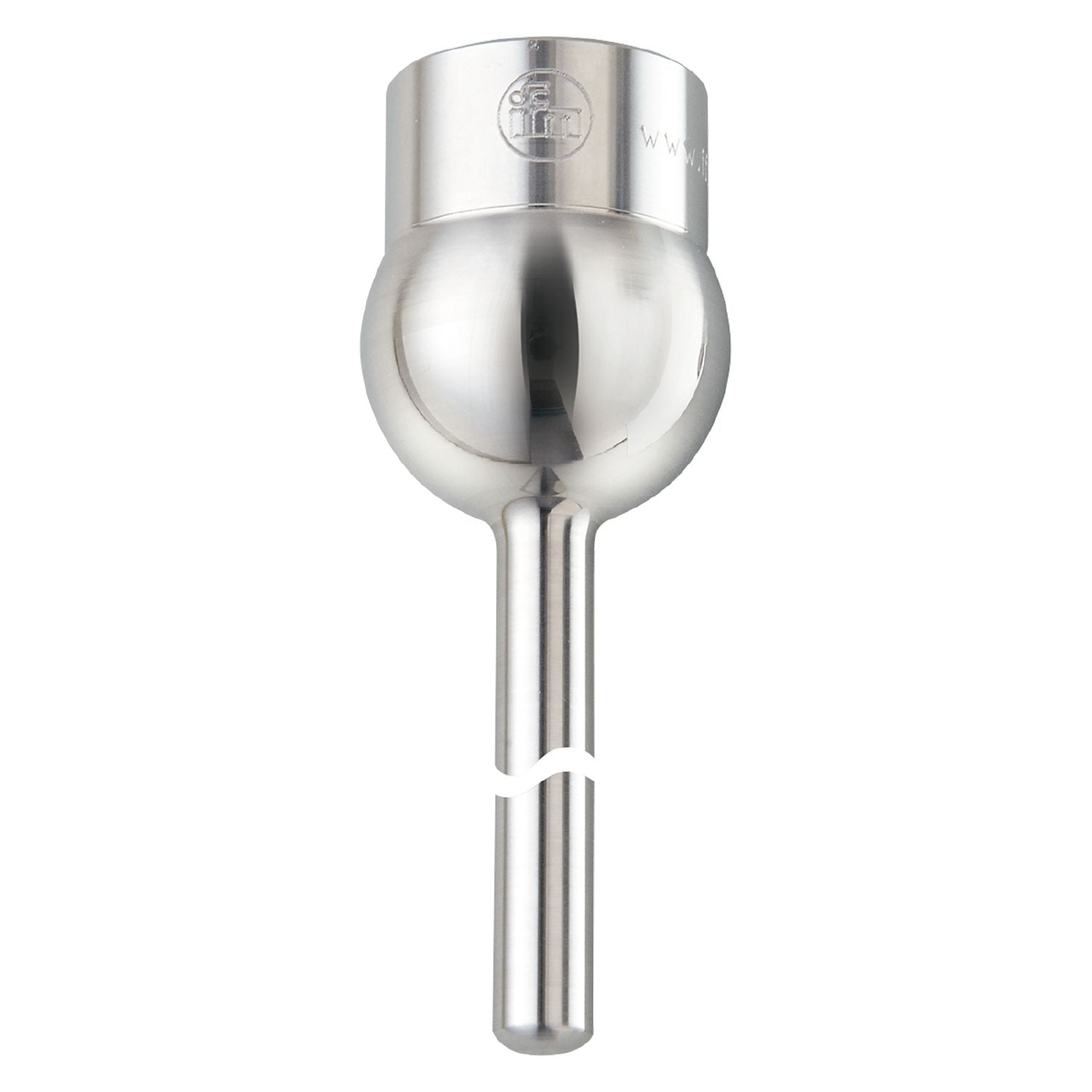

IFM E37421 - Welding thermowell for temperature sensors THERMOWELL,D6/WELD-IN/G1/2 conical/L=100

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
Particularly high pressure rating.
Hygienic design for the requirements of the food and beverage industry.
Robust stainless steel housing for use in harsh industrial environments

Design	for temperature sensors EL = 100 mm
Pressure rating [bar]	300

Weight [g]	171.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1/2 sealing cone Ø 6 mm
Process connection	welding adapter Ø 34 mm
Surface characteristics Ra/Rz of the wetted parts	≤ 0.6 / -
Installation length EL [mm]	99
Bore length BL [mm]	137

Pack quantity	1 pcs.
