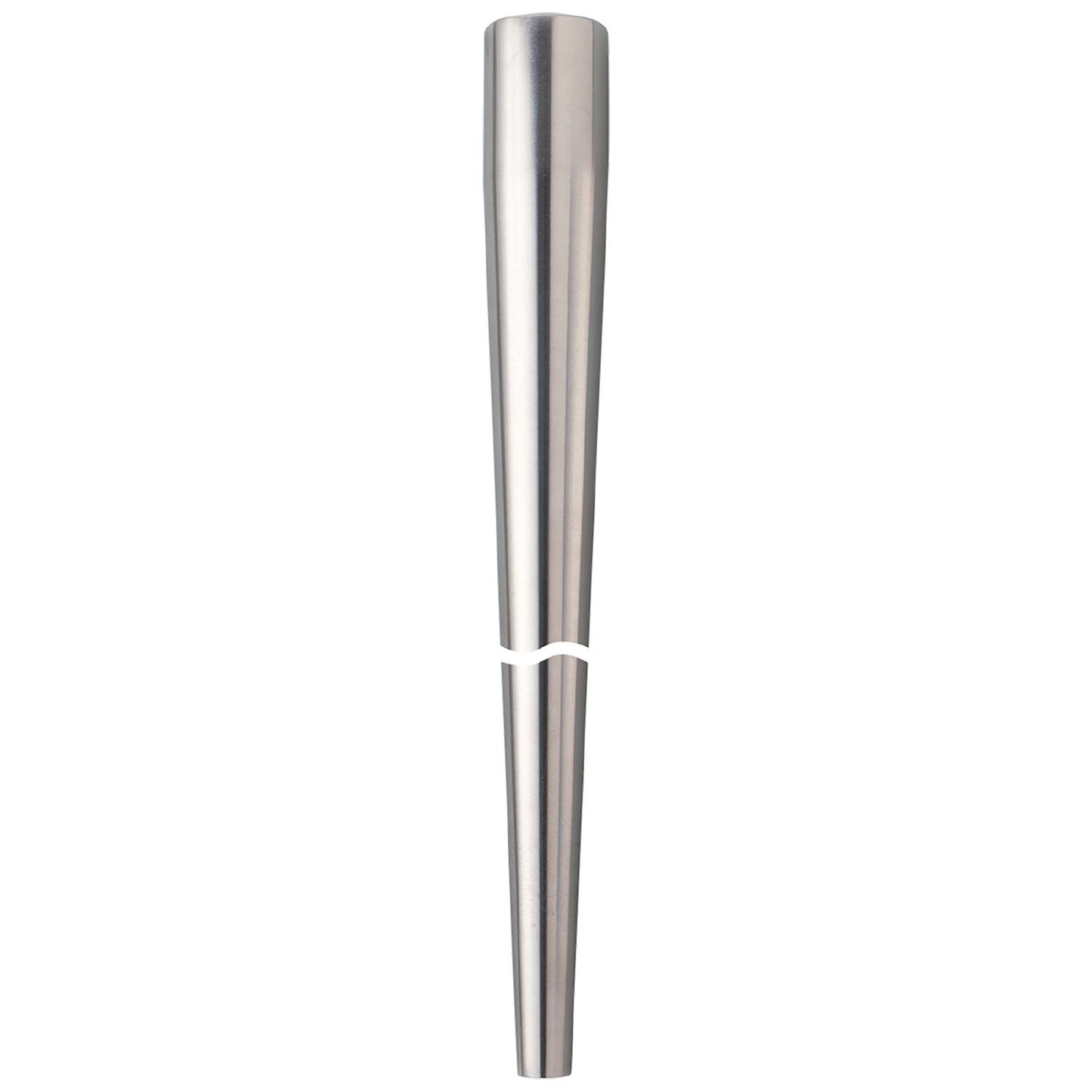

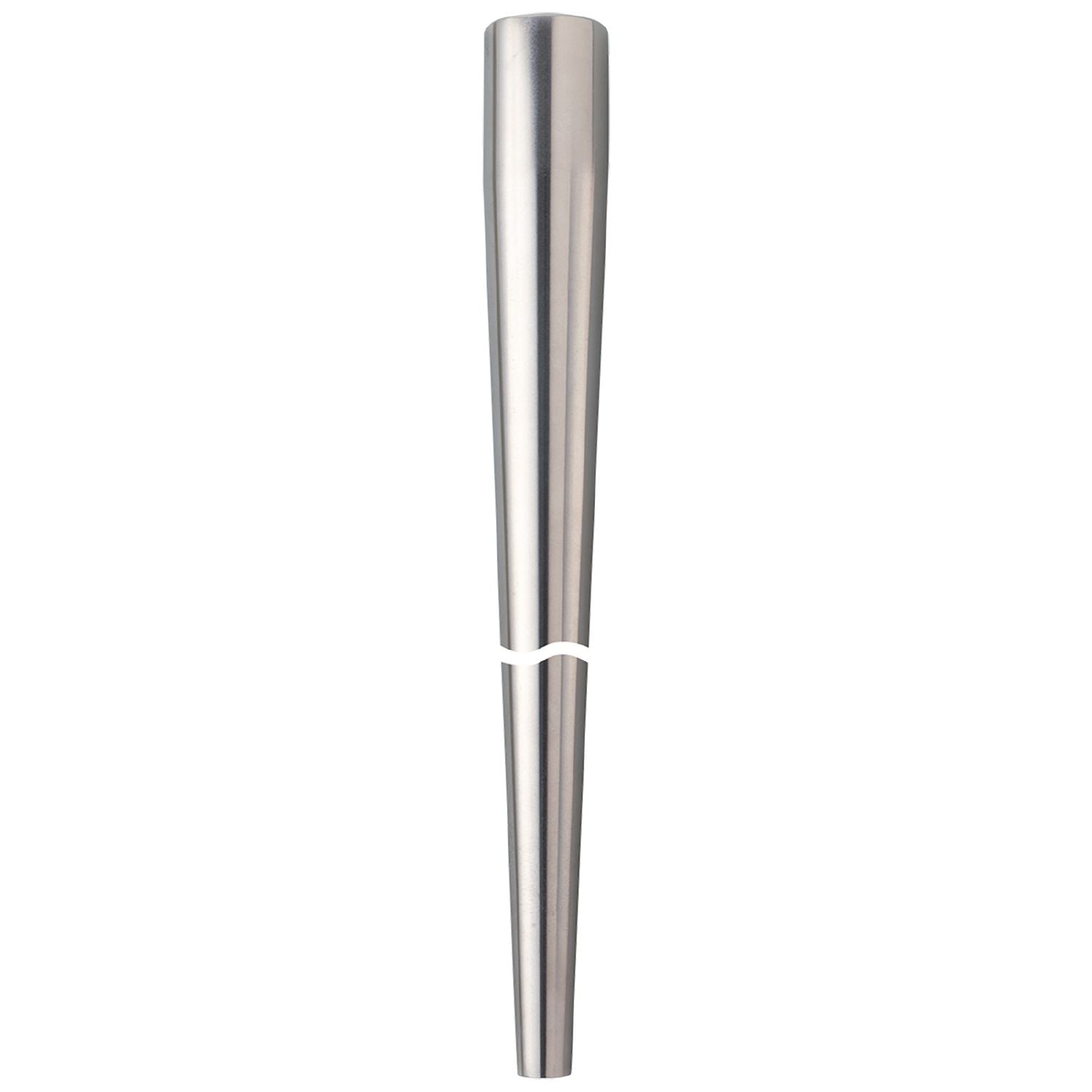

IFM E37430 - Welding thermowell for temperature sensors THERMOWELL, D6/WELD-IN/L=230

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
Particularly high pressure rating.
Hygienic design for the requirements of the food and beverage industry.
Robust stainless steel housing for use in harsh industrial environments

Design	for temperature sensors EL = 300 mm
Pressure rating [bar]	400

Accuracy / deviations

Max. permissible flow velocity [m/s]	25

Weight [g]	1236
Materials	stainless steel (1.4404 / 316L)
Sensor connection	1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT
Process connection	welding adapter Ø 38,1 mm
Installation length EL [mm]	191
Bore length BL [mm]	228.6

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37430-00 — 16.09.2014 —
